Preventing Electricity-stolen Type Single Phase Meter Box Series

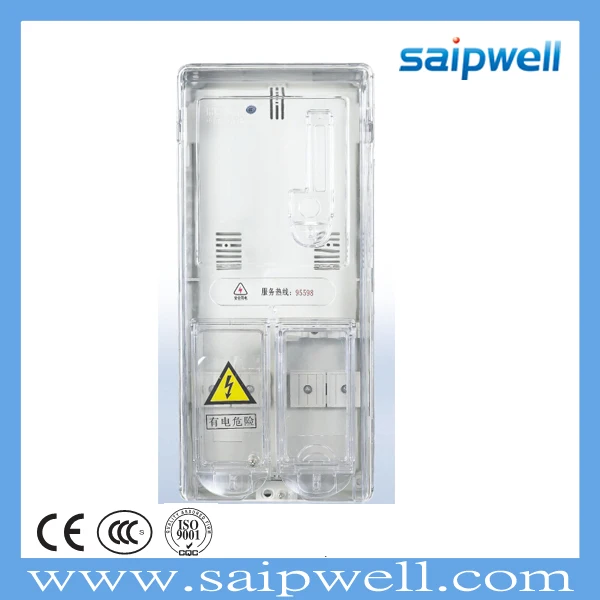

SAIP/SAIPWELL ABS/PC Pre-paid Waterproof Electricity Meter Box
Working conditions of Electricity Meter Box
- Environmental temperature:-40~80(°C).The temperature can not increase 35°C in 24 hours.
- Clean air.The relative humidity is no more than 80% when 40 °C ,and higher relative humidity is approved when having low temperature.
- Above sea level:<=2000meter
- Maximum wind speed:35m/s
- Seismic intensity :7 degrees,horizontal acceleration:0.2g
- Normal acceleration:0.1g
- Gradation for surface pollution:three-level
ABS/PC Technical Function
SAIP/SAIPWELL ABS/PC Pre-paid Waterproof Electricity Meter Box
| item | unit | condition | SMC standard value | DMC standard value |
| density | kg/m3 | >=1.80 | >=1.80 | |
| hydrophilism | % | <=1.20 | <=0.20 | |
| Molding shrinkage | % | <=0.15 | <=-0.03 | |
| distortion temperature | °C | 240 | 240 | |
| bending strength | MPA | >=145 | >=155 | |
| impact strength | KJ/m2 | free beam, Unnotched | 70 | 70 |
| insulation resistance | Ω | soaking 24h | >=1.0*1012 | >=1.0*1012 |
| electrical strength | KV/mm | 90 °C oil | <=45>=20 | >=20 |
| Arc Resistance | S | batch-type | >=180 | >=180 |
| dielectric dissipation factor | 1 MHz | <=0.02 | <=0.01 | |
| Leakage resistance index | V | PTI | >=600 | >=600 |
| combustibility | level | FV | Not inferior to HB | Not inferior to HB |
| levels of protection | >=IP40 | >=IP40 |
SAIP/SAIPWELL ABS/PC Pre-paid Waterproof Electricity Meter Box
The main technical parameters of Electricity Meter Box
1.Main busbar rated current: 1-315A
2.Main busbar rated short time withstand current:30KWA
3.Insulation resistance:No less than 20Ω
4.Nominal insulation voltage:800V
5.Electrical strength:When applied voltage of 50hz2000v for one miniter,there should not be a phenomenon of flash-over and breakdown of lightning.
6.Acid-proof alkaline:dribble 1ml acid-base solution of concentration 3 percent onto the surface of the box body,clean away an hour later,there is no crack and no delamination.
7.Anti press properties:When put 100kg heavy on the any position of the box,after 3 miniters,there is no cracking and damage
8.Voltage and frequency:220V/380V,50Hz
9.Levels of protection:43
10.Flame retardancy:FV-0degree,flame temperature is no less than 650°C.

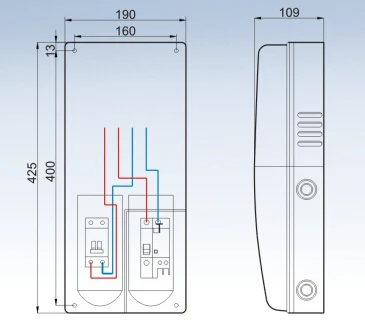

Mounting dimensions of Electricity Meter Box
SAIP/SAIPWELL ABS/PC Pre-paid Waterproof Electricity Meter Box
Major Dispositions(for reference only)
1.This scheme is just as a sample,Other specifications can be customized.
2.You can install disconnecting switch,small circuit brea,single-phase wiring terminal,leakage protector, branch terminal and other equipments.
3.The meter box is the same with copper line and aluminium wire of less than 16mm2.
