SP-56 series industrial plug socket 380v 16a 56SO315 IP66 250V 3 Pin 15A Industrial plug and socket
SP-56SO Series 110-250V Socket Outlets feature a patented transparent hinged flap which snaps shut and locks over the socket when the plug is withdrawn, forming an automatic IP66 seal. The flap is transparent so the pin configuration can be readily identified without opening.
Introduction:
SP-56 series industrial plug socket 380v 16a 56SO315 IP66 250V 3 Pin 15A Industrial plug and socket
Description:
Single phase 3 flat pin, 250v, 50Hz socket, IP66 rated, available in standard grey or orange 10A, 13A and 15A
Protection class: IP66 rated
Current: 10A, 13A, 15A
Max voltage: 250VAC
Phase: Single phase
Material: PC
Product code: 56SO310/56SO313/56SO315
Certificates: SAA, IQNET, CQC
Other protections: waterproof, UV resistance, Dust-proof, Anti-corrosion, Pollution proof.
Package: inner color box, outside standard carton. 54.5*23.5*45cm/carton, 40Pcs/carton. 1Pcs/box, 40boxes/carton.
High impact PC contruction are suitable for exterior severe condition, UV resistance, IP65 high grade waterproof is ideal and safely used in wherever dirt and moisture proofing is required.

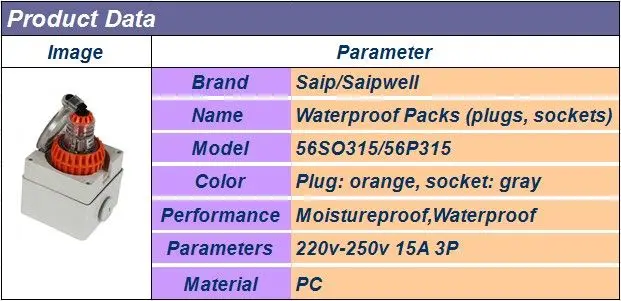

Data
SP-56 series industrial plug socket 380v 16a 56SO315 IP66 250V 3 Pin 15A Industrial plug and socket
| model | carton size/cm | QTY/carton | Description | IP Grade |
| 56SO310 | 54.5*23.5*45 | 40 | single phase 3 pin flat 10A | IP66 |
| 56SO315 | 54.5*23.5*45 | 40 | single phase 3 pin flat 15A | IP66 |
| 56SO410 | 54.5*23.5*45 | 40 | three phase 4 round pin 10A | IP66 |
| 56SO420 | 54.5*23.5*45 | 40 | three phase 4 round pin 20A | IP66 |
| 56SO432 | 54.5*23.5*45 | 40 | three phase 4 round pin 32A | IP66 |
| 56SO440 | 54.5*23.5*45 | 40 | three phase 4 round pin 40A | IP66 |
| 56SO450 | 54.5*23.5*45 | 40 | three phase 4 round pin 50A | IP66 |
| 56SO510 | 54.5*23.5*45 | 40 | three phase 5 round pin 10A | IP66 |
| 56SO520 | 54.5*23.5*45 | 40 | three phase 5 round pin 20A | IP66 |
| 56SO532 | 54.5*23.5*45 | 40 | three phase 5 round pin 32A | IP66 |
| 56SO540 | 54.5*23.5*45 | 40 | three phase 5 round pin 40A | IP66 |
| 56SO550 | 54.5*23.5*45 | 40 | three phase 5 round pin 50A | IP66 |
| 56SO320R | 54.5*23.5*45 | 40 | three phase 3 round pin 20A | IP66 |
| 56SO332 | 54.5*23.5*45 | 40 | three phase 3 round pin 32A | IP66 |

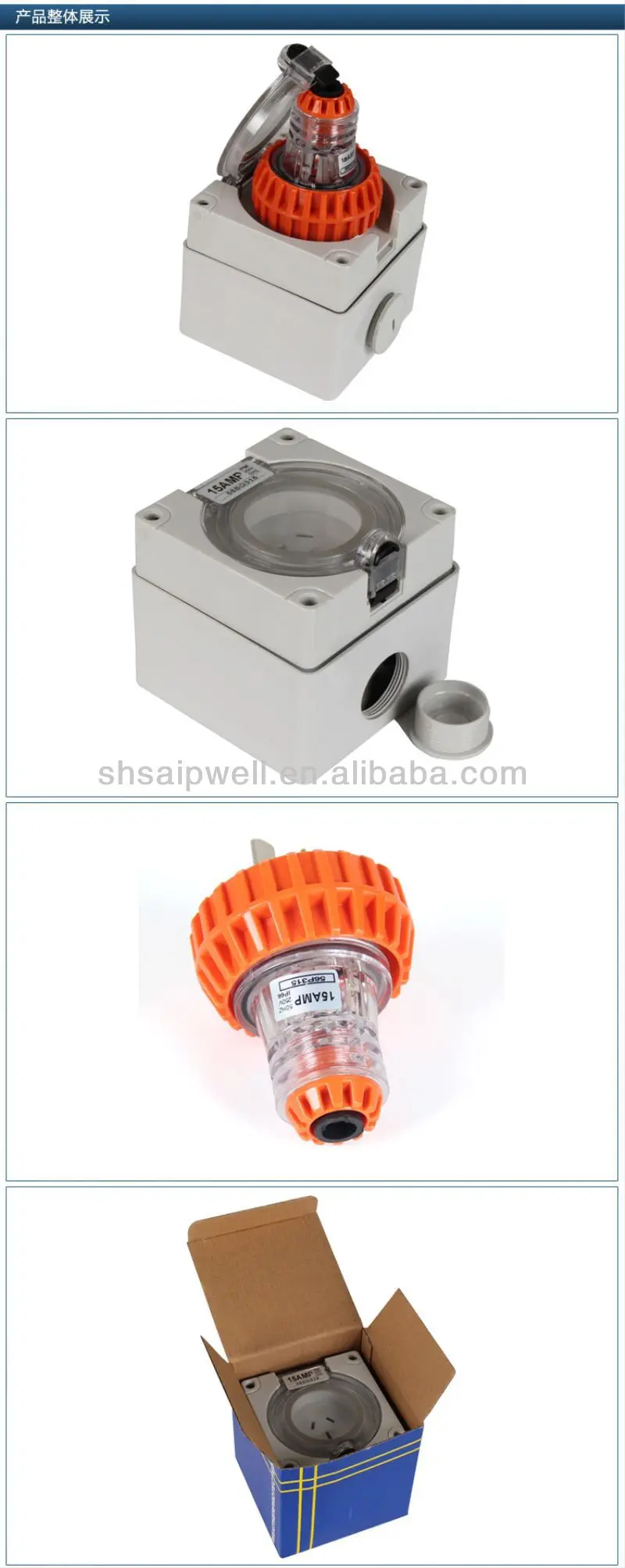

Product Show:
