2013 Most popular waterproof floor box IP66
Features
2013 Most popular waterproof floor box IP66
waterproof electrical junction boxes,waterproof junction boxes,waterproof boxes,waterproof box,floor mounted,electric box,distribution box, distribution box,mcb type metal distribution box,waterproof electrical boxes ip65,sheet metal fine blanking,sheet metal folding fabrication,waterproof junction box,cable junction box,electrical junction box
Technical Data
Model: DS-AG-0811-S
Range: Junction box
Color: Gray box body
Function : waterproof
Outside Size: 80*1110*45mm
Material: ABS/PC
About our products
2013 Most popular waterproof floor box IP66
1.The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion,carries superior insulation.
2.The Product has passed waterproof and dustproof carried out under rigid quality standards.(IP 66)
3.The use is also convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal , Relay and Sensor ,Communication and joint Box etc.
4.High quality waterproof box series, new imported materials , no recycled material.Good strength. Can do transparent and opaque or PC material , with corresponding backplate for choice.
Use :Indoor and outdoor electrical , Communicate and fire equipment, Ironmaking & Steelmaking , Stone oil chemical, electronic plants......
Better material: High quality thermoplastic ABS or polycarbonate (PC) or choose materials that subject to customers" preferance.( No corrosive, antistatic, better insulation )
Thickness of the box: the thinnest part has an average thickness of 3 mm
Identification: CE ,IP66
Installment: Inner install and outer install
Access hole: the position and size of holes can be processed according to the customers" requests;we have assorted waterproof joints, terminal blocks and mounting base plates for your referrence.
Humanized design
Other product details
- Honeycomb baseboard: Fixed in the bottom,easier to install terminal box and other instruments
- Hinge parts: imade by ndustrial plastic PC,more elegant and flexible
- The movable bracket: We"ve designed ovetail groove from inside to the outside of the four corners
- Erection column:with the spin nut type, better fixed guide rail terminal box and wiring board
2013 Most popular waterproof floor box IP66

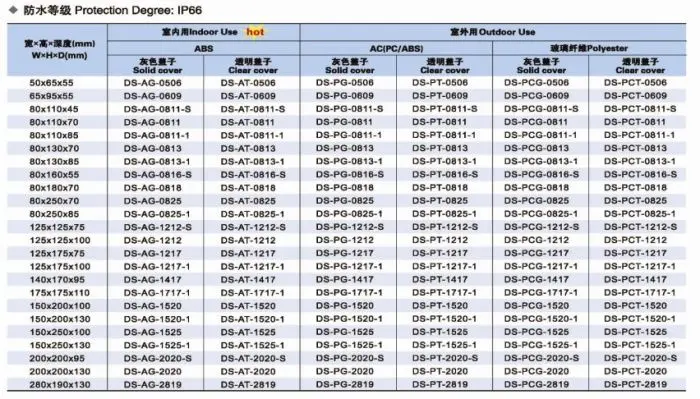

Our box size:
2013 Most popular waterproof floor box IP66
| SIZE ( mm ) | Model (Gray cover) | Model(Clear cover) |
| 55x65x55 | DS-AG-0506 | DS-AT-0506 |
| 65x95x55 | DS-AG-0609 | DS-AT-0609 |
| 80x110x45 | DS-AG-0811-S | DS-AT-0811-S |
| 80x110x70 | DS-AG- 0811 | DS-AT- 0811 |
| 80x110x85 | DS-AG- 0811-1 | DS-AT- 0811-1 |
| 80x130x70 | DS-AG- 0813 | DS-AT- 0813 |
| 82x130x85 | DS-AG- 0813-1 | DS-AT- 0813-1 |
| 80x160x55 | DS-AG- 0816-S | DS-AT- 0816-S |
| 80x180x70 | DS-AG- 0818 | DS-AT- 0818 |
| 80x250x70 | DS-AG- 0825 | DS-AT- 0825 |
| 80x250x85 | DS-AG- 0825-1 | DS-AT- 0825-1 |
| 100x100x75 | DS-AG- 1010 | DS-AT- 1010 |
| 125x125x75 | DS-AG- 1212-S | DS-AT- 1212-S |
| 125x125x100 | DS-AG- 1212 | DS-AT- 1212 |
| 125x175x75 | DS-AG- 1217 | DS-AT- 1217 |
| 125x175x100 | DS-AG- 1217-1 | DS-AT- 1217-1 |
| 140x170x95 | DS-AG- 1417 | DS-AT- 1417 |
| 175x175x110 | DS-AG- 1717-1 | DS-AT- 1717-1 |
| 150x200x100 | DS-AG- 1520 | DS-AT- 1520 |
| 150x200x130 | DS-AG- 1520-1 | DS-AT- 1520-1 |
| 150x250x100 | DS-AG- 1525 | DS-AT- 1525 |
| 150x250x130 | DS-AG- 1525-1 | DS-AT- 1525-1 |
| 200x200x95 | DS-AG- 2020-S | DS-AT- 2020-S |
| 200x200x130 | DS-AG- 2020 | DS-AT- 2020 |
| 280x190x130 | DS-AG- 2819 | DS-AT- 2819 |
Our advantages
2013 Most popular waterproof floor box IP66
Elegante apperance: Integrating industrial and art combined in a body, suitable for high level equipments
Accessories are complete: can meet your best demand
High protection: Waterproof .dustproof .acid corrosion .completely insulation completely solve the use of special occasions
Widely scope of application: Apply to indoor ,outdoor,electronic communication,fire equipment,control board, terminal BOX, PCB BOX shipping,oil chemical, large factories,discharge terminal equipment and coastal factory
