| SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter |
| High efficiency,reliability,stability for Off Grid Inverter |
| Good heat-dissipation,low noise.Customer orientid service.Flexible design,easy to customize. |
| Innovation & smart monitoring.Convenient operation.Easy to install |

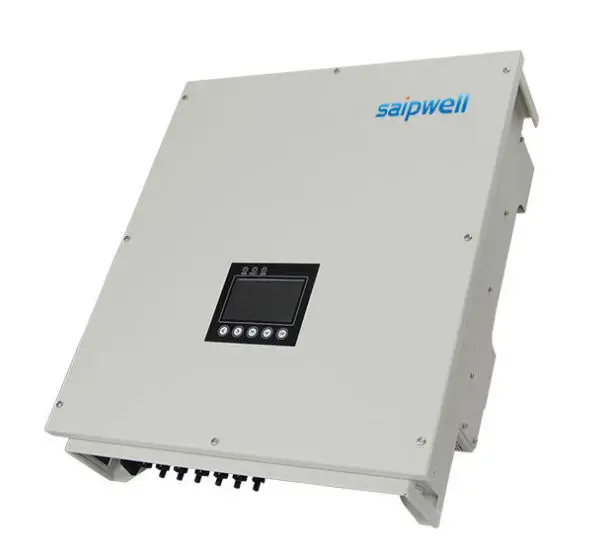

SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
1.Max.Efficiency 98.2%,Euro.Efficiency 97.8%.
2.Double MPPT accuracy up to 99.9%.
3.IP65 design,work properly under severe outdoor circumstances.
4.Full solution of safety protection,DC switch integrated.
5.Flexible input and output connections,support RS485,Ethernet and USB communication.
6.Transformerless design and high power density,lighter and more convenient for installation.

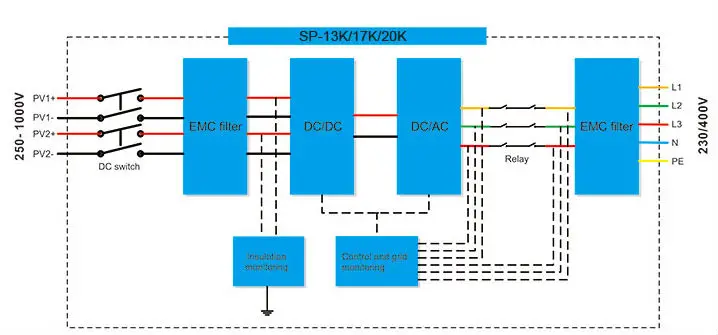

block diagram of Off Grid Inverter
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
| Model | SP-T-20kw |
| Max.DC power | 21200W |
| Max.DC voltage | 1000V |
| MPPT DC voltage range | 440-850VDC |
| Number of MPPT trackers | 2 |
| Nominal output power | 19200W |
| Max.output power | 19200W |
| Nominal output current | 28A per tracker |
| Max.output current | 29A per tracker |
| Nominal AC voltage | 400VAC |
| AC voltage range | 330-480VAC |
| Nominal AC grid frequency | 50HZ |
| AC grid frequency range | 50+-5Hz |
| Power factor | >0.99 |
| Max.efficiency | 97.2% |
| Euro efficiency | 96.4% |
| MPPT efficiency | 99.6% |
| Dimensions(W/D/H) | 575x655x240mm |
| Net Weight | 45KG |
| Operating temperature range | -20-60 |
| Power consumption at night | 0W |
| Electrical isolation | Transformer-less |
| Cooling concept | Fan cooling(IP54 fan ) |
| IP protection type | IP 65 |
| monitoring connection | RS485 |

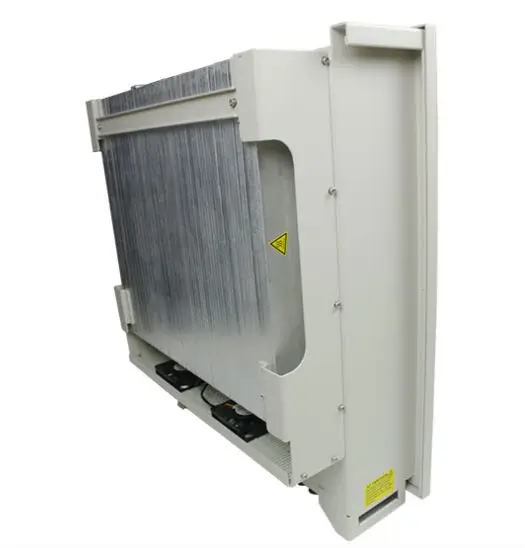

SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter

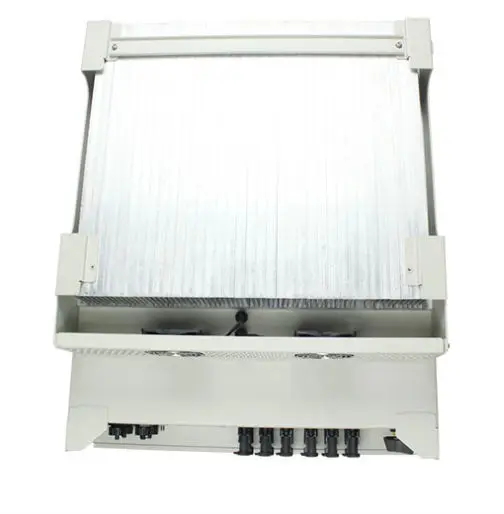

SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
d
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design,
production and sales of electric equipments.Head office located in the largest manufacturing base
of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
We have 5 specialized branches,over 300 specialized cooperative partners.Saip,an ISO9001 certificated enterprise.
With 20 years of development history, Zhejiang Saip Electric Co., Ltd. has become a modern
enterprise integrating the production,sale with research.
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
1,Material,size and other requirements are customized.
2,Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3,Answer your question detailed.
4,Solve the problem with you during using our products.
5,More our products you can visit our website.
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
we can provide you good quality product and best service .we can design the product as your demmand and we also have other type of products for you to choose.
SAIP/SAIPWELL Portable Solar Energy High Frequency Off Grid Inverter
The other more details you also could viste our website (www.saipwell.com) or contact me directly. My Name is Violely Hong , QQ: 1276681154
