D-120A single/dual output switching power supply ,power supply 80W .120W
D-120A single/dual output switching power supply ,power supply 80W .120W
1.Specification
| MODEL | D-120A | D-120B | ||
| DC VOLTAGE | 5V | 12V | 5V | 24V |
| RATED CURRENT | 12A | 5A | 6A | 4A |
| CURRENT RANGE | 2 ~ 12A | 0.5 ~ 5A | 2 ~ 10A | 0.4 ~ 4A |
| RATED POWER | 120W | 126W | ||
| RIPPLE & NOISE (max.) | 60mVp-p | 120mVp-p | 60mVp-p | 150mVp-p |
| VOLTAGE ADJ. RANGE | CH1:4.75 ~ 5.5V | |||
| VOLTAGE TOLERANCE | ±2.0% | ±6.0% | ±2.0% | ±7.0% |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±1.0% |
| LOAD REGULATION | ±0.5% | ±5.0% | ±0.5% | ±6.0% |
| SETUP, RISE, HOLD TIME | 200ms,50ms, 20ms at full load | |||
| VOLTAGE RANGE | 88 ~ 132VAC/176 ~ 264VAC selected by switch 248 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 78% | 80% | ||
| AC CURRENT | 2.8A/115VAC 1.6A/230VAC | |||
| INRUSH CURRENT (max.) | COLD START 35A | |||
| LEAKAGE CURRENT | <3.5mA / 240VAC | |||
| OVERLOAD | 105 ~ 135% rated output power. | |||
| Protection type : Shut down o/p voltage, re-power on to recover. | ||||
| OVER VOLTAGE | CH1:5.75 ~ 6.75VDC | |||
| Protection type : Shut down o/p voltage, re-power on to recover. | ||||
| WORKING TEMP. | -10 ~ +60ºC (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC , 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) on +5V output | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY STANDARDS | Design refer to UL1950, TUV EN60950-1 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | |||
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B | |||
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, Light industry level, criteria A | |||
| MTBF | 272.8K hrs min. MIL-HDBK-217F (25ºC) | |||
| DIMENSION | mm (L*W*H) | |||
| PACKING | 0.768Kg; 16pcs/13.92Kg/0.0287CMB | |||

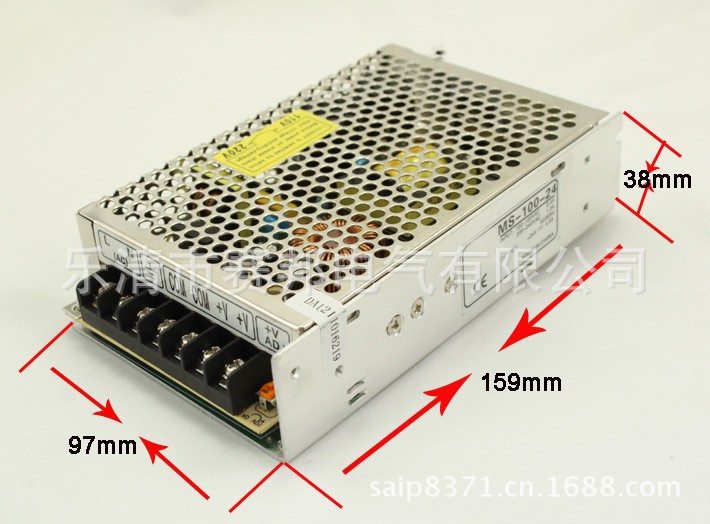

2,Picture
3,Feature:
- Universal AC input selectable by switch
- Protections: SC / OL / OV
- Approvals: UL / CUL / TUV / CB / CE
- Cooling by free air convection
- 100% full load burn-in test
- 2 years warranty
- AC input voltage range: 88 - 132VAC; 176 - 264VDC
- DC adjustment range: CH1: -5~+10% rated output voltage
- Over load protection: 105% - 135% shut off, AC recycle to re-start
- Over voltage protection: CH1: 115% - 135% rated output voltage
- Setup, rise, hold up time: 200ms, 50ms, 20ms at full load and 230VAC
- Withstand voltage: I/P - O/P; 3KVAC, I/P - FG; 1.5KVAC; 1 minute
- Working temperature: 0 - 50°C 100%, -10°C @ 80%, 60°C @ 40% load
- Safety standards: UL1950, TUV EN60950 approved
- EMC standards: EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, ENV50204
- Connection: 8P / 9.5mm pitch terminal block
D-120A single/dual output switching power supply ,power supply 80W .120W
