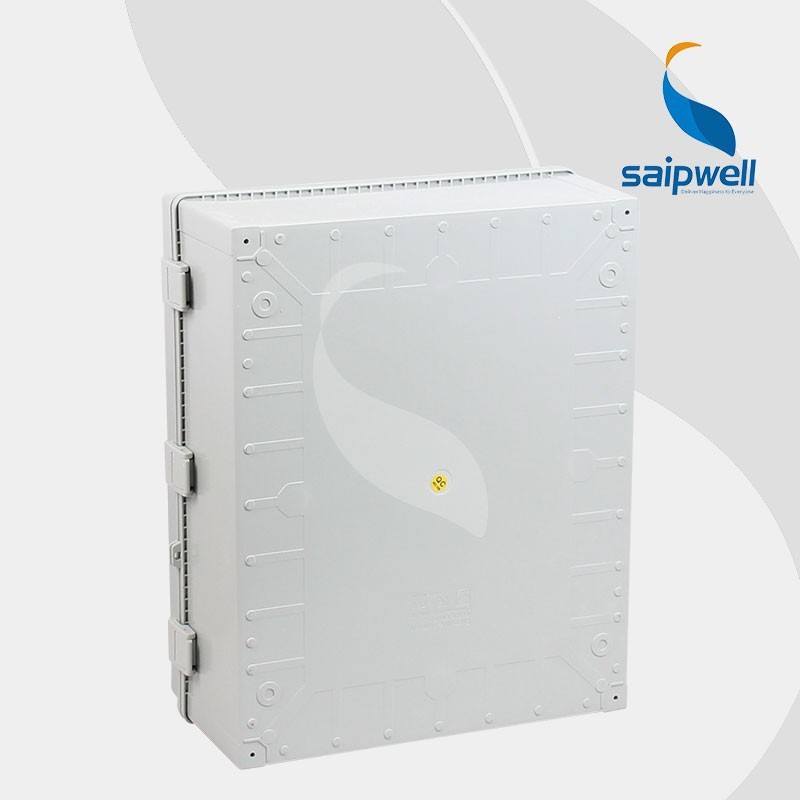

SAIP/SAIPWELL 500*600*190mm Electrical Water PC Enclosure Pump Control Box

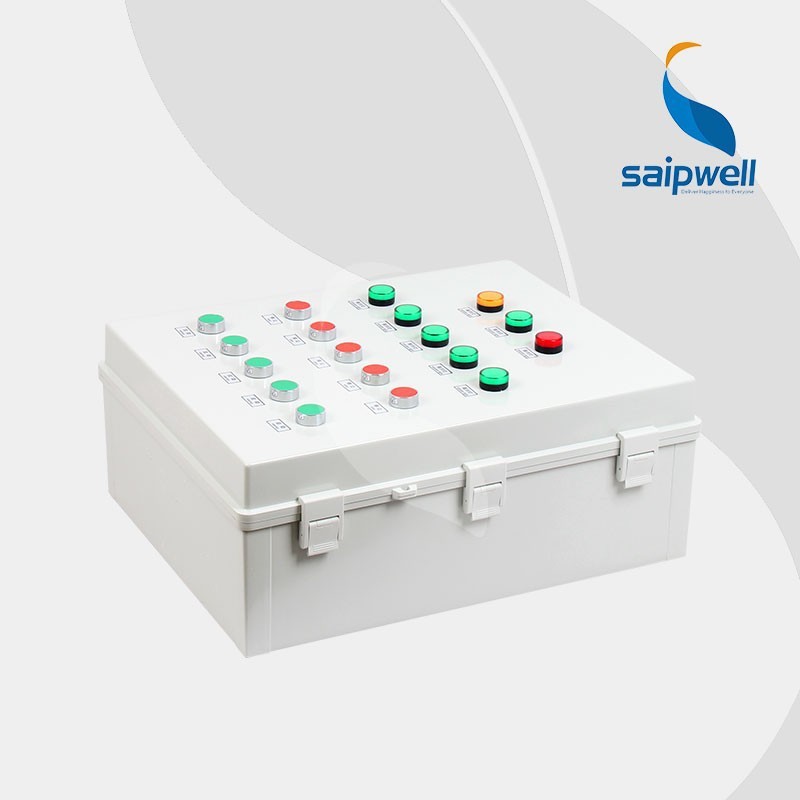

SAIP/SAIPWELL 500*600*190mm PC Enclosure Water Pump Control Box / Push Button Switch Box
Contact block characteristics
Rated operational characteristics | AC-15: A600 or Ue=240V and Ie=3A DC-13: Q600 or Ue=250V and Ie=0.27A conforming to IEC 947-5-1 Appendix A |
Rated insulation voltage | Ui=500V |
Short-circuit protection | 10A cartridge fuse type gG |
Electrical reliability | Failure rate ‹ 1 fault for 1 million operating cycles (programmable controller Inputs, 24Vdc) |
Cabling | Capacity: min.1×0.5mm2, max., with or without cable end: 2×1.5mm2 of 1×2.5mm2 |
1, The enclosure is about 1/4 the weight of a metal box and can be easily installed or moved. The products is free from corrosion, carries superior insulation.
2, The enclosure are available for the installation of terminal substitution rail, buttonbox, small terminal,signal, relay and sensor, communication and joint box
3, It will not be damaged even using for a long time because stainless hinge and draw latch are equipped. It secures perfect airtightness by preventing sink down when opening or closing the sizes of hinge and draw by size increasing of the products. It can be used in inferior or dangerous industrial field byusing strong material and structure.
4, Features: waterproof,dust-free,shock resistance,and rustproof,long lifetime,good insulating property,easy machining.
5, Usage: It is convenient for the general & mechanical usages such as terminal box, measuring equipment box, gauge box, power distribution, control box, etc.
6, Quality is absolutely guaranteed, the wholesale price is reasonable, quantity is with preferential treatment.
7, Payment: T/T in advance, L/C 100% Payment if total amount less than $10,000USD.
8, Shipment: by air/sea or express.
9, Best ODM/OEM service, high quality, fast delivery.
SAIP/SAIPWELL 500*600*190mm PC Enclosure Electrical Control Box
SAIP/SAIPWELL 500*600*190mm PC Enclosure Electrical Control Box
