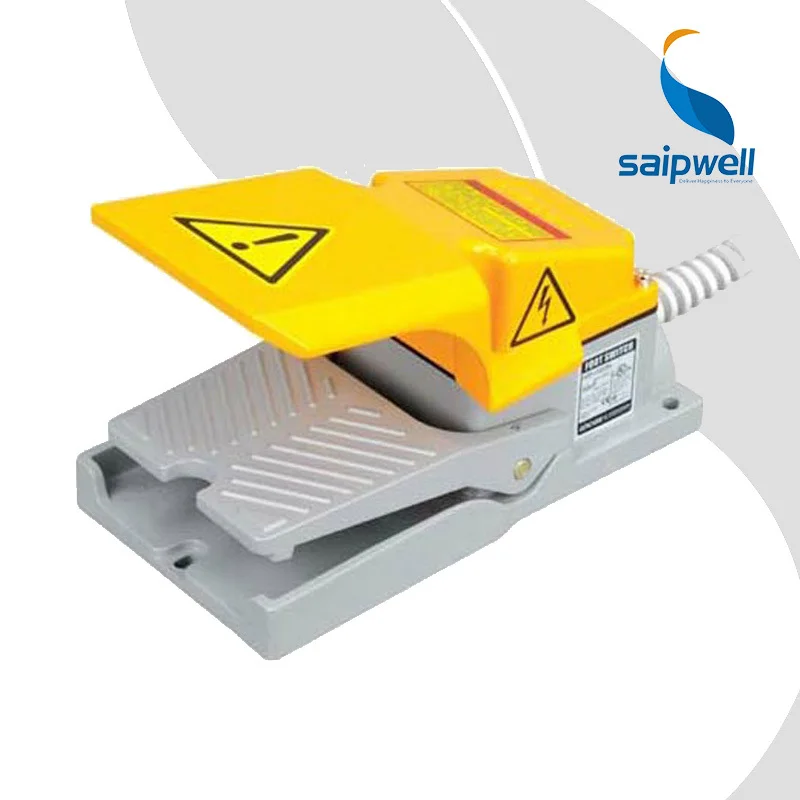

Aluminum electric foot pedal switch for floor lamps 10A 250VAC
Aluminum electric foot pedal switch for floor lamps 10A 250VAC
Item | Specification |
Model Name | HRF-HD3N |
Rating | 10A 250VAC |
Contact | 1C |
Material of Rind | ALUMINUM |
Insulation resistance | ≥100MΩ |
Contact resistance | ≤25mΩ |
Withstand voltage | ≥ 2000VAC |
Electrical life | ≥100,000 times above |
Protection degree | IP54 |
Temperature | -25-75°C |
Humidity | <85% |
Aluminum electric foot pedal switch for floor lamps 10A 250VAC
Aluminum electric foot pedal switch for floor lamps 10A 250VAC
Aluminum electric foot pedal switch for floor lamps 10A 250VAC
Application Attentions:
1.According to the difference of load and current value,rated load should be taken note.Current value of this series is 10A and 15A.
2.When transporting and moving, pls take note of the short circuit or open circuit may happen in internal wiring.
3.Pls take note of the level protection when used in water,oil and bug dust.This series has protective type and unprotective type.
4.The immediate cause for broken is stress and attack,pls pay attention.
5.Warning mark "Danger! High Voltage!" and "Take note!" remind us pay attention to personnel safety and correctly operation.
Aluminum electric foot pedal switch for floor lamps 10A 250VAC
FAQ:
1.Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .We send the samples to you only after receipt of your payment.
2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.
3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you the price list.
4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons for the products,you can send us the artwork by email.
5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
