Description |
Model | NTSL1210W | NTSL1210W-M |
Parameter | ||
Battery Capacity | 12V 7AH lead-acid | |
Solar Panel Power | 12V 10W | |
Input charging voltage | Voltage of solar panel ≤25V / AC charger 15-16V | |
Max. charging current | 2A | 2A |
Rated output voltage | 3A | 3A |
Current value for overload protection | 4A | |
Current value for short circuit protection | 2.2 times of rated current | |
Time for restart | Automatic release after 30S or turn off the power switch directly | |
Output current for USB | 1A | |
Voltage point for over-discharge protection | 1.0V | |
Voltage point for over voltage recovery | 12.6V | |
Voltage for float charge | 13.8V | |
Over voltage value for protection | 15.5V | |
Charging mode | PWM available | |

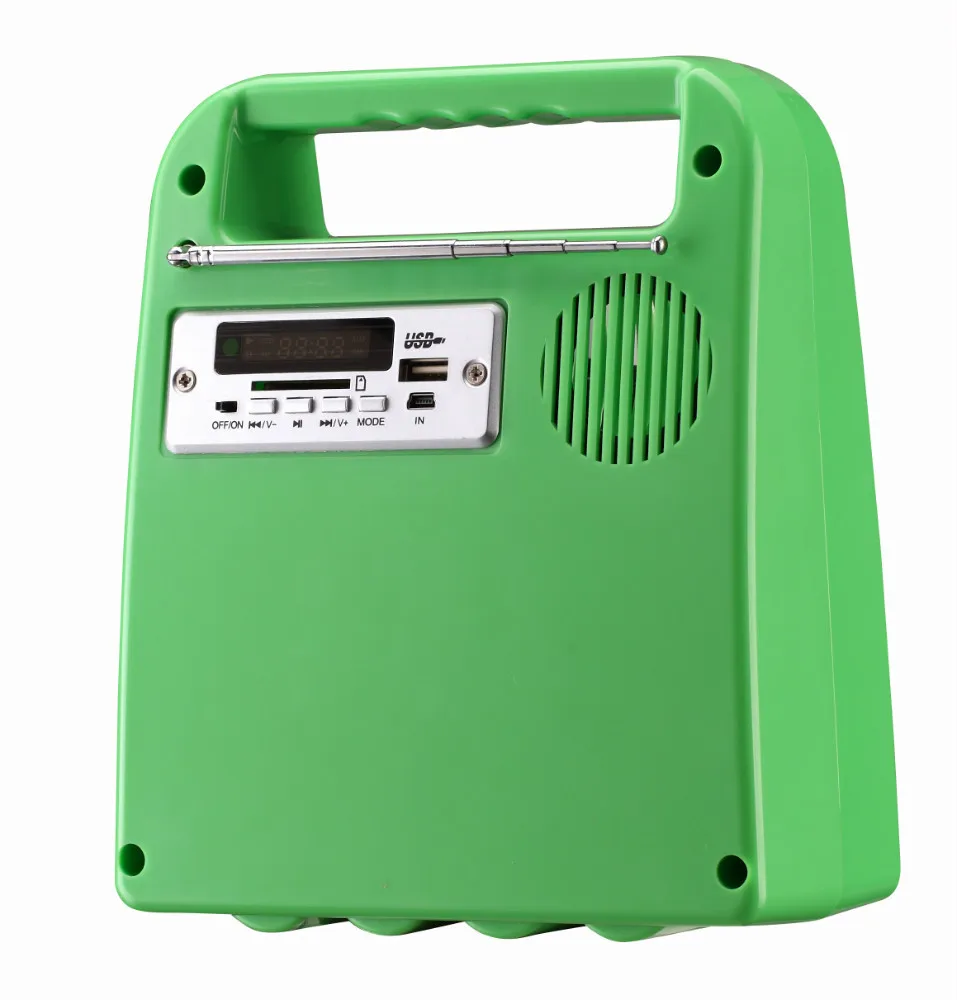

Audio format available | --- | MP3 |
Freguency range of the radio | --- | FM 88 --108 MHZ |
Power of loud speaker | --- | 4Ω --3W |
Input port | --- | SD card, USB |
Working temperature | -25°c -- 60°c | |
Dimension | 180*81*209 mm | |
Net weight | 2.55Kg | |
DC Output | 12V/5V | |

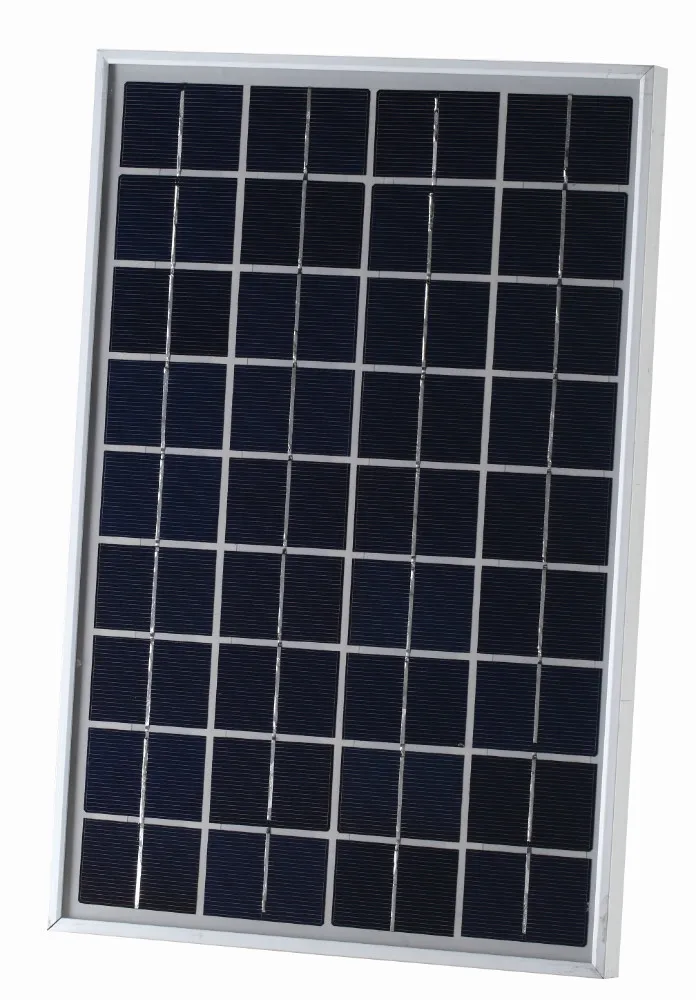

Solar panel | 10W/12V polycrystalline silicon, with 6M cable and foothold |
Battery | 7AH/12V lead-acid |
Bulb | 12V 3W LED bulb x 2pcs |
USB port | 1A/5V x 2pcs, compatible with all 5V USB-charged devices |
AC adaptor | 15V/1A |

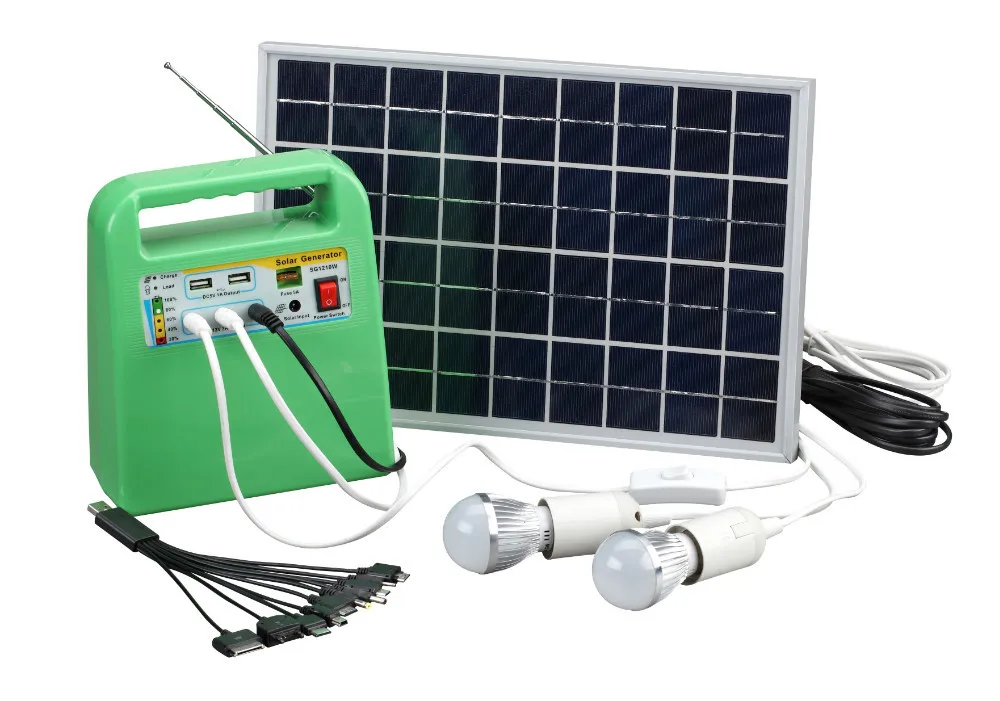

Pictures for your reference |
|

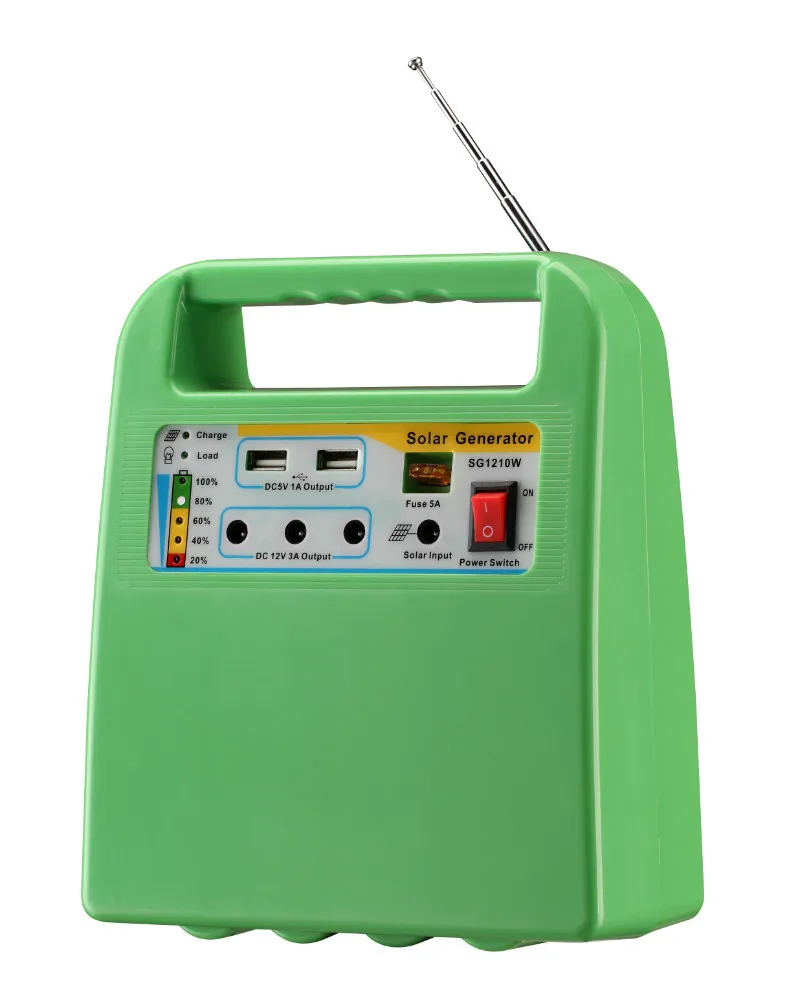

INSTRUCTION: |
1. USB interface: Charging for 5V DC equipment such as Mobile phone, Pad, Digital Camera and so on.
2. Power Fuse: To prevent short circuit of battery, please take out the fuse if long term no use.
3. Power Switch: Control the machine and output of the load.
4. Solar Panel Input: Connected with solar panel and AC charge adapter.
5. DC 12V Output: Connected with 12V LED or others 12V equipment.
6. Capacity: A real-time indicate the capacity of battery
7. Load Indicator: Indicate the working state of load.
8. Charge Indicator: Indicate the charging state of battery
System charging time:
10-12 hours fully charge the battery by solar panel
7-8 hours fully charge the battery by AC adaptor
System lighting time:
1 bulb, 15 hours lighting time after the battery is fully charged
2 bulbs, 8 hours lighting time after the battery is fully charged
2014new LCD 550w solar energy system price
|
CAUTIONS: |
A. When battery is lower than 5%, the green indicator light will turn off and all the output will be cut off. Please charge it in time in this case. B. It is normal that the product might be heated when charging or discharging. The charging time shall not exceed 24 hours. C. No using it when charging otherwise it may damage the components inside. D. Keep it away from fire or over-heat, otherwise it may cause explosions. E. Keep it away from water or moisture since it is not water-proof. F. Do not demolish or assemble it by yourself. G. Avoid direct eye exposure to LED lighting when in use. (Children use the product under guidance of adults) H. Charge it once every 2-3 month. I. Please use it properly according to the instructions. We are not responsible for any improper usage or man-made damage.
|
