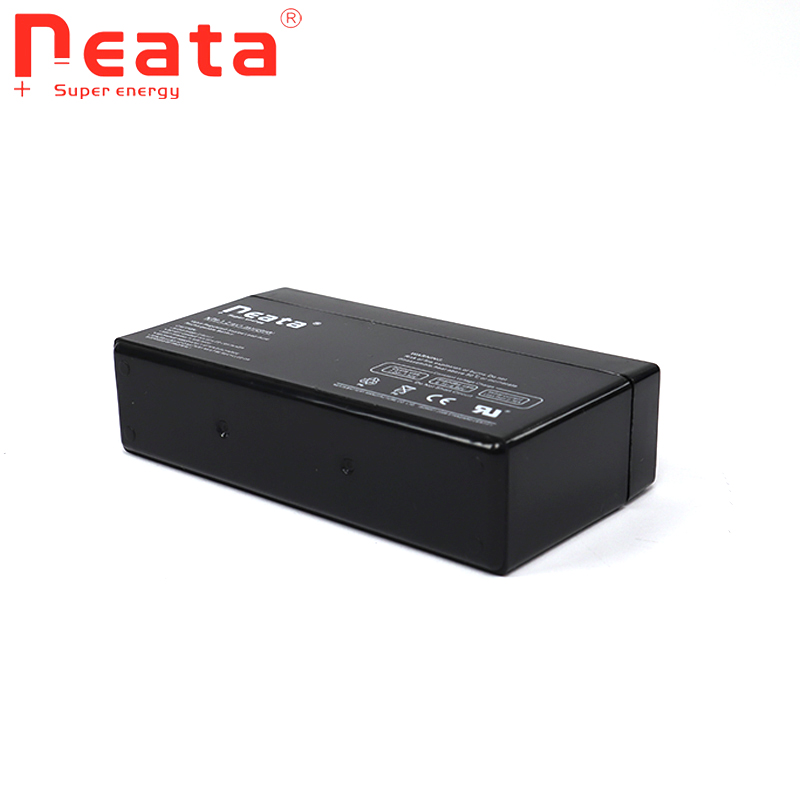

Click on the image to view the original image
Model: 6V 1.5AH
Dimension: 70(L)*47(W)*101(H)*106(TH)mm
Weight: 0.40kg
Norminal Voltage: 6V
Rated Capacity: 1.5AH
Terminal Type: F1
Package: 20pcs/box
Applications
Remote Switching
Control equipments
Communication systems
Portable Lights
Alarm systems Power tools
Medical equipments
Electric toys
Fire and lighting for Emergency systems
Uninterruptible power supplies (UPS)
and stand-by power for computers
Characteristics
Nominal Voltage | 6V | ||
Nominal Capacity (20 hour rate) | 1.5Ah | ||
Capacity 25°C(77°F) | 20 hour rate (0.075A) | 1.5Ah | |
10 hour rate (0.142A) | 1.42Ah | ||
5 hour rate (0.24A) | 1.2Ah | ||
1 hour rate (0.97A) | 0.97Ah | ||
Internal Resistance | Full Charged Battery 25°C(77°F) | ≤99mΩ | |
Cyclic Life | 50%(C20) Depth of discharge | 600Times | |
Float Life | 25°C(77°F) Float charge at 6.9V | About 3 Years | |
Capacity affected by Temperature (20 hour ) | 40°C (104°F) | 102% | |
25°C (77°F) | 100% | ||
0°C (32°F) | 85% | ||
-15°C (5°F) | 65% | ||
Self-Discharge 25°C(77°F) | Capacity after 3 month storage | 90% | |
Capacity after 6 month storage | 80% | ||
Capacity after 12 month storage | 62% | ||
Charge (Constant Voltage) 25°C(77°F) | Cycle | Initial Charging Current Less than 0.45A Voltage 7.30-7.50V | |
Float | Voltage 6.75-6.90V | ||
Battery Construction
Component | Positive plate | Negative plate | Container | Safety valve | Terminal | Separator | Electrolyte |
Raw Material | Lead dioxide | Lead | ABS | Rubber | Copper | Fiberglass | Sulfuric acid |
