with battery emergency light oil mining explosion proof luminaire
1) Two Options: 90 minus emergecny time or without battery.

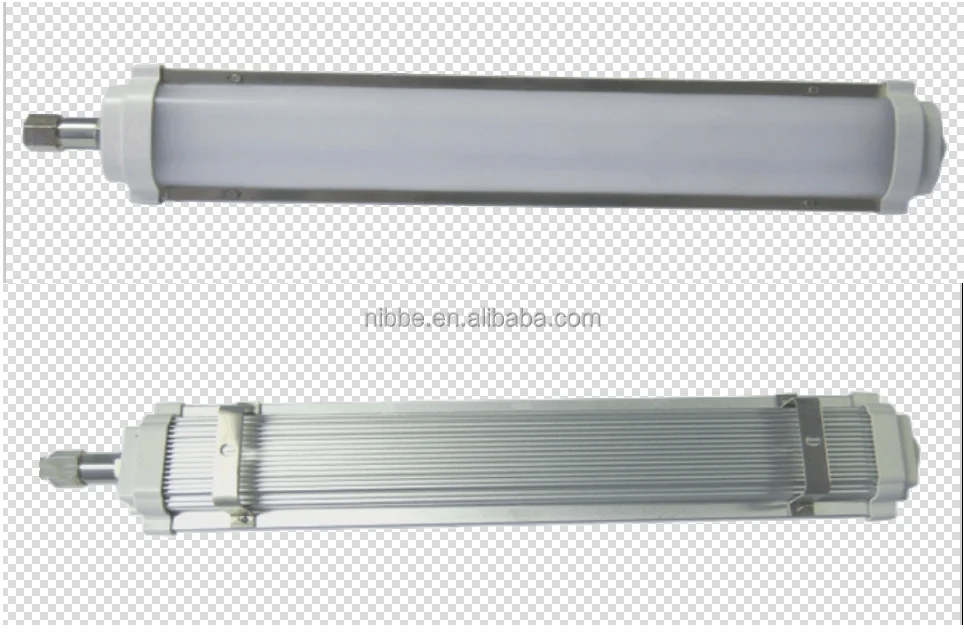

explosion proof led tube:
Application:
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base,etc. Zone I and Zone IIHazardous Locations, Zone 20, Zone 21, Zone 22 and IIA, IIB, IIC explosive gas atmosphere.
Features:
- Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof.
- Adopt single-pin led tube as light source, fit up with one or two led tubes to make low power consumption with high light effect and high brightness. Under the same luminance condition, it saves over 70% power than high pressure mercury lamp, saves 65% power than traditional fluorescent tube, 18w led tube equival to 36w fluorescent tube, 32w led tube equival to 100w high pressure mercury lamp.
- lens made of PC which is thermal resistance,corrosion resistance, high light transmission.
- Smart appearance, several types of installation methods available.
Technical Parameters:
Power Consumption | 20W | 40W | 60W |
Input Voltage | 220V AC(applied for 95-265V) | ||
Frequency | 50Hz/60Hz | ||
Explosion-proof Grade | Ex eIIC T6 | ||
Corrosion-proof Grade | WF2 | ||
IP Grade | IP66 | ||
Light Effect | ≥55lm/W | ||
Beam Angle | 120° | ||
Power Factor | ≥0.90 | ||
Cable Entry | Φ8~Φ10mm | ||
Installation Height | 2~3m | 3~5m | 3~6m |
Illuminance at 3m | 75LX | 100 LX | 130 LX |
Ambient Environment | Temperature:-30°C-55°C;Humidity:10-90%RH(25°C) | ||
Storage Temperature | -40°C-60°C | ||
Lifespan | >50000Hs | ||
Material | Aluminum Alloy&PC | ||
Dimension | L1315*W132*H82mm | ||
Net Weight | 5.5Kg | ||
