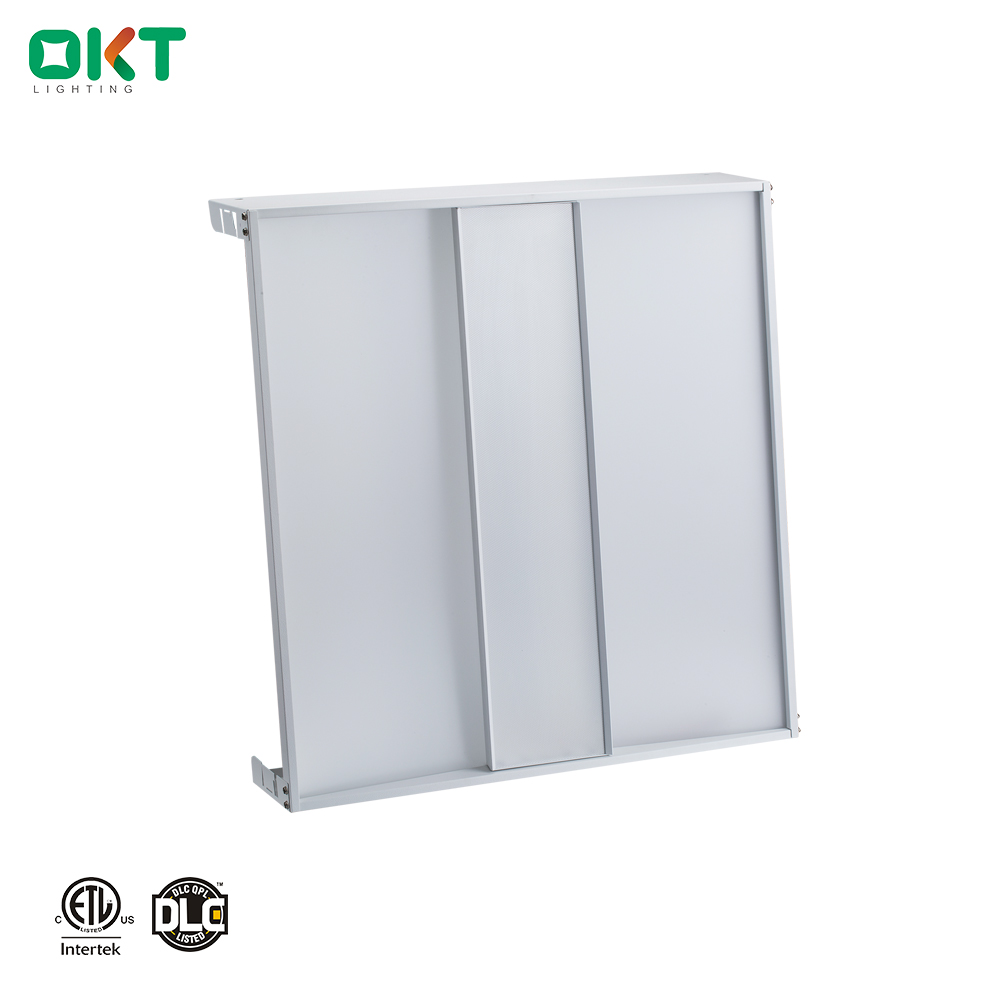

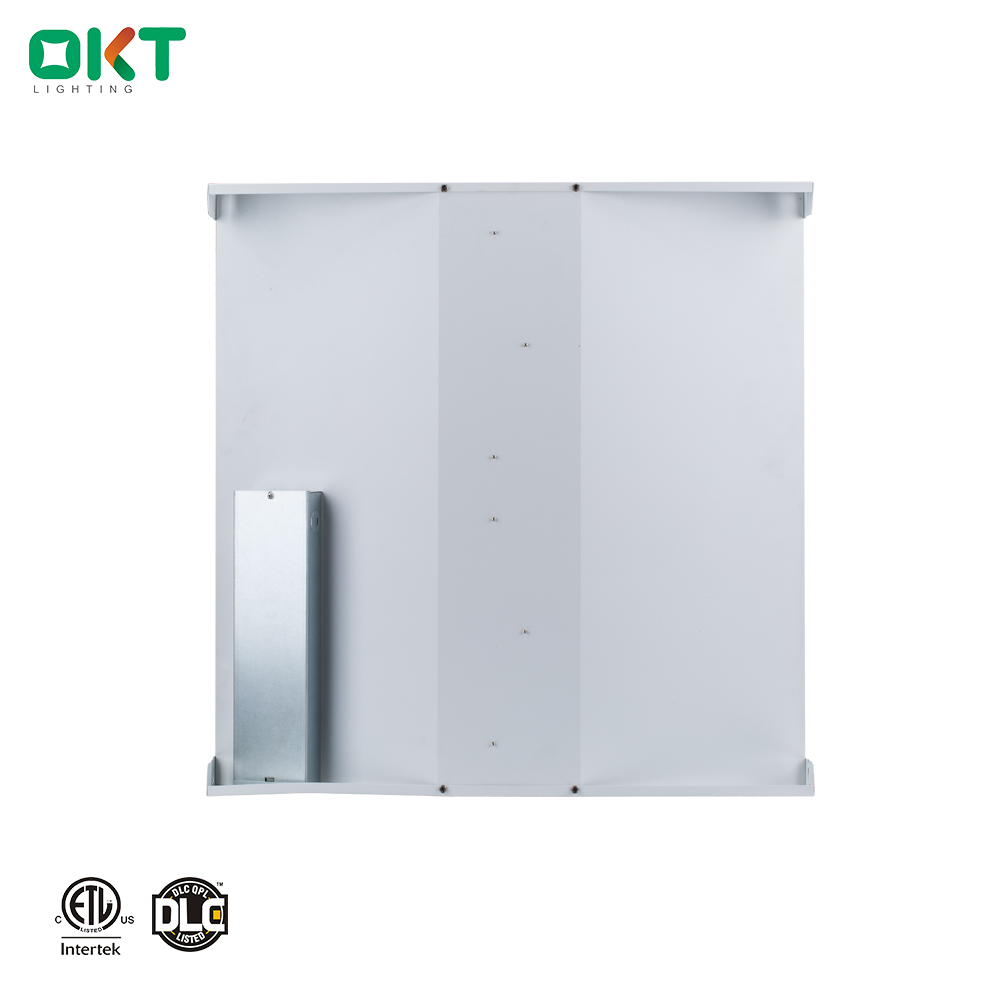

New Design 2x2ft Lay-in DALI Dimmable LED Troffer with 5 Years Warranty
Performance Summary
| Model | TR22-DL-XXE | TR22-DM-XXE | TR22-DM347-XXE |
| Input Wattage | 27 Watts | 40 Watts | 40 Watts |
| Input Voltage | 100-277V AC | 100-277V AC | 120-347V AC |
| Delivery Lumens | 2700 lm | 4400 lm | 4400 lm |
| Efficacy | 100 lm/w | 110 lm/w | 110 lm/w |
| Color Rendering Index ( CRI ) | Ra>80 | Ra>80 | Ra>80 |
| Power Factor | PF>0.9 | PF>0.9 | PF>0.9 |
| Dimmable | 0-10V Dimming | 0-10V Dimming | 0-10V Dimming |
| Function Optional | Motion Sensor and Emergency Backup | Motion Sensor and Emergency Backup | N/A |
| Warranty | 5 Years | 5 Years | 5 Years |
| UL | YES | YES | YES |
| ETL | YES | YES | YES |
| DesignLights Consortium® | YES | YES | N/A |
| Damp Rated | YES | YES | YES |
Structure
Test Report
Why OKT
Profession
Shenzhen OKT Lighting CO.,Ltd, Founded in 2008;
Specialized in researching, manufacturing and sales of commercial LED lighting fixtures, include panel lights, troffers, downlights, linear pendant fixtures and LED emergency drivers;
All have achieved certifications such as UL, ETL, Energy Star, DLC, TITLE 24, TÜV, CSA, SASO and FCC;
A minimum five-year warranty.
Focus
Focus entirely on the North American market and in just a few years it has already gained a firm footing in this market;
Focused on R&D, producing LED products that are more energy-efficient, cost-effective and aesthetically pleasing than those already on the market;
Focus on quality control, We take more than just quality products for manufacturers to thrive.
