super markdet food warming light bar for refrigerator freezer light

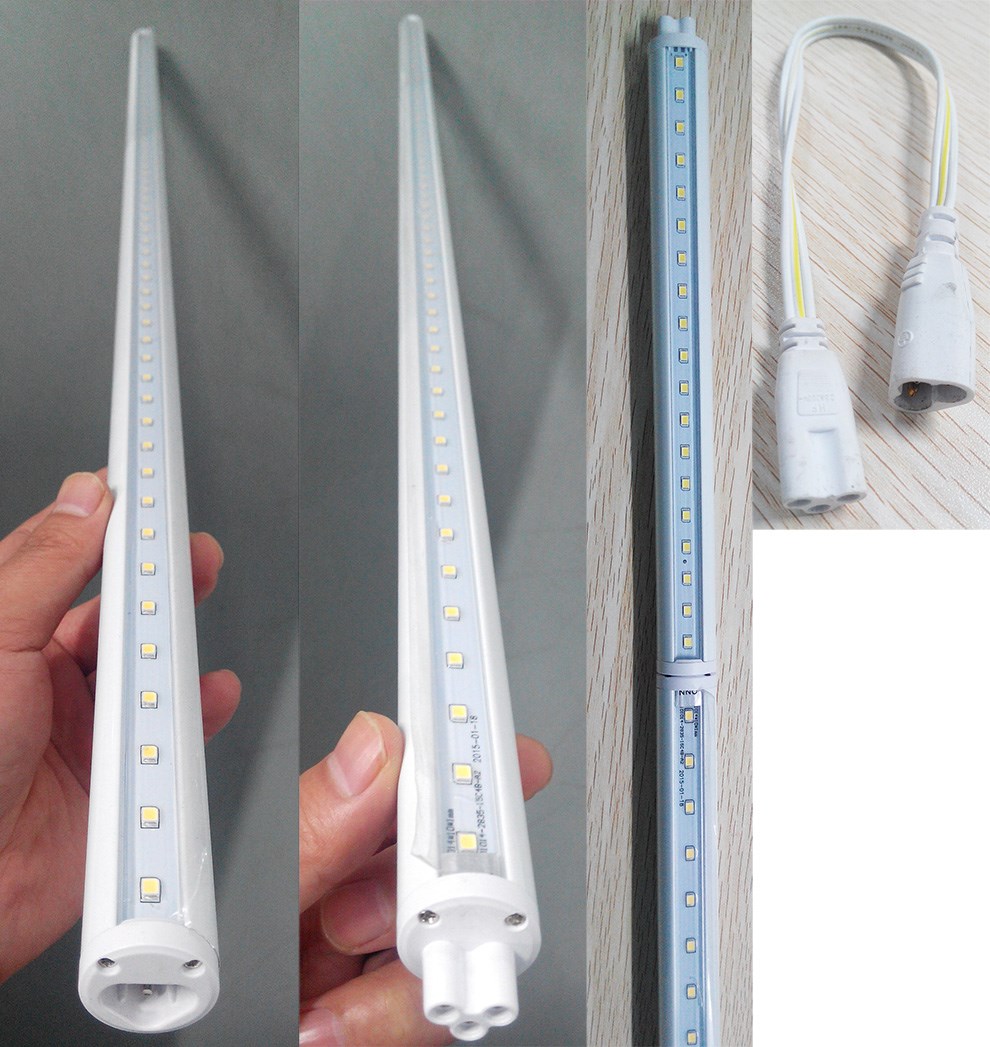

ONN-X5D New led refrigerator light can connect by one by with gap or no gap,it"s for your choice.
1.without gap:
2.with gap,the linkable power wire can customize length.
If choose double energized,the lamp can linkable together,very suitable for using on beverage cooler doors led lighting or supermarket shelves lighting,jewelry counters lighting,Like
How to connect them together? here is the steps:
ONN-X5D is integrated tube light,driver inside lamp,input voltage is AC100-240v.
1.led light source;Epistar 2835 chips,0.2w/pcs,high brightness,90-100Lm/w;
2.Lamp material:aluminum alloy body+pc cover,excellent heat dissipation to work in cold freezers;
3.Round shape,easy to install,fixed by clips and screws,firm and fast,save labor time and cost;after installed,as round shape,can 360 degrees to ajustable light directions as your will,
4.Light color can adjustable,if lights used in meat counter,just add few red chips to make meat more ruddy;if used in vegetable counters,the vegetable and fruit will more fresh and green,make more effect;
5.Length can customize,our standard is 300-1500mm(1ft-5ft) if have quantity or meat our MOQ;
6.Our light is isolated driver,is internal driver,work voltage is AC100-240V,don"t need any bracket;
7.We can provide WW 2700-3200K,NW:4000-4500K,CW:5500-6500K;
8.We promise 2-3 years warranty,during the time if fail,we wil fixed it and send new one for you,we"re realible supplier,so we are responsiblity for the lights always no matter in first sales or after-sales,we provide best quality and service for my cilents.
9.X5C cooler light is IP65,suitable for work at minus 18degrees;
10.Energy saving products,at least save 60% compare with t8/t5 tube lights,it"s the update version of them!!!
11.Pls don"t see it small body,it"s have many advantages,also can connect end by end if you needs;
12.Grill white piant in the surface,more secure and insulation.
Specification:
| Model No. | Input Voltage | Range of input voltage | Range of CCT |
| X5D-C1 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 5500-6000K pure white |
| X5D-C2 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 4000-4500K warm white |
| X5D-C3 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 2800-3200K yellow |
| Length of power line: | 0.15M(Standard) | ||
| Installation: | Lamp clip fixation | ||
| tube length: | 670mm | 920mm | 1150mm |
| Power consumption(Max): | 6.5W | 9W | 10.5W |
| Input Current(Max): | 29mA | 41mA | 48mA |
| Luminous Flux: | 720 Lm | 950 Lm | 1100 Lm |
| tube length: | 1400mm | 1730mm | |
| Power consumption(Max): | 16W | 18W | |
| Input Current(Max): | 77mA | 80mA | |
| Luminous Flux: | 1650 Lm | 1900 Lm | |
| IP rating: | IP65 | ||
| Luminous efficiency: | 90-100Lm/W | CRI: | Ra>80 |
| Drive: | Non-Isolation type | ||
| Working temperature: | <60ºC | Beam angle: | 120° |
| Life spans: | 50 000H | ||
| working temperature: | -20~45℃ | Storage temperature: | -40~70℃ |
| working humidity: | 10~90% | Storage humidity: | 10~90% |
ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.
Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.
3.3 years warranty,in the period,when light is not work or some components failed,is free to repair;
4.Will be replied email and RFQ in 24hrs.
5.OEM accept.
1. Our Standard Export Packing. Customized packing is avaible for MOQ order.
2. Delivery time: samples 7-10 days, mass order 10-15 days.
3. Shipping: by international express, by air or by ship.
Company/Room/Lighting fair/Certificate showed:
ONN"s LED Cold storage light:
Suitable for -40 ℃ low cold storage,cold room,cold space.
