Click on the image to view the original image
- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 24V
- Lamp Power(W):
- 5
- Lamp Luminous Flux(lm):
- 100
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra>):
- 75
- Color Temperature(CCT):
- Other
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP20
- Certification:
- CE, FCC
- Emitting Color:
- Changeable
- Lamp Body Material:
- ABS
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN LED
- Model Number:
- ONN-M4S
- Light beads:
- SMD3528
- Mounting:
- Fixed or Foldable
- Warranty:
- 1.5 Years
- Application:
- CNC automative machine
- Funtion:
- flashing with buzzer
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 42X8X8 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- Neutral packing
- Picture Example:
![package-img]()
- Lead Time:
- 7

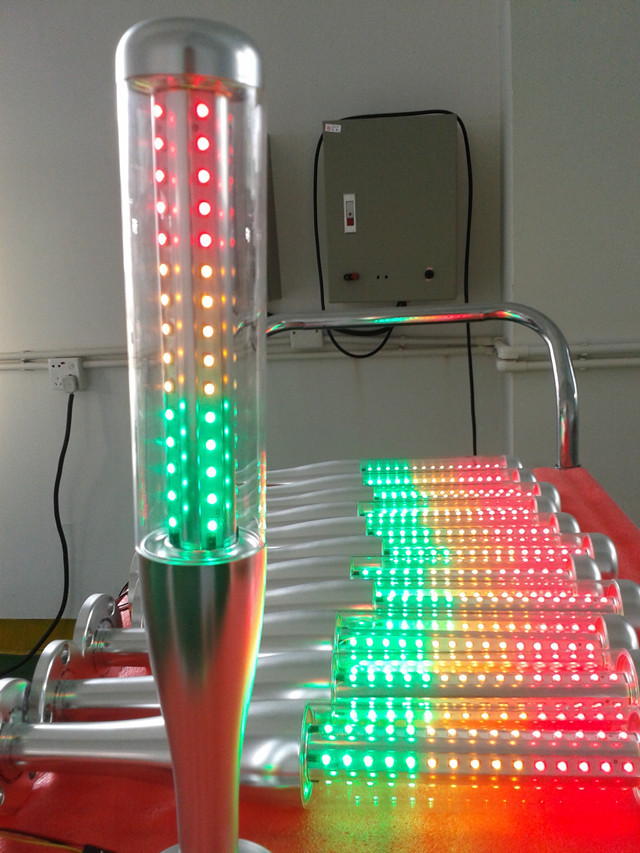

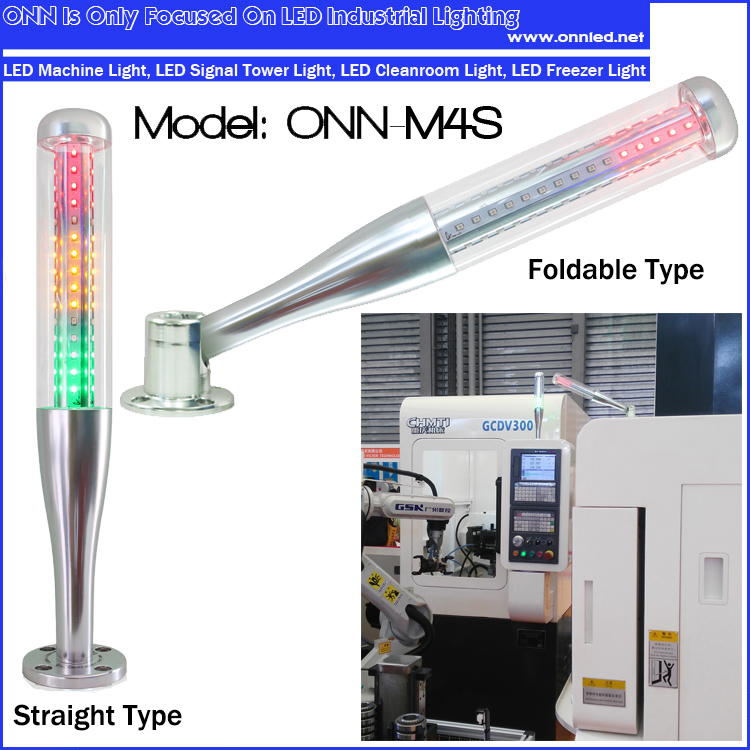

ONN-M4S led signal lamp and pilot light for cnc machines
Products introduce:
1,Delicate structure, simple and beautiful, competitive price;
2,The radiating of light is good, to insure the life spans of products;
3,China famous power.
| ONN -M4S A - 3 B B B | ||
| 1 2 3 4 5 6 | ||
| 1.Model | M4S | |
| 2.Shape | A, Baseball type | |
| 3.Layer | 3,3 color | |
| 4.Voltage | B,DC24V | |
| 5.Connect type | Z, NPN B,PNP | |
| 6.Function | B Steady F Steady with buzzer S Red flash C red flash with buzzer D All flash E All flash with buzzer | |
| Current | Red:50 mA, Yellow:90 mA, Green:35 mA, Buzzer:12mA | |
| Flash frequency | 60-70 week/mins | |
| IP rating | IP20 | |
| Temperature | 60℃ | |
| Life | 50 000H | |
| Color | Silver | |
| Installation | Fixed by screw | |
| Material | ABS+AL | |
Application
Environmental Requirements:
Working temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
Packing:
Packing material | cartons |
N/W of one light (Kg) | 0.5 |
G/W of total cartons (Kg) | 8.2 |
Qty in carton (PCS) | 12 |
Size of inner box(L*W*H)mm | 415*80*80mm |
Size of outer carton(L*W*H)mm | 440*265*345mm |
Repair list:
1,The warranty of the products is36months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
