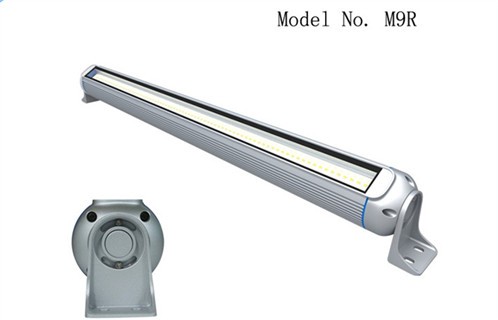

ONN-M9R 400mm IP65 CNC machine interior light fixture 24v
The direction of development of the LED light source is to go light,thin,small route , ONN-M9series of products imported 3014 lamp beads form taiwan , 3014lampbeads, small size ,low thermal resistance,good thermal conductivity , low light decay is the best chiose for lighting
Model No. | Voltage | CCT | |||||||||||||||||||||
ONN-M9R-B1 | AC/DC 24V | 5500-6000K | |||||||||||||||||||||
ONN-M9R-B2 | AC/DC 24V | 4000-4500K | |||||||||||||||||||||
Length of power line: | about 0.55M(standards) | ||||||||||||||||||||||
Installation: | Mounting brackets(Standards) fix clips for ceiling | ||||||||||||||||||||||
Length: | 400mm | ||||||||||||||||||||||
Power: | 12 W | ||||||||||||||||||||||
Current: | (24V)470mA | ||||||||||||||||||||||
Lumen: | 998Lm | ||||||||||||||||||||||
| |||||||||||||||||||||||
Application
Mold maintenance lighting , workbench lighting , laser machinery , ceramic machinery and equipment, medical equipment , automated production lines , engraving equipment , stamping equipment lighting , local lighting which needs moving needs and so on .
The Same Recommendation
Environment request
Working Temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
Packing detail
Material | cartons | |
Length of lighting(MM) | 300 | |
Products weight (Kg) | 0.53 | |
Total weight of a cartons(Kg) | 15.5 | |
Q-ty in a carton(PCS) | 24 | |
Size of carton(L*W*H)mm | 780*285*233 | |
Size of inner box(L*W*H)mm |
570*60*70 | |
Installation
1,Fixed brackets:
1) Confirmed the length of the light first.
The following picture is the installation
of accordingly length of light.
2) After installed the lighting, customer
can adjust the suitable angle.

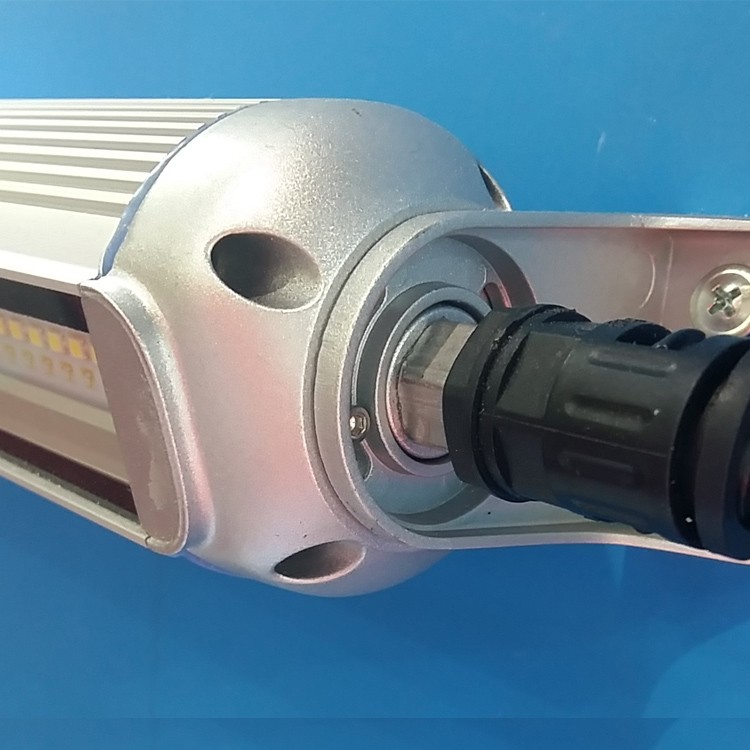

In the two end of lighting, there are 2 fixing screws,
can using 2.0mm Allen wrench to release and screw
the screws to adjust the beam angle.
Repair list:
1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
