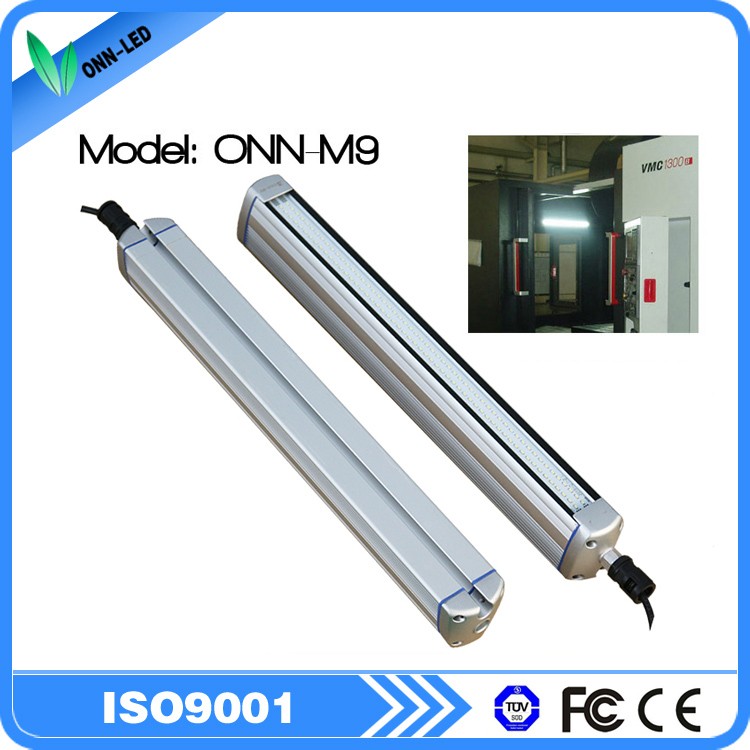

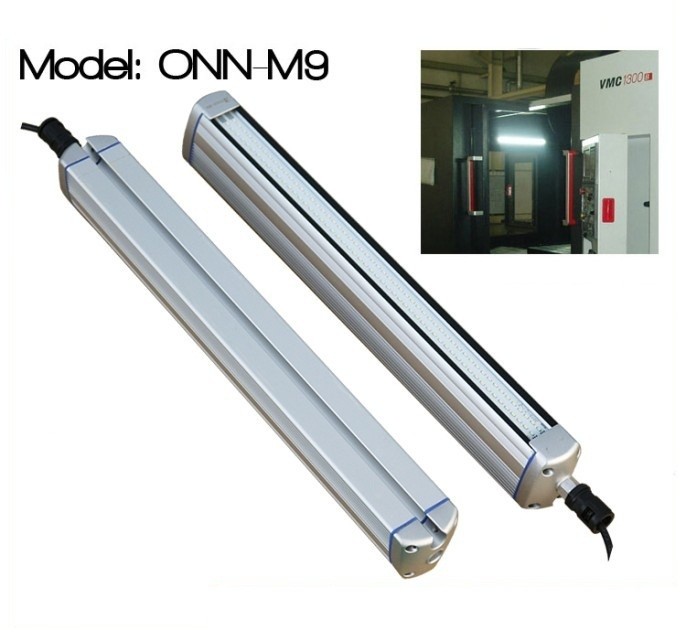

IP65 oil-proof led machine tool working lamp for cnc machine ONN-M9 600mm
The best solution for machine lighting with private designs
Model | Input standard voltage | CCT | |
ONN-M9-B1 | AC/DC 24V | 5500-6000k | |
ONN-M9-B2 | AC/DC 24V | 4000-4500k | |
Power wire length | About 0.55M(Standard) | ||
Lamp length | 600 mm | ||
Power dissipation | 16W | ||
Input current | 690mA | ||
Light flux | 1498Lm | ||
| IP Rating | IP65 | CRI | 80 |
| Luminous efficiency | 90-100lm/w | PF | 0.9 |
| Driver | Isolation | Beam angle | 120° |
| Working temperature | 60℃ | Installation | Fixed by light clips or plastic plug |
| Life span | 50000h |
Application
Mold maintenance lighting , workbench lighting , laser machinery , ceramic machinery and equipment, medical equipment , automated production lines , engraving equipment , stamping equipment lighting , local lighting which needs moving needs and so on .
Application of dangerous goods
Features:
1. Large double energy-saving,long lifespan , maintenance-free man-hour cost ,especially suitable for ultra-low temperature cold storage environments .
2. ONN M9 series adopt2835 light source which imported from Taiwan. Low thermal resistance ,good thermal conductivity , low light decay .
3. Resistant to low temperature of -40°C, no frosting ,instantaneous starting .
4. Die-casting structure,Water-proof Adhesive,Water-proof Silicon and Toughened Glass combined together Unify Water-proof,heat Dissipation and Appearance completely.
5. Patented construction,concise and generous,360°adjustable,two installing way of clamp and dowel,easy installation.
6. Big allowance design,imported rubycon capacitance,increase the lifespan of driver sharply,
7. Modular design,easy to replace once the driver failed.
Packing:
Packing material | cartons | |||
Size of products(MM) | 300 | 400 | 600 | 800 |
N/W of one light (Kg) | 0.53 | 0.705 | 1.02 | 1.22 |
G/W of total cartons (Kg) | 15.5 | 10.5 | 15.5 | 13.5 |
Qty in carton (PCS) | 24 | 12 | 12 | 9 |
Size of inner box(L*W*H)mm | 780*285*233 | 580*285*233 | 780*285*233 | 990*210*233 |
Size of outer carton(L*W*H)mm | 770*60*70 | 570*60*70 | 770*60*70 | 970*65*70 |
Environmental Requirements:
Working temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
product presentation:
Repair list:
1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
Company information
Shenzhen ONN Semi-conductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light.
With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America, Japan, South Korea,Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.
We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market.
