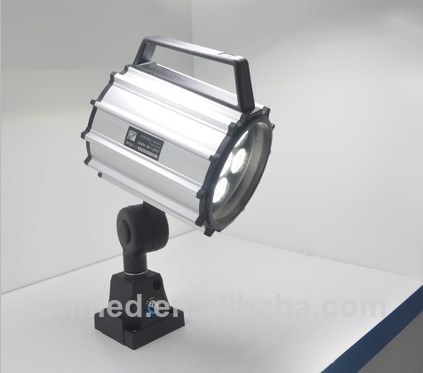

ONN-M1 IP65 CNC turning machine tool working short-arm led light
application Machine interior lighting,the places which need local accent lighting such as carved machine,sparks machine, CNC machine
| Model No. | Input Voltage | Range of input voltage | Range of CCT | |||||||||||||||||||||||||||
| ONN-M1-B1 | AC/DC 24V | AC/DC 24±2V | 5500-6000K | |||||||||||||||||||||||||||
| ONN-M1-B2 | AC/DC 24V | AC/DC 24±2V | 4000-4500K | |||||||||||||||||||||||||||
| ONN-M1-C1 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 5500-6000K | |||||||||||||||||||||||||||
| ONN-M1-C2 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 4000-4500K | |||||||||||||||||||||||||||
| Length of power line | - 0.3M (Standard) | |||||||||||||||||||||||||||||
| Installation | Fixed base by screws | |||||||||||||||||||||||||||||
| Power dissipation | 7W | 9.5W | ||||||||||||||||||||||||||||
| Input current(Max) | (24V) 350mA (220V) 50mA | (24V) 450mA (220V) 100mA | ||||||||||||||||||||||||||||
| Light flux | 550Lm | 830Lm | ||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
features
Environmental Requirements:
Working temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
Packing:
Packing material | Cartons | |
Size of products(MM) | 280(1pcs/inner box) | 280(3pcs/inner box) |
N/W of one light (Kg) | 0.98 | 0.98 |
G/W of total cartons (Kg) | 14.5 | 20.5 |
Quantity/CTN (PCS) | 12 | 18 |
Inner box(L*W*H)mm | 225*130*170 | 330*200*220 |
Carton size(L*W*H)mm | 460*400*355 | 620*380*460 |
