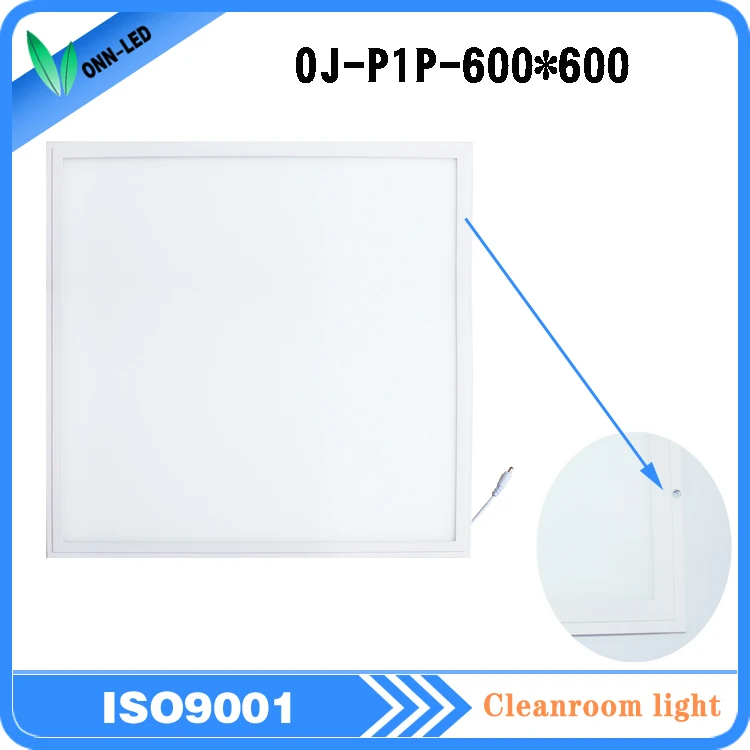

ONN-P1P Energy-saving hospital led panel light for cleanroom
Introduction:
1.The industry"s most thin plate lamp design, the thickness of 8.5mm
II the unique structural design, let flat lamp seamless fit the color steel plate, mounted on the ceiling and ceiling seamless, 2.there is no unexpected sense.
3.The selection of industry quality before the three parts supplier, fine workmanship, no leakage, no yellow edge bright side

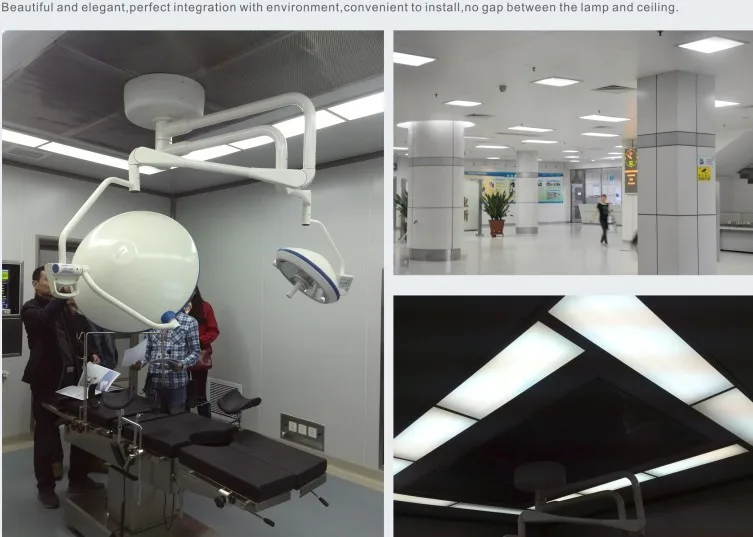

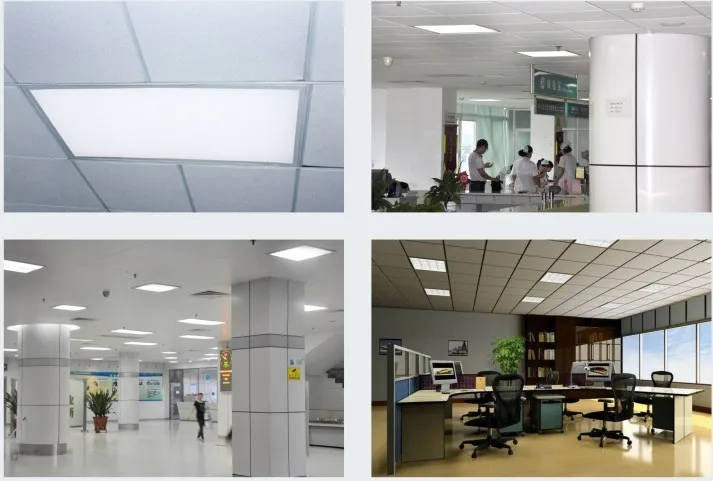

Application:Clean room, Hotel, Meeting room, Hospital, Office ect!
Basis Data:
Model No. | Voltage | Range of Voltage | CCT |
OJ-P4P-C1 | AC220V (50/60Hz) | AC200-240V (50/60Hz) | 5500-6000K |
OJ-P4P-C2 | AC220V (50/60Hz) | AC200-240V (50/60Hz) | 4000-4500K |
OJ-P4P-C3 | AC220V (50/60Hz) | AC200-240V (50/60Hz) | 2800-3200K |
| |||
Length of power: | about 0.2m(standards) | ||
Installation: | Ceiling installation Flush Mounting | ||
Size: | 300×600mm | 600×600mm | 300×1200mm |
Power: | 20W | 40W | 40W |
Current: | 90mA | 180mA | 180mA |
Lumen: | 1620 lm | 3240 lm | 3240 lm |
| |||
Environment request:
Working temperature: | -20~45℃ |
Save temperature: | -40~70℃ |
Working humidity: | 10~90% |
Storage humidity: | 10~90% |

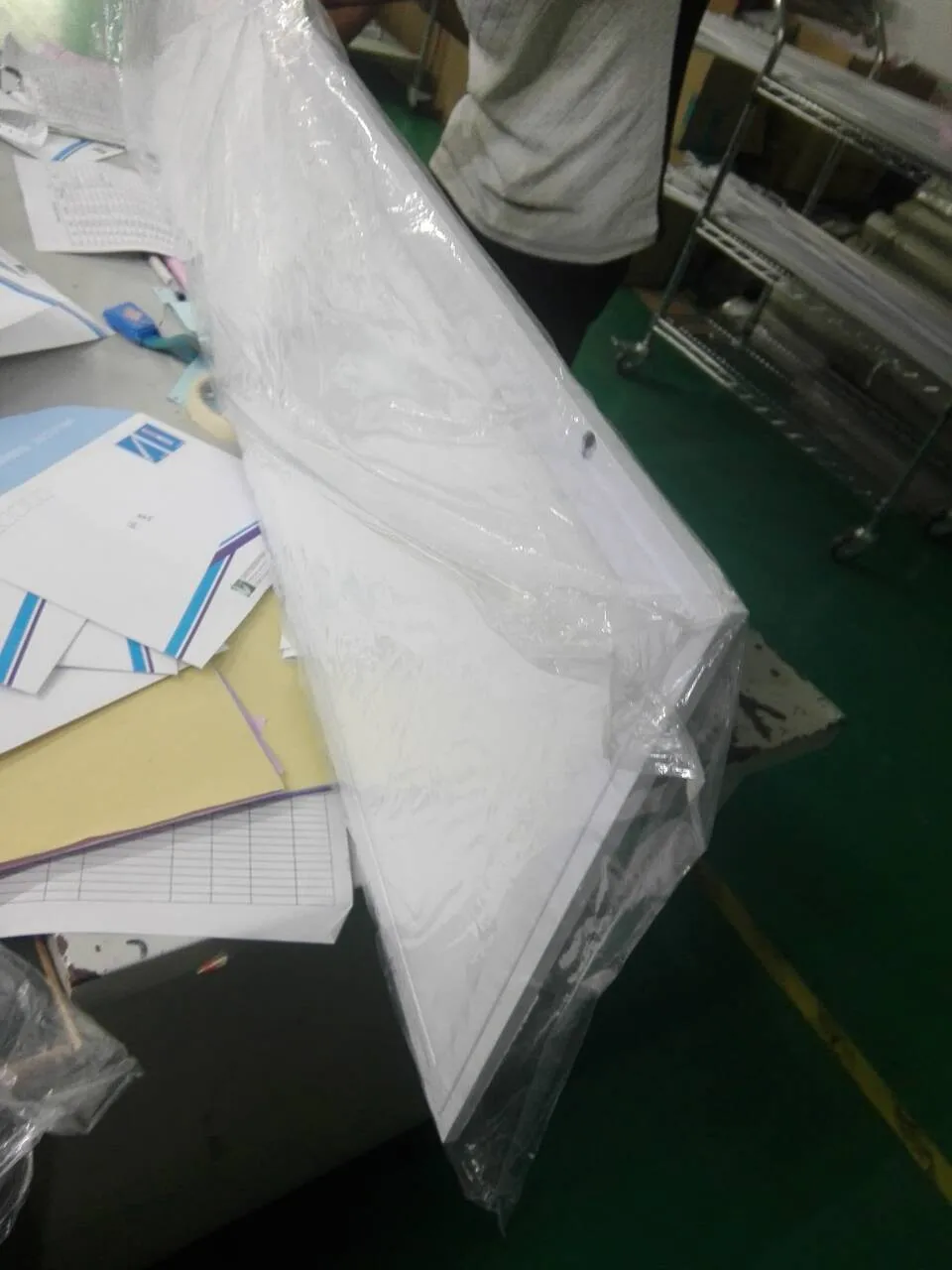

Packing detail:
Material | carton | ||
Size(mm) | 300×600 | 600×600 | 300×1200 |
Products weight (Kg) | 1.345 | 2.460 | 2.675 |
Total weight(Kg) | 11 | 17 | 18 |
Q-ty in carton (PCS) | 5 | 5 | 5 |
Inner box size(L*W*H)mm | 705×335×37 | 705×635×37 | 1305×335×37 |
Carton size(L*W*H)mm | 720×200×355 | 720×200×660 | 1320×200×355 |
Warranty:
1. 24 months free warranty for quality failure.
2. If following facts, warranty will be limited:
(1)Date Changed.
(2)User’s improper use or damage.
(3)Outlook damage or shortage for lamp or package is not within warranty.
(4)Failure caused by improper use or setting.
(5)Open or maintenance not by us or our agents, or without our permit.
(6)Failure caused by act of god.
(7)Other causes not due to quality problems.
3,If exceeds warranty time, it will be not free any more for warranty.
