1. Long life span of 50000 hours, free of maintanice and saving cost for long use.
2. Greatly energy-saving than troditional light source.
3. High brightness but low power cost.
4. Good heat dissipation with fine aluminum house.
5. Good shock resistent performance.
Install hose is fixed in the way:
1) specify fixed points to open the screw holes and screw holes for m8*1mm.

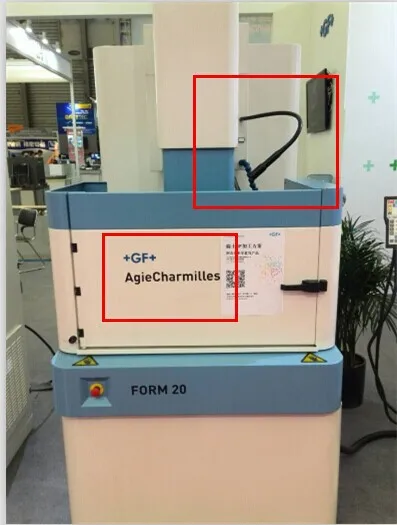

2) directly to the hose is screwed into the threaded hole and tighten, installation and the lamp cap can according to need to adjust the angle (as shown in the figure).
Packing material
carton

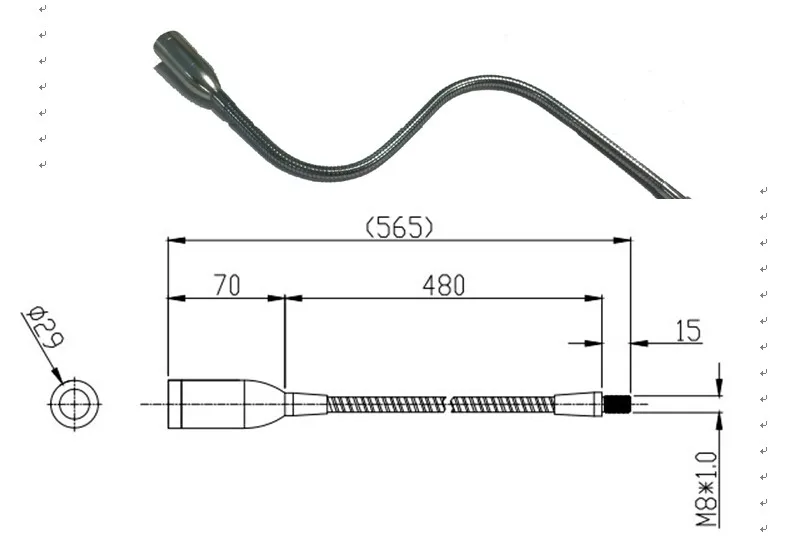

Size of product(MM)
565
N/W (Kg)
0.29
G/W(Kg)
12.5
PCS
40
Outer(L*W*H)mm
580*285*233
Maintenance regulations:
1, the product warranty period is 18 months. The internal fault occurs during normal use warranty invoice date and light body given free repair.
2, the situation does not belong to the scope of warranty charges by paid service:
(1) the date of the altered body;
(2) due to improper or fault the use of damage to the user;
(3) the lamp body and tied with the appearance of products damaged, such as shortage of warranty processing;
(4) failure by the interference of external factors such as: the input voltage error caused by setting lamp does not work;
(5) and without dismantling repair or repair repair by special outside the maintenance station without the transformation caused by Xu, fault;
(6) due to fire, earthquake, flood, lightning and other natural disasters, pollution or damage caused by abnormal voltage fault;
(7) the rodent, salt fog, corrosion and other reasons need to be repaired.
3, more than the warranty period, a The law is charged according to the standard, and the service fee is the cost of the freight.
Related products
company information
ONN Semiconductor (shenzhen) Co,ltd., was established in August 2005, located in Bao"an District, shenzhen LED industry gathering. The company focuses on LED lighting for "Industrial Lighting" in particular "machine work lighting," and various "warning light", From the products onto the market nearly 5 years has experienced 25 times of trade shows, create a utility model patent the invention 2, the appearance of 8 patents, and has a achieved CE certification, IP level authentication, certification and a series of energy efficiency standards relevant certificates. ISO9001, professional R&D team for technology and quality escort, was identified as Bao"an district, Shenzhen High-tech enterprises.
