V Shape LED Cooler Lights 2ft led tube t8 integrated tube light 18W AC100-240V clear cover
Click on the image to view the original image
Product： views：5V Shape LED Cooler Lights 2ft led tube t8 integrated tube light 18W AC100-240V clear cover
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:40
  Negotiated
Product Details
Overview
Quick Details
Warranty(Years):
2
Input Voltage(V):
220
Lamp Power(W):
24
Lamp Luminous Efficiency(lm/w):
110
CRI (Ra>):
80
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
CE
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
X3D
Light Source:
LED
Item type:
led lamp for refrigerator
Color temperature:
2700-3200K/4000-4500k/5500-6000k
Power:
20W,21W,24W
Length:
1340MM,1500MM,1800MM
Beam angle:
130°
Mounting type:
By clips
Voltage:
AC220V
Light efficiency:
105-110Lm/w
IP rating:
IP65
Work temperature:
-20-45℃
Item Type:
Tube Lights
LED Light Source:
SMD 2835
Lamp Luminous Flux(lm):
2640
Color Temperature(CCT):
2700-6000K
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
led lamp for refrigerator:
Standard export outpackage.
can customized by your request.
Port
Shenzhen

V Shape LED Cooler Lights 2ft led tube t8 integrated tube light 18W AC100-240V clear cover















Product feature

 -Small lamp body,the whole lamp is made of PC,driver inside lamp;

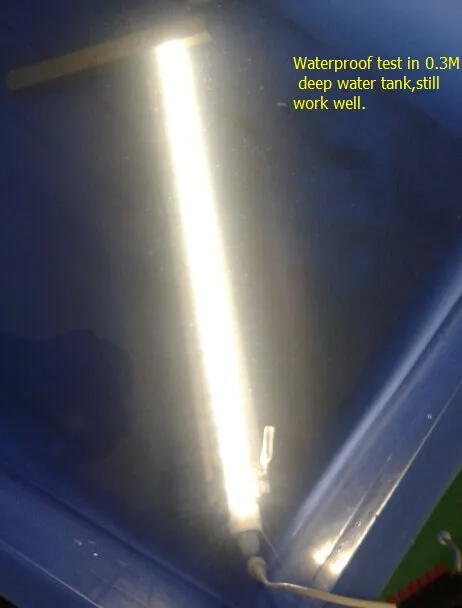

-All the lamp is sealed,entirely waterproof,IP65 high level;

-The lamp power supply is quite small,will not block the freezer compartment;

-Easy to installation and replace the light,when not work;

-We provide 3ft-6ft,can customize length;

-The X3D don"t have left and right difference,they are together.





Data sheet of X3D:

Type

Length(mm)

Power(W)

Voltage

CCT

Light efficiency (Lm/w)

Light Flux(Lm) ±5%

CRI (>Ra)

Size(mm)

X3D-C1

1340

20

AC100-240V

2700-3200K/4000-4500K/5500-6000K

110

2082

80

1340*28.5*21

X3D-C2

1500

21

AC220V

2700-3200K 4000-4500K  5500-6000K

110

2835

80

1500*28.5*21

X3D-C

1800

24

AC220V

2700-3200K/4000-4500K/5500-6000K

110

2910

80

1800*28.5*21







Size drawing:

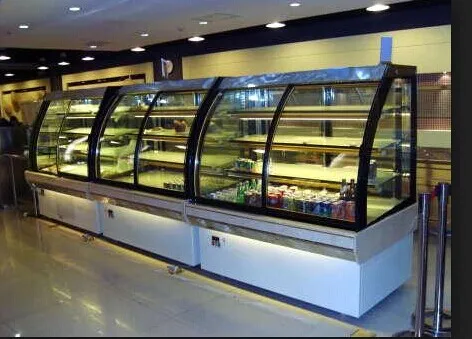

Application:







Company Information



ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.

Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.







Our Services



1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.

3.18 months warranty,in the period,when light is not work or some components failed,can free to replace;

4. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)
