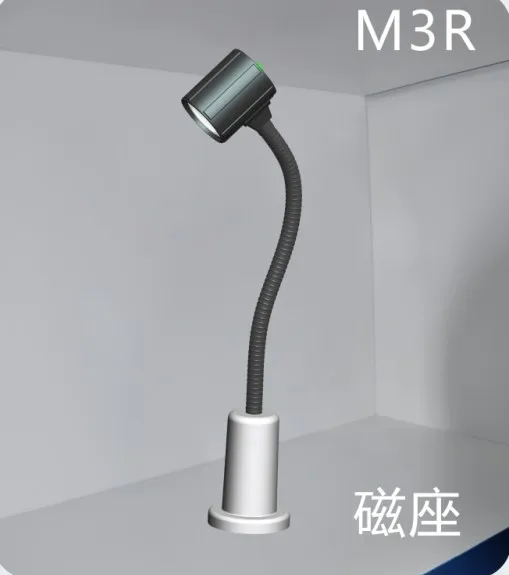

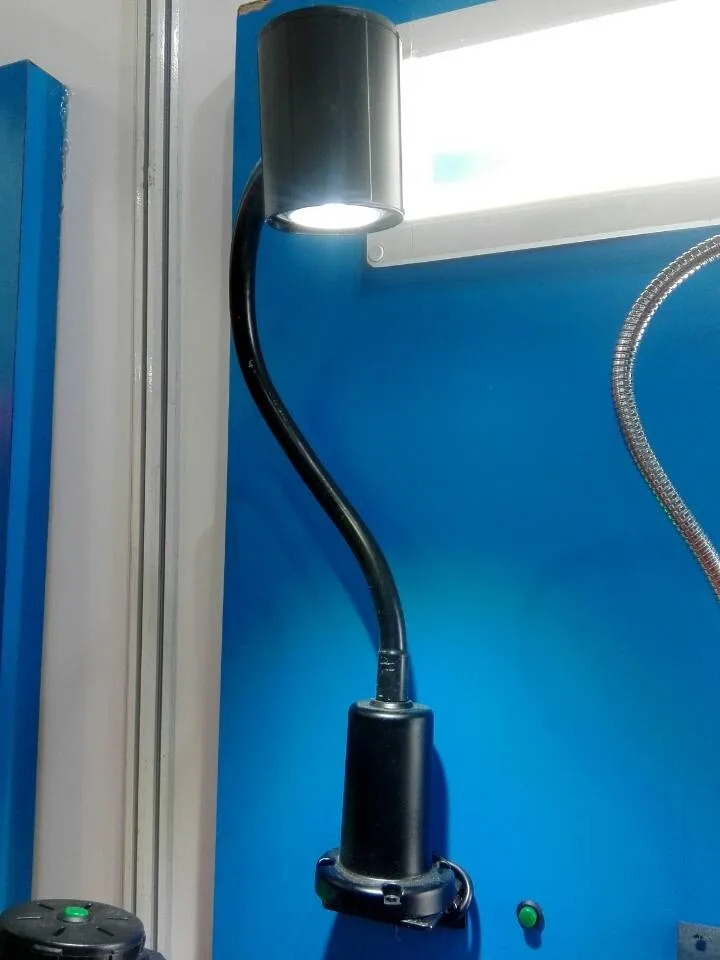

ONN-LED M3R gooseneck magnetic led lamp/magnet based lamps
Products information:
| Brand | ONN | Surface Temperature | <50°C |
| Power | 5W | Mounting | Fixed by Magnetic base |
| Lifespan of light source | 50000 hours | Place of Origin | Shenzhen China |
| Viewangle | 60° | CRI | 80 |
| Central LUX | 70cm: 650-750Lux | IP grade | IP40 |
| Working Temperature | -20 -45 degree | Color temperature | 2800-3200/4000-4500/5500-6000K |
Model | Power | Voltage | CCT | Beam Angle | IP | Base |
| ONN-M3R-B1 | 5W | AC/DC24V | 5500-6000K | 45 degree | 40 | magnet base |
| ONN-M3R-B2 | 5W | AC/DC24V | 4000-4000K | 45 degree | 40 | magnet base |
| ONN-M3R-C1 | 5W | AC100-240V | 5500-6000K | 45 degree | 40 | magnet base |
| ONN-M3R-C2 | 5W | AC100-240V | 4000-4500K | 45 degree | 40 | magnet base |
Packing:
Packing material | cartons |
Size of products(MM) | 585 |
N/W of one light (Kg) | 0.58 |
G/W of total cartons (Kg) | 16 |
Qty in carton (PCS) | 20 |
Size of inner box(L*W*H)mm | 610*85*85 |
Size of outer carton(L*W*H)mm | 620*380*460 |
Environmental Requirements:
Working temperature: | -20~45℃ |
Save temperature: | 10~60℃ |
Working humidity: | 10~90% |
Save humidity: | 10~90% |
Product Features:
1. Delicate construction,suitable for various kinds of poor working condition,high cost performance.
2. Integrated lamp head , good heat dissipation .
3. Low-current design ensures the product life span.
4. Imported hi-power COB ,brighter .
5. Branded driver,which ensure the product lifespan more than 3 years.
6. Only need screws to fix the base,more easy to install.
7. Optional magnetic base available which enables the light to be attached to any machine .
8. Good hardness for the flexible pipe,free illumination angle.
9. Aluminum Lamp head , with good heat dissipation .
10. Excellent robust and suitable for most industries including work shops, assembly shops, factories, tool rooms, machine shops. Ideal for use for medical treatment, lab, precision instrument inspection.. Work/task light.
11. 18 months warranty .
The Value-added services which ONN can supply to you :
1. ONN can supply LED lighting solutions of Specific projects to you
2. ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers
Repair list:
1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
product presentation:
Company information:
Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light
With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, America,Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.
We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market.
