Home > Products > led signal tower light for embroidery machine work led lamps
led signal tower light for embroidery machine work led lamps
Click on the image to view the original image
Product： views：4led signal tower light for embroidery machine work led lamps
Branch： ONN LED
Type： Equipment Indicator Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:40
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
12/24/220V
Lamp Power(W):
4.5
Lamp Luminous Flux(lm):
400
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
Red Yellow GreenWhite Blue
Beam Angle(°):
360
IP Rating:
IP54
Certification:
BV, C-tick, CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS, UL, VDE
Emitting Color:
R/Y/W/B
Lamp Body Material:
PC
Base Type:
FESTOON
Place of Origin:
Guangdong, China, Shenzhen
Brand Name:
ONN LED
Model Number:
ONN-M4
Item:
led signal tower light for embroidery machine
Buzzer:
yes(optional)
Performance:
Constant or flash
Warranty:
3-5 years
Mounting:
Plate or flexible
Diameter:
60mm / 70mm available
Pole:
foldable or fixed
LIFE:
more than 50000 hours
Color output:
red, amber, green, blue
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month led signal tower light
Packaging & Delivery
Packaging Details
M4( 3 layers): 12pcs/CTN. CTN dimension:45*27*35cm. 7kg/CTN.
Port
shenzhen
Lead Time:
Shipped in 10 days after payment

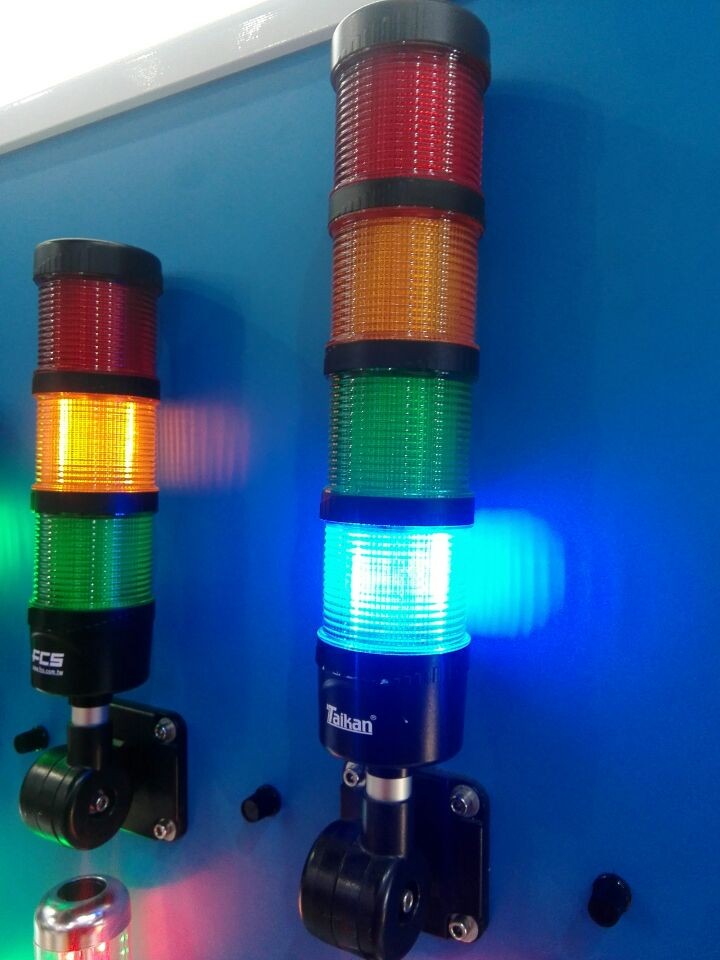

ONN-M4: New 12v /24v/120v/230v modular designed stack tower light, led indicator light, alarm flash light flexible ,LED Signal lamp with buzzer foldable pole or fixed base







Quick details:



Brand

ONN-M4

Layer

Can be one, two, three, four layers.

POWER

1.5W-4.5W

Installation

A Foldable    B Wall-mounted  C Plate

Input voltage

A DC12V      B DC24   C AC220V

Functions

B Continuous light;   F Continuous light with buzzer;   S Red flash;   C Red flash with buzzer
D  All colors flash;  E All colors flash with buzzer

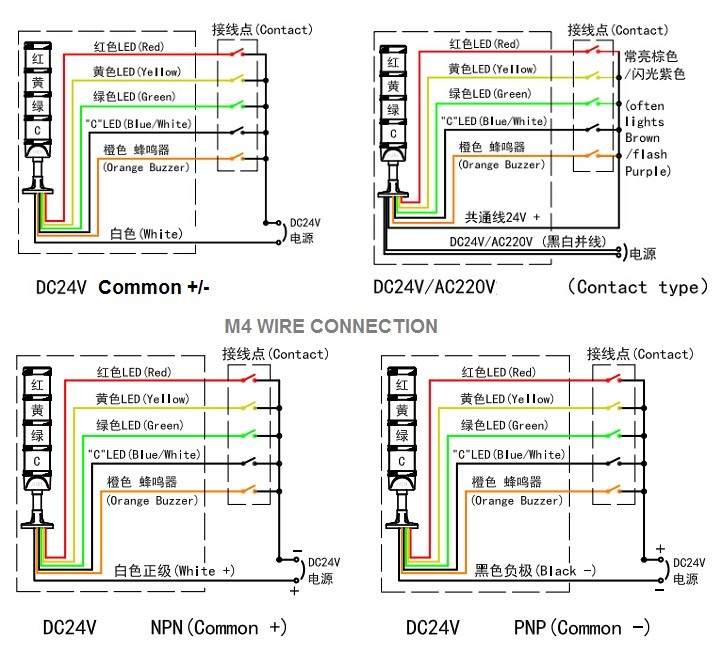

Wiring

C,Contact type;  Z,Power direct input type (Positive);  B, Power direct input type (Negative)

Lamp color order

Color order from top to bottom  R:Red  Y:Yellow  G:Green  W:White  B:Blue

Diameter

 Φ60mm  or  Φ70mm









Packing:



Packing material

Tri-color tri-layer(Foldable type/pole plate type)

M4 Tri-layer multi-colors(Plate type)

M4 Tri-color tri-layer(L-shape plate type)

M4 four layer four colors(Pole plate type)

N.W.:/pc (Kg)

0.325

0.3

0.45

0.315

G.W.:/CTN (Kg)

6.1

5.8

7.6

6

QTY/CTN(pcs)

12

12

12

12

Inner box(L*W*H)mm

415*80*80mm

415*80*80mm

415*80*80mm

510*90*75mm

Carton size(L*W*H)mm

440*265*345mm

440*265*345mm

440*265*345mm

580*280*233mm



Note: the length of rod plate is made according to customer requirements, so will affect the measurement of gross specific orders



Company information:



Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a leading manufacturer of led industrial lightings in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light.



 With 10 years development, we have become the leader of producing and supplying led industrial lighting in China. We have gained a 60% domestic market, and our products have been exported widely to the world with fast increase year by year. Our partners include DAS Auto, Foxconn, etc.  Our aim is to become the biggest and best supplier of led industrial lights from China to the world.



 We will continue to do our best to develop and produce high quality and price competitive products. ONN would like to work with you to make contribution to the lower carbon world.



Factory view:





Fair and visitor:





Relevant machine light series:















Certificate:
