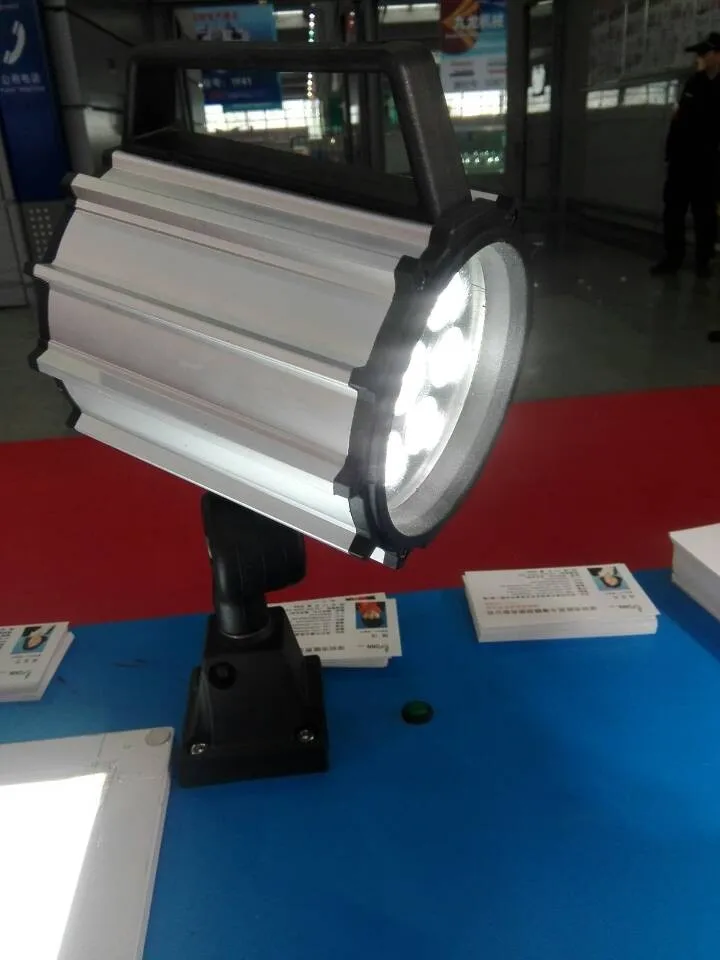

Short-arm flexible led machine light IP65 ONN-M1
Click on the image to view the original image
Product： views：3Short-arm flexible led machine light IP65 ONN-M1
Branch： ONN LED
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:41
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
12/24/220V
Lamp Power(W):
7
Lamp Luminous Flux(lm):
550
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
70
Color Temperature(CCT):
Warm White, 4000-4500K/5500K-6000K
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, FCC
Emitting Color:
Warm White
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN LED
Model Number:
ONN-M1
APPLICATIONS:
Led Machine Work Light
Life span:
50000 Hrs
Power:
7W/9.5W
Material:
Aluminum+PC
WARRANTIES:
36month
light source:
cree 1~3w/pcs
Mounting:
FixedBase
light beads:
SMD2835
Color:
Neutral White
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
neutro-packing
Port
shenzhen

Short-arm flexible led machine light IP65 ONN-M1



 application Machine interior lighting,the places which need local accent lighting such as carved machine,sparks machine, CNC machine



BrandONNSurface Temperature<50°C
Light source1~3W/PCSMountingFixed by clamp and screws
Lifespan 50000 hoursPlace of OriginShenzhen China
Viewangle60°CRI70
Central LUX

70cm:  (7W)1400Lux  / (9.5W)1800-1900Lux

IP grade

 IP65



ModelPowerRated currentVoltageCCT
ONN-M1-B17W/9.5W300/400mA24V5500-6000K
ONN-M1-B27W/9.5W300/400mA24V4000-4500K
ONN-M1-C17W/9.5W32/43mA220V5500-6000K
ONN-M1-C27W/9.5W32/43mA220V4000-4500K









Environmental Requirements:

Working temperature:

-20~45℃

Save temperature:

-40~70℃

Working humidity:

10~90%

Save humidity:

10~90%



 features



1. Sectional aluminum construction,water-proof adhesive tape,and toughened glass, etc parts combine well,integrate water-proof,heat dissipation and appearance completely.

2.ONN-M1 series product adopt hi-power chips imported from Taiwan,this light source is with small size,lower thermal resistance,fine thermal conductivity,lower heat dissipation,which is good choice for lighting fixture.

3. Aluminum alloy die-casting joint support,sturdy and durable,concise and generous,270°adjust can be done,let the lamplight free.

4. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.

5. Fine workmanship,high brightness,it is the best choice for middle and top grade machinery,promote the machinery grade and selling points.

Packing:



Packing material

Cartons

Size of products(MM)

280(1pcs/inner box)

280(3pcs/inner box)

N/W of one light (Kg)

0.98

0.98

G/W of total cartons (Kg)

14.5

20.5

Quantity/CTN (PCS)

12

18

Inner box(L*W*H)mm

225*130*170

330*200*220

Carton size(L*W*H)mm

460*400*355

620*380*460
