Overview
Quick Details
- Warranty(Years):
- 3
- Input Voltage(V):
- AC100-240V
- Lamp Power(W):
- 36
- Lamp Luminous Efficiency(lm/w):
- 100
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -40 - 40
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP44
- Certification:
- BV, C-tick, CCC, CE, CQC, EMC, ETL, FCC, LVD, RoHS, SAA, UL, VDE
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- T8
- Light Source:
- LED
- Item type:
- modern led tube waterproof for clean room
- Voltage:
- 100-240V
- View angle:
- 180 degree
- Power Rating:
- 18W / 36W
- Luminous:
- 100 Lum/W
- CCT:
- 4500-5000K / 5500-6000K
- Main Meterial:
- Aluminum / PC
- lifespan:
- 50000 Hours
- Installation:
- Fixed by two screws
- Bright spot:
- Tatally dust-proof
- Item Type:
- Tube Lights
- Lamp Luminous Flux(lm):
- 3500
- Color Temperature(CCT):
- Pure White
- LED Light Source:
- SMD2835
Supply Ability
- Supply Ability:
- 100000 Piece/Pieces per Month Promotion Price LED Cleanroom Lighting18w/36w
Packaging & Delivery
- Packaging Details
- Inner box & outer box
According to customr's requests
Promotion Price LED Cleanroom Lighting18w/36w
- Port
- Shenzhen, China
- Lead Time:
- Shipped in 10 days after payment

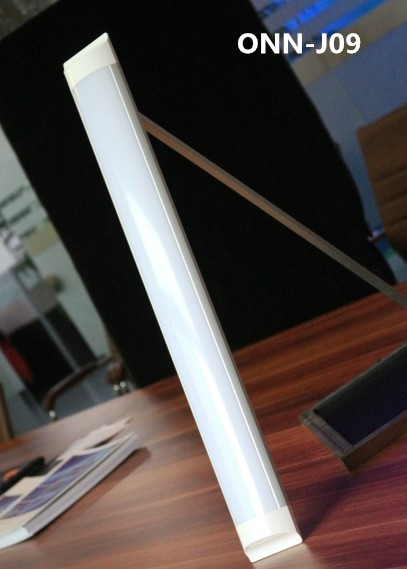

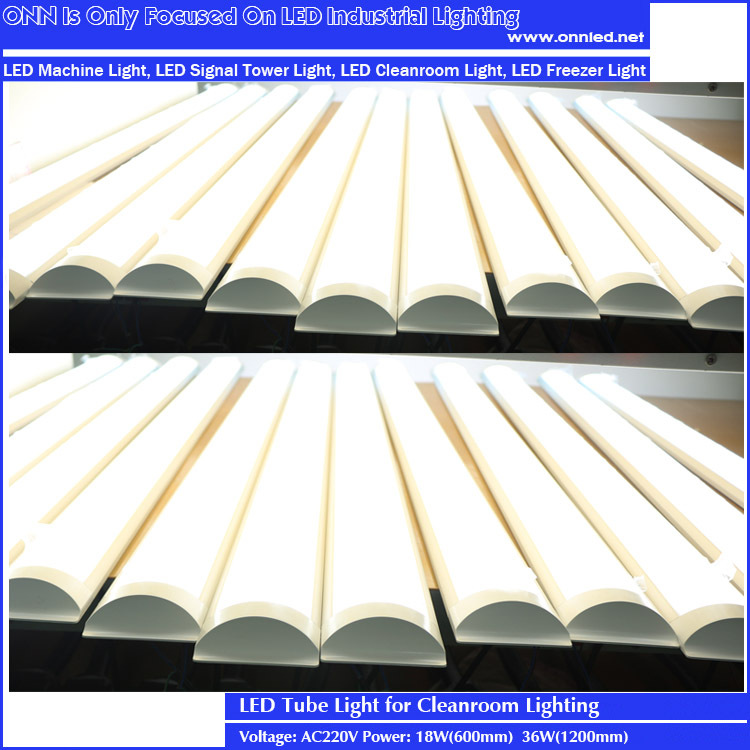

ONN-J09 modern led tube waterproof for clean room , LED Cleanroom Light, surface mounted led light 100-265V ac 18W/36W 600/1200mm
Application :
cleanroom, workplace, plant , electronic factory , hospital, office lighting , pharmaceutical workshop and other places" energy-efficient lighting.
Product Features :
1 . Outstanding energy-saving , environmental protection and long lifespan .
2 . Good heat dissipation : Alu. frame and high lumen LED .
3 . Smooth surface , beautiful and totally dust-proof .
4 . Semicircle design , super bright and light is very soft .
5 . The cable head was hidden behind lamp body,no hole site at both end-caps, without gap between the lamp body and ceiling after being installed.
6. Good thermal conductivity and no dust completely .
7. Competetive price , high cost performance .
8. 3 Years Warranty for each model .
Selling Points :
1 . High brightless . Light intensity : 18W LED ≈ 40W Fluorecent lamp .
2 . Long lifespan . It’s life is 5-10 years on average, and ONN offer 3 years of quality warranty,exempt your afte-sales service.
3 . Seamlessly install . The appearance , dustproof and thermal conductivity have been highly uniform .
4. Driver build in.
The Value-added services which ONN can supply to you :
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers
Technical Parameters :
Brand | ONN | Power | 18/36W |
Light source | SMD 2835 | Installation | Fixed by 2 screws |
Lifespan of light source | Above 50000 hours | Length(mm) | 600mm/1200mm |
Viewangle | 180° | Voltage | AC100-240V |
Luminous | 80-90 Lm/W | IP grade | IP50 |
Model | Power | Current | Voltage | Length | CCT | Light Flux(Lm) | Light efficiency(Lm/w) |
J09-C1 | 18W | 85mA | AC100-240V | 600MM | 5500-6000K | 1530 | 80-90 |
J09-C1 | 36W | 160mA | AC100-240V | 1200MM | 5500-6000K | 3060 | 80-90 |
J09-C2 | 18W | 85mA | AC100-240V | 600MM | 4000-4500K | 1530 | 80-90 |
J09-C2 | 36W | 160mA | AC100-240V | 1200MM | 4000-4500K | 3060 | 80-90 |

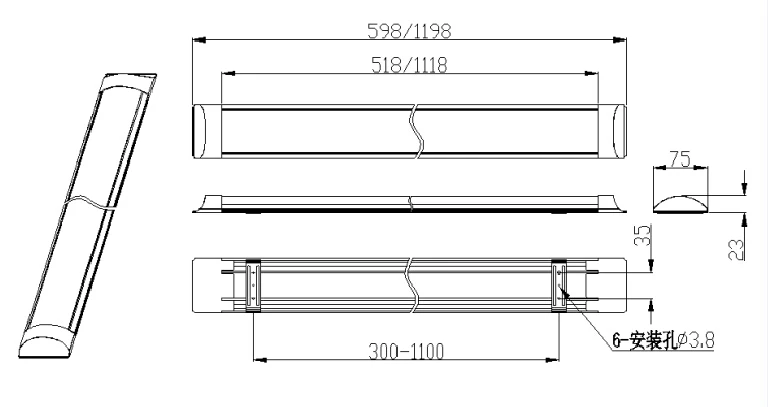

Product Size Drawing :

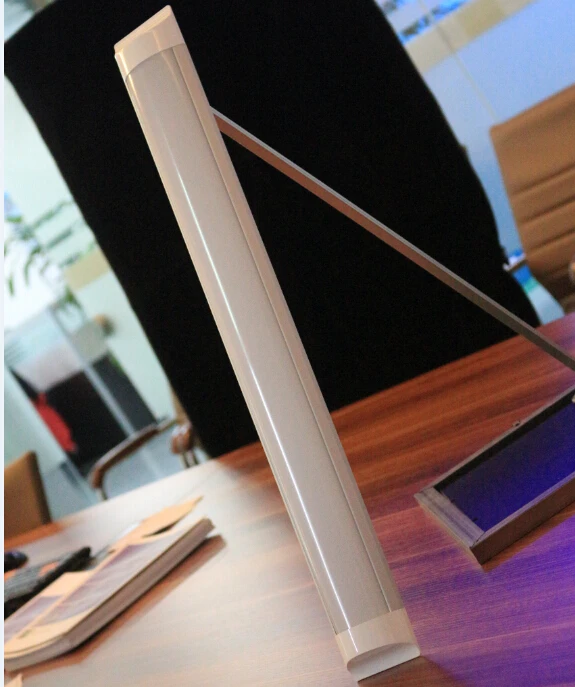

More Detail :
