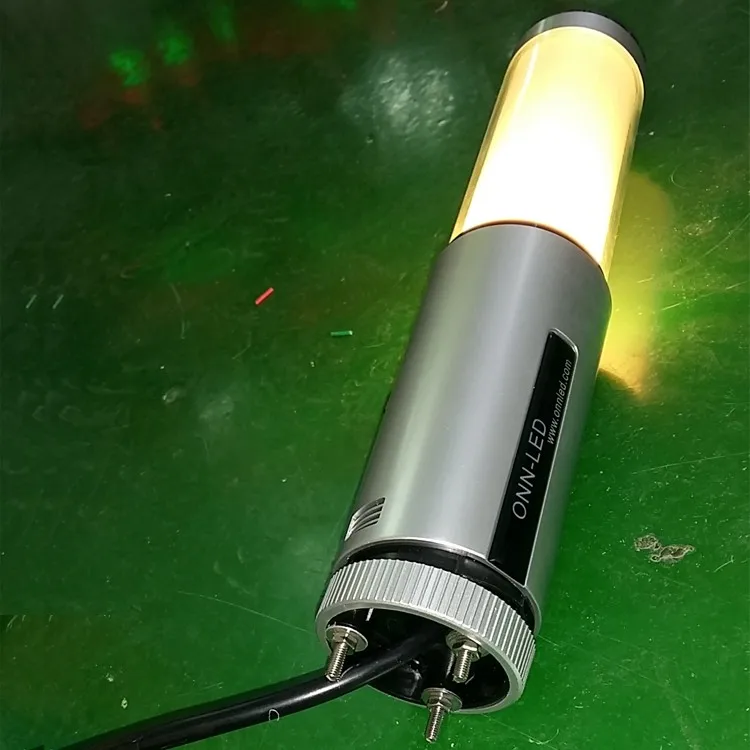

ONN-M4C Machine tool signal lamp with buzzer
Model | ONN - M4C Warning light | ||||
Voltage | DC12V/DC24V/ AC220V | Input current | 60mA~190mA | Power | 1.4W~4.5W |
Ingress Protection | IP54 | Wire output | Approx.0.5m | Body color | Silver |
light source | SMD2835 | Lifespan | 50,000hrs | Surface Temperature | <50℃ |
Buzzer | >90dB | Flash frequency | 60-70/min | Material | Lamp cover:PC Lamp housing:ABS |
Emitting angle | 360° | Color | R/Y/G | Origin | Shenzhen, China |
Certificate | CE |
|
|
|
|
Introduction:
1. Exquisite appearance with design patents, multiple functions, high cost performance.
2. Adopt high brightness LED chip, wider angle, low thermal resistance, Color area concentrated, low brightness decay with a long life span.
3. The whole structure design features good heat dissipation, high quality driver guarantees a long life time entirely.
A reasonable layout of internal electronic components, strictly ensure a high efficient work Requirement of environment:
Working temperature: | -20~45℃ |
Storage temperature: | -40~70℃ |
working humidity: | 10~90% |
Storage humidity: | 10~90% |
packing
Model | net weight (Kg) | Single carton weight(Kg) | Packing Quantity (PCS) | Inner packing size(L*W*H)mm | Outer packing size(L*W*H)mm |
M4C | 0.270 | 5.7 | 12 | 415*80*80mm | 440*265*345mm |
Repair Rule:
1. The warranty of the products is 24 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2.The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3. Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.

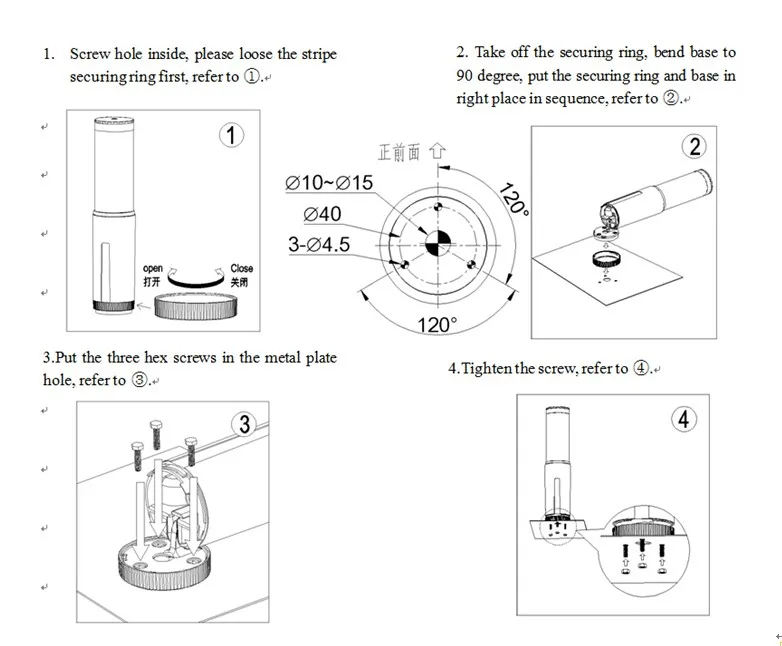

Installation
