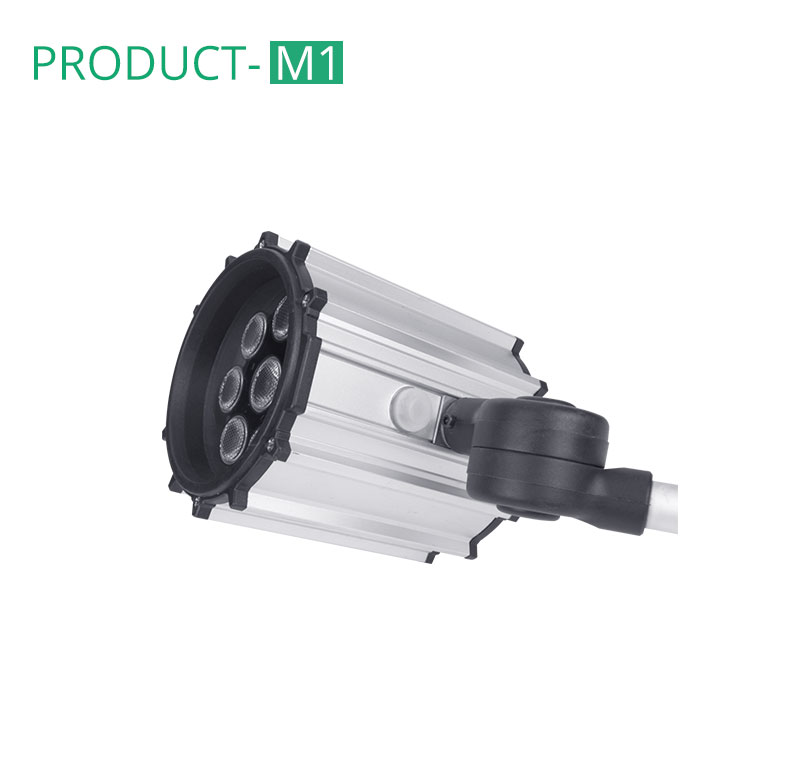

ONN-M1 110v Led work light for cnc machine IP65 CE FCC

Click on the image to view the original image

Product：	views：8ONN-M1 110v Led work light for cnc machine IP65 CE FCC
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24V/220V

Lamp Power(W):: 9.5

Lamp Luminous Flux(lm):: 800

Lamp Luminous Efficiency(lm/w):: 95

CRI (Ra>):: 80

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -25 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: BV, CCC, CE, CQC, EMC, FCC, LVD, REACH, RoHS, UL, VDE

Emitting Color:: White

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: M1

Name:: led machine work light

Power:: 7W / 9.5W

Lead time:: 7-10 days

Beam Angle:: 60 degree

Power factor:: PF>0.9

Color Temperature:: 4000-4500K / 5500-6000K

Central LUX:: 70cm: 1800-1900lux

Warranty:: 18 months

Material:: aluminum / Tempered glass

Honor Customer:: DMG Mori / Agiecharmilles / Knuth

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month Led Machine Light

Packaging & Delivery

Packaging Details: 3pcs / Innerbox , 18pcs / Carton ;1pc / Innerbox , 12pcs/Carton
Customized packing available.

Port: Shenzhen

Lead Time:

Quantity(Pieces)	1 - 6	7 - 50	51 - 100	>100
Est. Time(days)	3	7	8	To be negotiated

ONN-M1 Led Machine Work Light / Flexible Arm Light IP65 CE FCC

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	1W/PCS	Mounting	Fixed by clamp and screws
Lifespan	50000 hours	Place of Origin	Shenzhen China
Viewangle	60°	CRI	70%
Central LUX	70cm: (7W)1400Lux / (9.5W)1800-1900Lux	IP grade	IP65

Model	Power	Rated current	Voltage	CCT
ONN-M1-B1	7W/9.5W	300/400mA	24V	5500-6000K
ONN-M1-B2	7W/9.5W	300/400mA	24V	4000-4500K
ONN-M1-C1	7W/9.5W	32/43mA	220V	5500-6000K
ONN-M1-C2	7W/9.5W	32/43mA	220V	4000-4500K

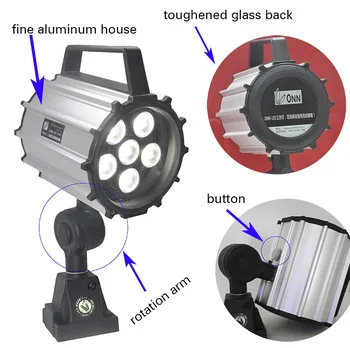

Product Features :

1. High efficiency smd 2835 . Isolated driver . Long lifespan .

2. Seamless design . IP67 Switch . Water-proof & Oil-proof .

3. Aluminum housing & tempered glass . Strong and good heat dissipation .

4. Back Light Logo Design . Can customized your Logo on the back glass .

5. IP65 CE FCC .

6. 18months Warranty .

Application :

Machine interior lighting, carved machine,sparks machine,CNC machine .
