Home > Products > New explosive proof LED light, explosion proof LED lamp ONN M9T series
New explosive proof LED light, explosion proof LED lamp ONN M9T series
Click on the image to view the original image
Product： views：5New explosive proof LED light, explosion proof LED lamp ONN M9T series
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:41
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
24V/ 100-240V
Lamp Power(W):
20
CRI (Ra>):
80
Lamp Luminous Flux(lm):
2000
IP Rating:
IP65
Working Lifetime(Hour):
50000
Working Temperature(℃):
-40 - 45
Emitting Color:
White
Certification:
BV, CCC, CE, CQC, EMC, FCC, RoHS
Place of Origin:
Guangdong, China
Base Type:
2G11
Brand Name:
ONN
Model Number:
M9T Series
Light Source:
LED
Product Name:
Explosive proof light, explosion proof light
Power supply:
build in
Rated power:
8W/12W/18W/24W
Warranty:
3-5 years
Mounting:
Surface mounting or magnetic mounting
Beam angle:
120 degree
Central LUX:
70cm 450Lux
Lead time:
5-10 days
Working temperature:
-40-50°
Length:
300/400/600/800mm
Item Type:
Explosion-proof Lights
LED Light Source:
Epistar
Lamp Luminous Efficiency(lm/w):
95
Color Temperature(CCT):
3000-6000
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Water-proof Led Machine Work Light / CNC Machine Lighting
Packaging & Delivery
Packaging Details
Water-proof Led Machine Work Light / CNC Machine Lighting
1pcs/ inner box ; 12pcs/ outer box
According to customr's requests
Port
Shenzhen, China



ONN-M9T  Explosive proof light, Water-proof Machine Work Light / CNC Machine Lighting, IP67 machine LED  lighting    8W /12W /16W /24W











 Application :





All kind of refrigeratory , assembly line Machine interior lighting, food factory, pharmaceutical factory, agriculture industry , mushroomindustry (applicable for all the places which is not easy to change place ,have the needs of water-proof, explosion-proof,it is the revolutionary alternatives of traditional "water resistant" and explosion-proof lights).





Specifications





       Water-proof Led Machine Work Light / CNC Machine Lighting

  • Super Bright Led Tube Light
  • 24v AC/DC  100-240v AC
  • CE-EMC, FCC , CCC , IP65 , ISO9001
  • 3-5 years warranty





     Water-proof Led Machine Work Light / CNC Machine Lighting

1. Specifications of Water-proof Led Machine Work Light / CNC Machine Lighting




Product Code:

ONN-M9T



Item Type

Led Machine Work Light

Input voltage:

100-240V AC   24V DC/AC

Length:

300 / 400 / 600 / 800mm

Wattage:

8w / 12w / 18w / 24w

Mounting :

Fixed with clips or Suspension

LED:

Smd 3014 or 2835

Lumens:

2000lm

Efficiency:

100lm/W

CRI:

>80

Color:

Warm white / Neutral white / Cool white

Color temp.:

2700-3200K / 4000-4500K / 5500-6500K

Beam angle:

120

Material:

Aluminium body + Tempered glass

Body color:

Silver

Certificates:

CE-EMC, FCC , CCC , IP65 , ISO9001

Life Span:

50000 Hours





2. Features of  Energy Saving Water-proof Led Machine Work Light / CNC Machine Lighting



  • Excellent Taiwan chip, high . Low thermal resistance ,good thermal condutivity , low light decay .
  • CRI> 80.
  • Large double energy-saving , long lifespan , maintenance-free man-hour cost , especially suitable for ultra-low temperature cold storage enviroments .
  • Resistant to low temperature of -40°C, no frosting , instant starting .
  • Big allowance design,imported Rubycom capacitance,increase the lifespan of driver obviously,
  • Die-casting aluminum body,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.
  • Patented construction,consise and generous,360°adjustable, surface mounting or magnetic mounting, easy installation.
  • Modular design,easy to replace once the driver failed.
  • CE FCC and IP65 certificated 3-5 years warranty .



3. Sales terms





  • MOQ: Full carton ( 12pcs ) . Accept sample order
  • Warranty: 3 Years
  • Payment: T/T, Paypal, Western Union. 30% payment in advance, balance paied before shippment.
  • Production Time: 5-7 days for sample order, 7-15 days for official order

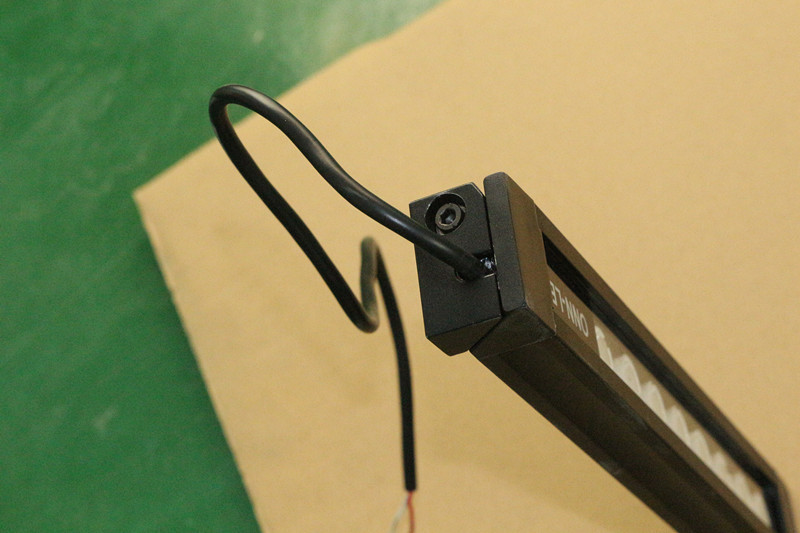

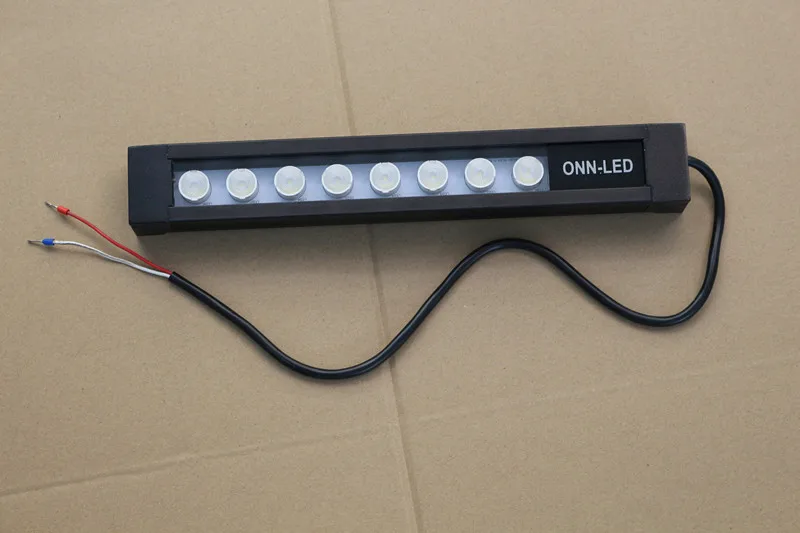

4. Pictures of Water-proof Led Machine Work Light / CNC Machine Lighting






Oil-proof and Aging Test :

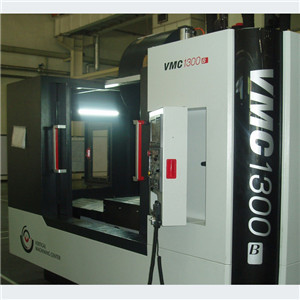

Application :

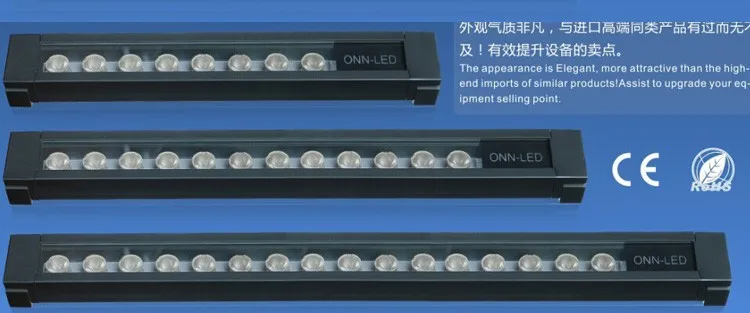

5. M series  Water-proof Led Machine Work Light / CNC Machine Lighting
