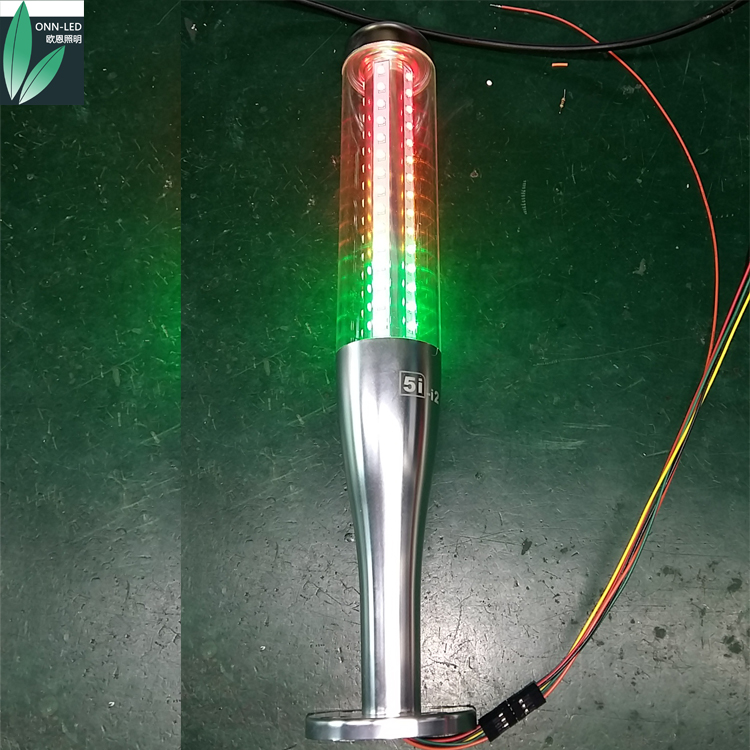

ONN-M4S Foldable Flash Led Signal Light / Flexible indicator machine light, warning light
Application :
Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface.
Product Features :
1. Adopt imported PC transparent tube , chips in linear arrangement,elegant appearance,attractive,anti-corrosion,anti-high temperature.
2. Soft curve design,pure metal texture,fine workmanship,appearance looks like baseball bat,enhancing the value of equipment.
3. Your brand can be shown on the lampbody , highlight the advertising effect of brand.
4. LED lemits color indicator light,fashion,clear and attractive.
5. High lumen SMD2835 , 50000 hours" long lifespan,avoiding the troubles of replace the the light source or indicator light.
6. Imported long-life capacitors ,ensure high-quality power-driven .
7. Aluminum PCB to ensure good heat dissipation and low light decline .
8. Directly plug installation , simple , practical , convenient for transportation .
9. Patent design of “utility model” and “appearance”.
10. Adopted by international famous machine manufacture.(DMG brand of Sandvi Group).
The Value-added services which ONN can supply to you :
1 . ONN can supply LED lighting solutions of Specific projects to you .
2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers .
Technical Parameters :
| Brand | ONN | Surface Temperature | <50°C |
| Light source | smd 2835 | Mounting | Fixed Base |
| Lifespan | 50000 hours | Voltage | DC24V |
| View angle | 360 ° | Rated Current | 80-250mA |
| Power(W) | 1-5W | IP grade | IP50 |
| ONN-M4S - A 3 B B B - 50 | |
| 1 2 3 4 5 6 7 8 | |
| 1 | Brand ONN |
| 2 | Model No.: M4S |
| 3 | Appearance : A . Baseball shape B. Fodable Type |
| 4 | Color : 3 color ( RYG ) |
| 5 | Voltage: B. DC24V |
| 6 | Wiring Mode : C. Contact Type Z. Input Directly common line is positive ( NPN ) B. Input directly common line is negative ( PNP ) |
| 7 | Function: B. Continous light F. With buzzer no flash S. Red flash no buzzer C. Red flash with buzzer D. All flash E. All flash with buzzer |
| 8 | Diameter: 50mm |
Product Size Drawing :
