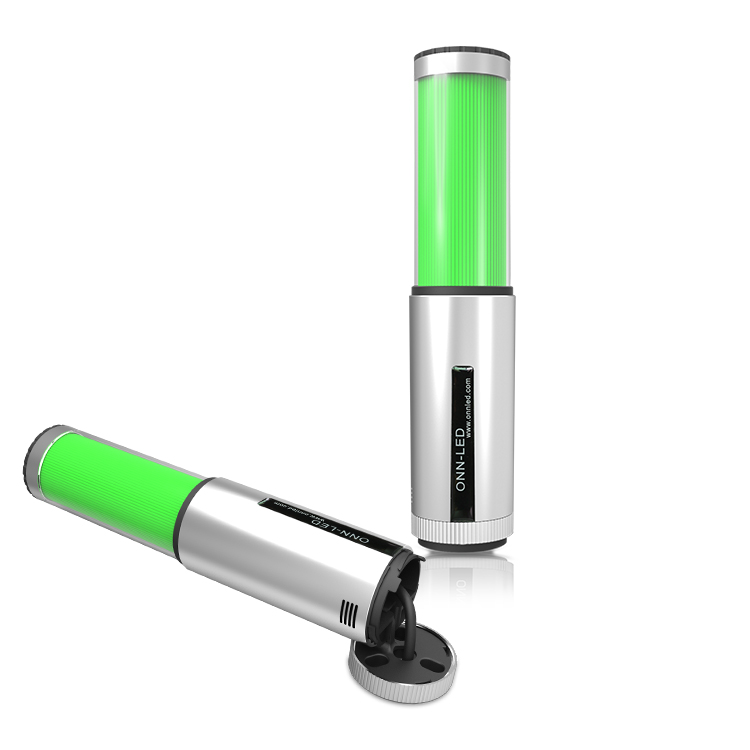

ONN-M4C led equipment indicator 24V Led Strobe Light
ONNM4C- 1 A A B C - RYG - 60 | |
Brand: | ONNM4C |
Layer: |
|
Mounting: |
|
Voltage: |
|
Function: | B. Stable F. Stable with buzzer S. Red flash C. Red flash with buzzer D.All flash E. All flash with buzzer |
Wiring: | C. Contact type T. direct Input (common+/-) |
Color: | R:Red Y:Yellow G:Green |
Diameter: | 60.Φ60mm |
Data sheet:
Model | ONN - M4C Warning light | ||||
Voltage | DC12V/DC24V/ AC220V | Input current | 60mA~190mA | Power | 1.4W~4.5W |
Ingress Protection | IP54 | Wire output | Approx.0.5m | Body color | Silver |
light source | SMD2835 | Lifespan | 50,000hrs | Surface Temperature | <50℃ |
Buzzer | >90dB | Flash frequency | 60-70/min | Material | Lamp cover:PC Lamp housing:ABS |
Emitting angle | 360° | Color | R/Y/G | Origin | Shenzhen, China |
Certificate | CE |
|
|
|
|
Requirement of environment:
Working temperature: | -20~45℃ |
Storage temperature: | -40~70℃ |
working humidity: | 10~90% |
Storage humidity: | 10~90% |
Model | net weight (Kg) | Single carton weight(Kg) | Packing Quantity (PCS) | Inner packing size(L*W*H)mm | Outer packing size(L*W*H)mm |
M4C | 0.270 | 5.7 | 12 | 415*80*80mm | 440*265*345mm |
1. The warranty of the products is 24 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2.The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3. Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
