Home > Products > ONN-M4C Led 24v indicator lamp

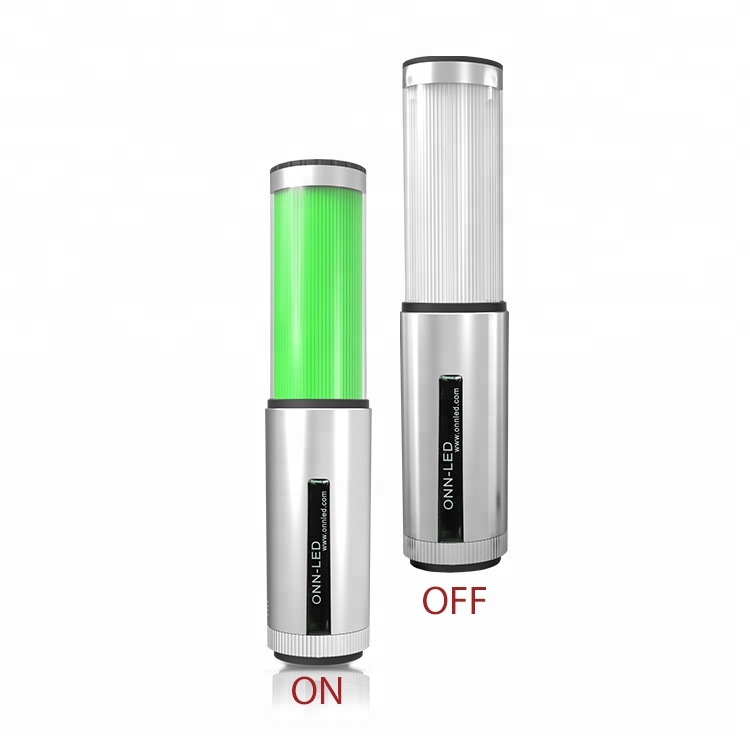

ONN-M4C Led 24v indicator lamp

Click on the image to view the original image

Product：	views：6ONN-M4C Led 24v indicator lamp
Branch：	ONN
Type：	Equipment Indicator Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Type:: Equipment Indicator Lights

Light Source:: LED

Input Voltage(V):: 12/24/220

Lamp Power(W):: 4

Lamp Luminous Flux(lm):: 400

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra):: 80

Color Temperature(CCT):: Other

Beam Angle(°):: 360

Certification:: CCC, CE, EMC, FCC, RoHS

Emitting Color:: Red Yellow Green

Lamp Body Material:: PC

Place of Origin:: Guangdong, China

Brand Name:: ONN

Item type:: Led 24v indicator lamp

Voltage:: 12/24/220V

lifespan:: 50000 Hours

luminous flux:: 100Lm/W

Mounting:: Stem disc/Collapsible/L-plate fixed

View angle:: 360 degree

Optional Specification:: Flash/Buzzer

Optional color:: R Y G B W in single layer / tri-color in one

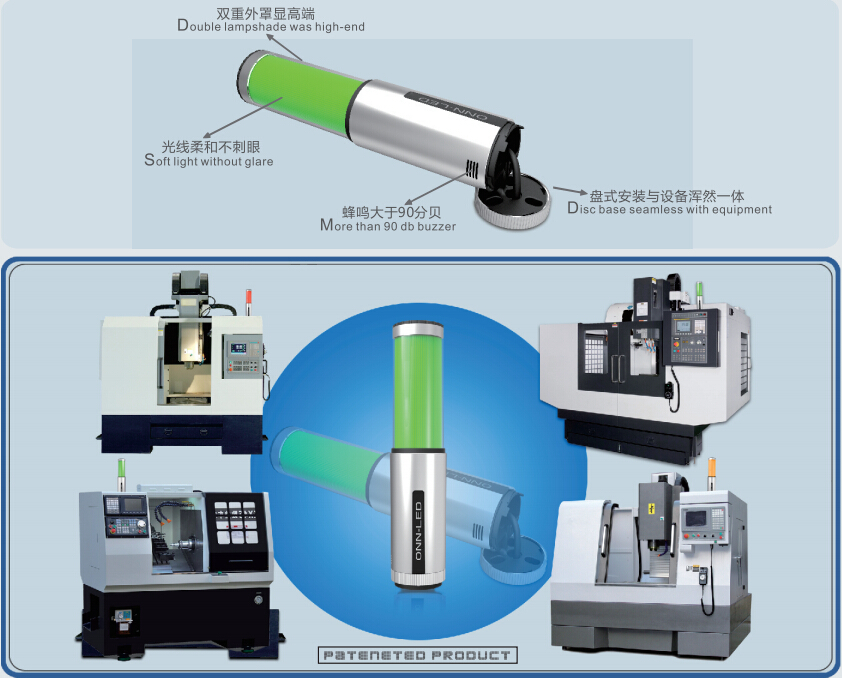

Lampshade:: Double shade design with transparent and milk white

Structure design:: Adopting integrated SCM driver.

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Led 24v indicator lamp

Packaging & Delivery

Packaging Details: Led 24v indicator lamp
1pcs/ inner box & PE bag ; 12pcs/ outer box
According to customr's requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 200	>200
Est. Time(days)	6	To be negotiated

ONN-M4C Foldable Base Led 24v indicator lamp Red Yellow Green in single layer

Technical Parameters :

Model		ONN - M4C Warning light
Voltage	DC12V/DC24V/ AC220V	Input current	60mA~190mA	Power	1.4W~4.5W
Ingress Protection	IP50	Wire output	Approx.0.5m	Body color	Silver
light source	SMD2835	Lifespan	50,000hrs	Surface Temperature	<50℃
Buzzer	>90dB	Flash frequency	60-70/min	Material	Lamp cover: PC Lamp housing: ABS
Emitting angle	360°	Color	R/Y/G	Origin	Shenzhen, China
Certificate	CE,FCC

Spec Sheet :

ONNM4C- 1 A A B C - RYG - 60
1 2 3 4 5 6 7 8

1. Brand:	ONNM4C
2. Layer:	1. One
3. Mounting	A. Foldable D. Stand upright
4. Voltage:	A.DC12V B. DC24 C. AC220V
5. Function:	B. Steady F. Steady with buzzer S. Red flash C. Red flash with buzzer D.All flash E. All flash with buzzer
6. Wiring:	C. Contact type T. direct Input (common+/-)
7. Color:	R:Red Y:Yellow G:Green
8. Diameter:	60.Φ60mm

Product Size Drawing :

Installation :

Package :

Model	net weight (Kg)	Single carton weight(Kg)	Packing Quantity (PCS)	Inner packing size(LWH)mm	Outer packing size(LWH)mm
M4C	0.270	5.7	12	4158080mm	440265345mm
