Logo customized led warning strobe lights 24V R/G/B smd2835
We can print customer logo on tower light body, show your brand!
China brand machine manufacturer use our led tower light on cnc machine fairs.
Application:
Industrial automation Industry,Industrial control automation,automation production line,security inspection device,machinery equipment,alarm system,SMT equipment,mining equipment.
3. Marking the brand name of equipment on the lamppost can be done,highlight the advertising effect of brand;
4. LED light source emits color indicator light,fashion,clear and attractive;
5. Adopt LED light source,50000hours" long lifespan,avoiding the troubles of changing the the light source or indicator light;
6. High quality power supply;
7. Easy installation and dismounting;
8. Adopted by international famous machine manufacture.(DMG brand of Sandvi Group);
9. Patent design of “utility model” and “appearance design” ;
10. A good horse matchs good saddle, high-end equipement matchs LED industrial indicator light.
11.Color bar"s appearance:baseball bat type/cylindrical type;
12.Function type flexiable,include: basic type(lighting signal common line)/flash type(with red flash but without buzzer)/buzzer type(with red flash and buzzer).
Specification:
| Brand | ONN | Surface Temperature | -20 To <45°C |
| Light source | SMD3528 | Mounting | Fixed by 4 screws |
| Lifespan of light source | 50000 hours | Rated current | Shenzhen China |
| View angle | 360 ° | Place of Origin | DC24V;AC220V 80-250mA |
| Power(W) | 1-4W | IP grade | IP50 |
| Dension(mm) | H347mm*Dia 55mm | Warranty | 18months |

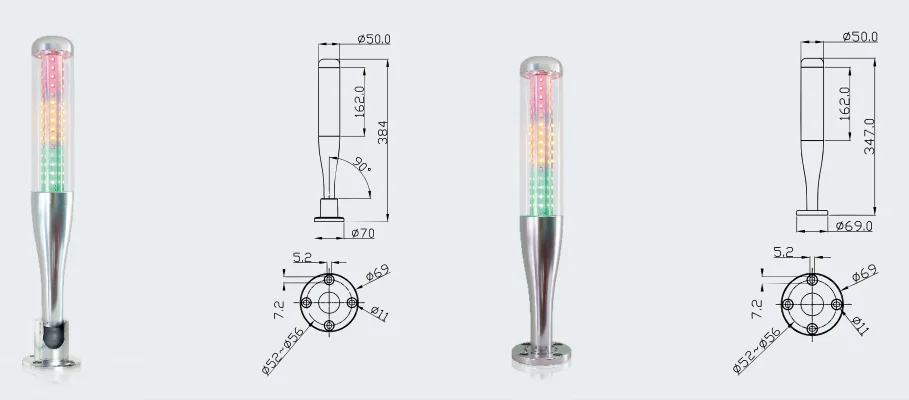

Product Size Drawing:
1. Foldable type, 90° fold.
2. Stand pole

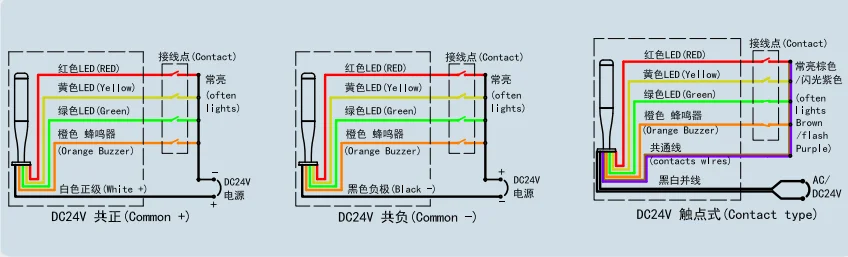

Wire connection diagram:

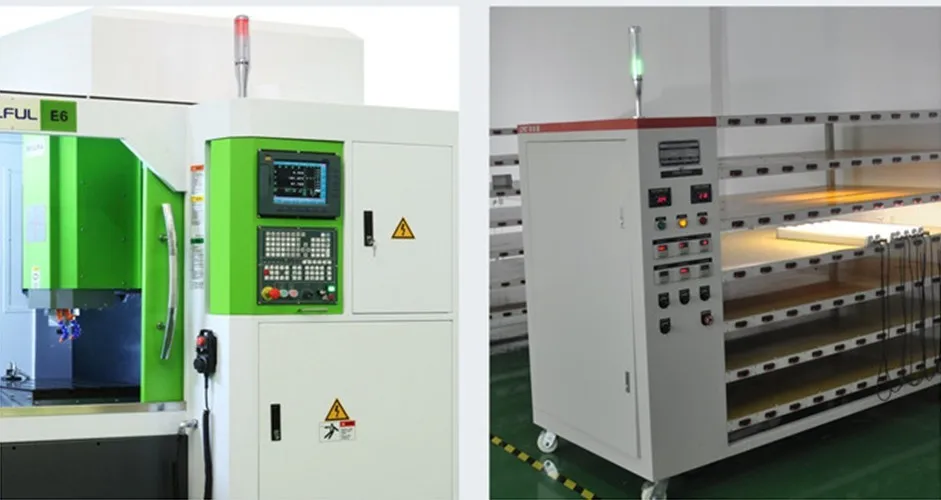

Product display:
Accessories:
ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located
in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial
lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer
lights.
Since the products launched market for nearly 8 years,ONN has experienced 50 trade
fairs,created 8 new pratical patents,22 appearance patents and a series of related
certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN
also passed ISO9001,with professional R&D team which is backbone for technology and
quality,was indentified as Natioinal High-tech Enterprise.
More information pls click website:View***
Certificate:
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.
3.18 months warranty,in the period,when light is not work or some components failed,can free to replace or send a new one;
4.OEM provide;
5. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)
1. Our Standard Export Packing. Customized packing is avaible for MOQ order.
2. Delivery time: samples 7-10 days, mass order 10-15 days.
3. Shipping: by international express, by air or by ship.
Q1.How many colors can choose?
A1:Total 5 colors options,include Red,Yellow,Green,Blue&White;
Q2: How about the functions?Can I customize it?
A2:We have 5 functions to choose,they are Continous lighting(basic type);Continous lighting with buzzer;
flash type(with red flash but without buzzer)/buzzer type(with red flash and buzzer);All colors of lamps no matter how many layers all flash;
Yes,Can cusotimize,can customize flash,buzzer and continous lighting according to your requirement.
Q3:How about the power? What watts of 1 chips? How about the current? How many voltage you have?Is the DC24V and AC24V can swap it? Compatible?
A3:1 chip 0.06w/pcs,single color is 1.8w,total power not exceed 5w;We have DC24V/AC220V options,
and DC24V is standard;DC24V and AC24V can"t compatible.
Q4:How many installations?
A4:Pole type/Plate pole type.
Q5:Why I need trust you and choose you to be my supplier?
A5:Because we are focus on led machine warning lights for years since 2005,10 years experience accumulate,
we have strong R&D department and engineers to slove any problems about it,also we can provdie lighting issue for you if needs;we have cooperated with many clients,like world famous Machinery Group"KNUTH" and AgieCharmilles,in domestic,the world 500 top company " Shenyang Machine Tool" ,yes is our partners.

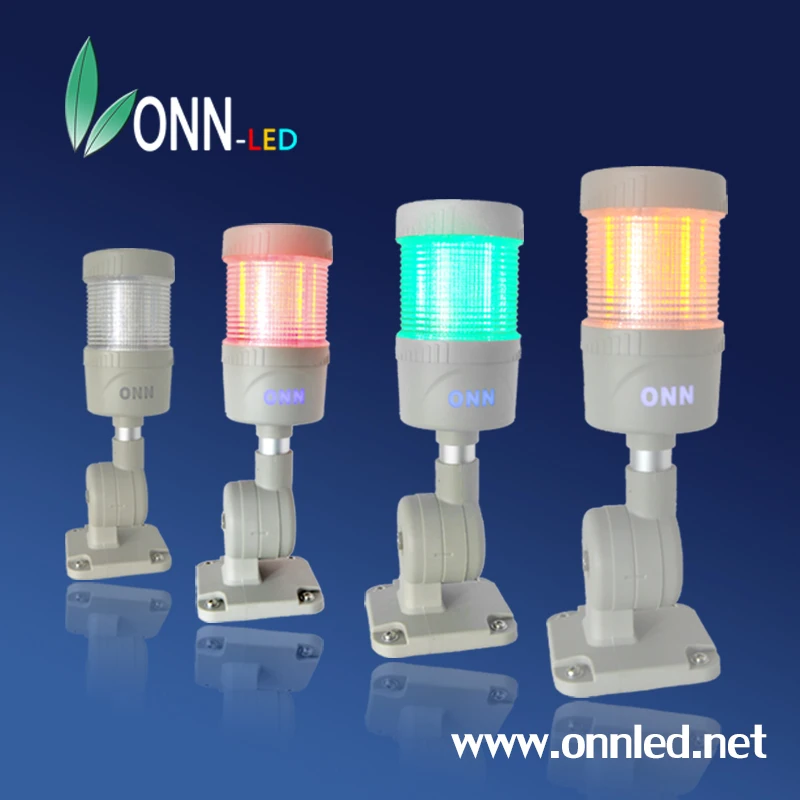

ONN M4-1 led warning strobe lights -L shape type installation:
ONN-M4 led warning strobe lights with flash and buzzer:
ONN-M4 Tri color Single layer led warning strobe lights with flash and buzzer:
ONN-M4T New Product of Tri color led warning strobe lights with flash and buzzer:
LED M4 Series warning lights:

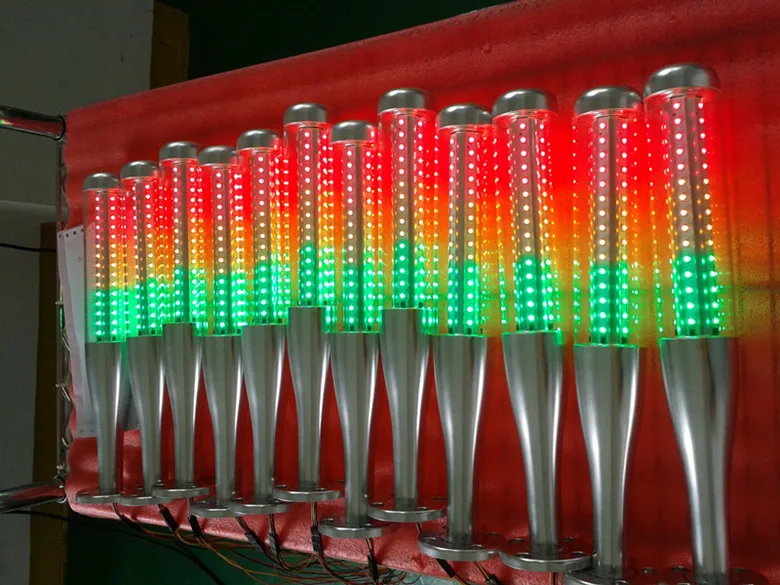

Before lights dispatched from our factory,we will arrange strict test of waterproof test,aging test and some relative test.
