ONN-X08 Water-proof Led tube light for freezer refrigerator

Click on the image to view the original image

Product：	views：4ONN-X08 Water-proof Led tube light for freezer refrigerator
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Light Source:: LED

Item Type:: Refrigerator Lamps, Water-proof Led tube light for freezer refrigerator

Surface Treatment:: Other

Input Voltage(V):: 12/24/220

Lamp Power(W):: 20

Lamp Luminous Flux(lm):: 2000

CRI (Ra>):: 80

Color Temperature(CCT):: 2800-3200 / 4000-4500 / 5500-6000K

Working Temperature(℃):: -18 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, FCC, RoHS

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-X08

Voltage:: 100 - 220V

Light source:: SMD 2835

Power Rating:: 6.5W / 8W /16W /18W

Length:: 575/820/1300/1630mm

View angle:: 120 degree

luminous flux:: 100-110Lm/W

CCT:: 2700-3200K&4000-4500K&5500-6500K

Protection:: IP65

Appearance design:: Cooler door led tube light

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Water-proof Led tube light for freezer refrigerator

Packaging & Delivery

Packaging Details: 1pcs/ inner box + PE bag; 50pcs/ outer box
Water-proof Led tube light for freezer refrigerator

Port: Shenzhen, China

Lead Time:

Quantity(Meters)	1 - 50	51 - 200	201 - 500	>500
Est. Time(days)	5	7	8	To be negotiated

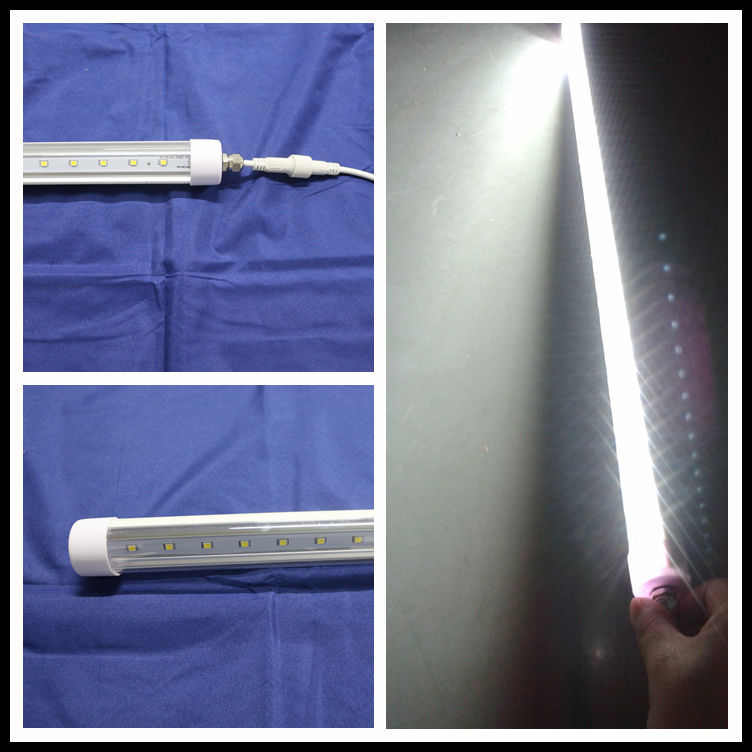

ONN-X08 ip65 Water-proof Led tube light for freezer refrigerator AC220V

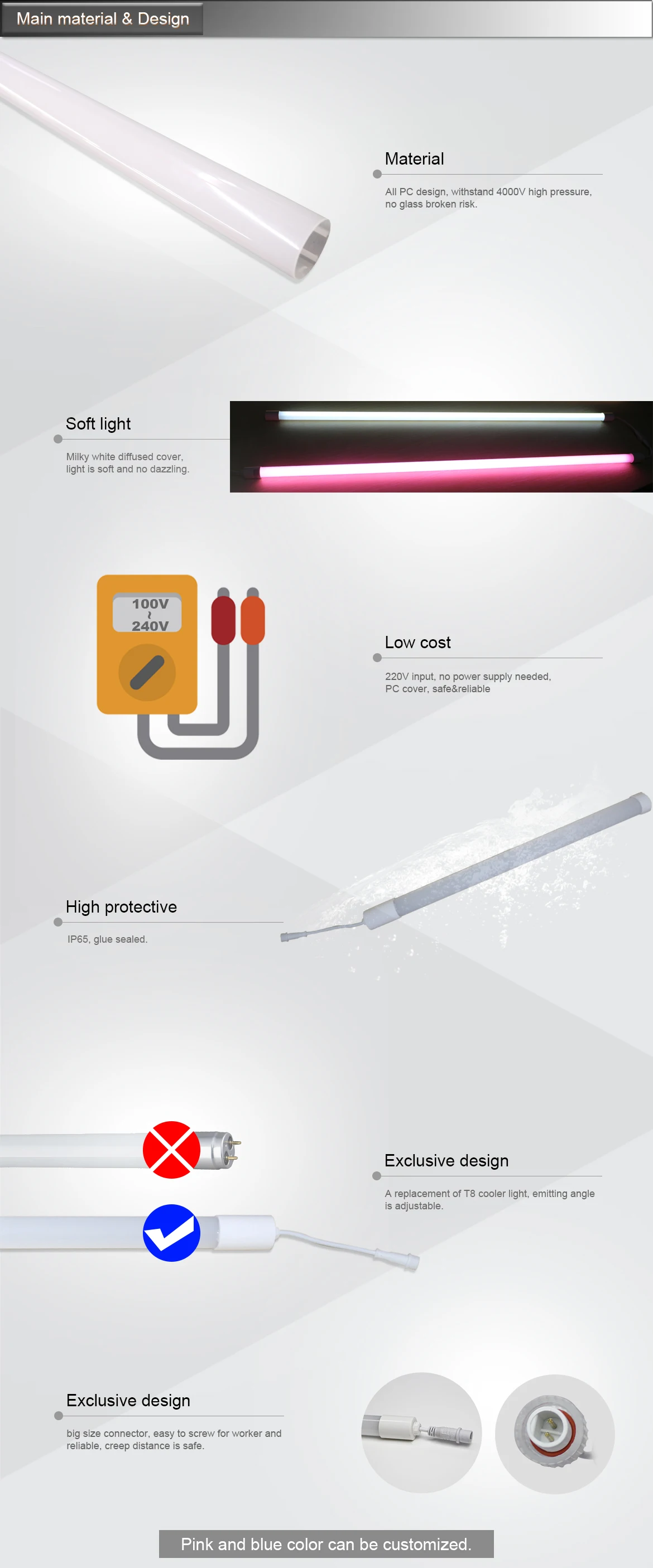

Product Features :

1. Energy Saving,Long Lifespan. Intergrated whole plastic tube . exquisite and beautiful.

2. Emitting different CCT light according to customer requirements,can make a more better display effection for goods.

3. Adopt universal IP67 connector , water-proof is more better .

4. All adapter with dampproof rubber gasket, IP65 after PCBA dampproof treatment;light source and driver IP67 after guming treatment.

5. Use silicone to protect the chips , high IP grade .

6. Circular design , Intergrated PC tube , driver inside , save cost and easy installation .

7. Small size ,space saving; easy dismantling,easy packing and shipment .

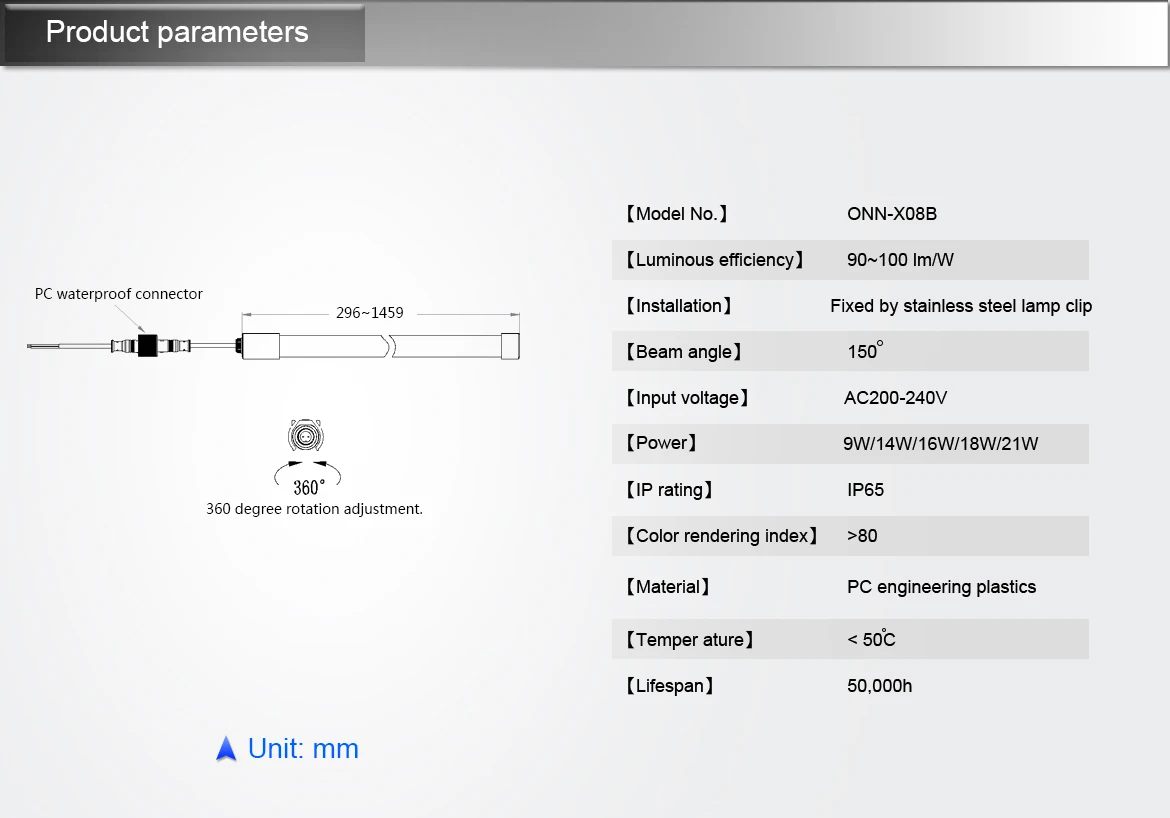

Technical Parameters :

Model	Nominal Voltage		Voltage Rang			CCT

ONN-X08-C1	AC220V (50/60Hz)		AC100-240V (50/60Hz)			5500-6000K
ONN-X08-C2	AC220V (50/60Hz)		AC100-240V (50/60Hz)			4000-4500K
ONN-X08-C3	AC220V (50/60Hz)		AC100-240V (50/60Hz)			2800-3200K
Wire Length	Around 0.3M(standard)
Installation	Fixed with Clip
Lamp Length	575mm	820mm		1025mm	1300mm		1630mm
Power	6.5W	8W		13.5W	16W		18W
Input Current	(220V)	(220V)		(220V)	(220V)		(220V)
	60mA	73mA		123mA	145mA		162mA
Luminous Flux	685 Lm	880 Lm		1382 Lm	1650 Lm		1900 Lm
Protection	IP54		CRI	Ra 80
Efficiency	100-110lum/w		PF	0.9
Surface temperature	60℃		Beam Angle	120°
