24V 20W CNC LED Machine Lamps IP65 Waterproof/Oil-proof/Dust-proof Tri-proof M9T
Click on the image to view the original image
Product： views：724V 20W CNC LED Machine Lamps IP65 Waterproof/Oil-proof/Dust-proof Tri-proof M9T
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:41
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
24V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Color Temperature(CCT):
NW,CW
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65, IP65
Certification:
CE
Emitting Color:
White
Lamp Body Material:
Aluminum Alloy
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
M9T
Item type:
cnc led machine lamps
Light source:
LED,high power 1-3w/pcs
Lifespan of source:
50000hrs
Color Temperature:
4000-5500K,5500k-6000K
Central Lux:
850LUX at 70cm
Power:
8.5w/13w/16w/20w
Voltage:
24V machine tool working lamps
Beam angle:
60 degrees
Certificate:
CE
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month machine tool working lamps
Packaging & Delivery
Packaging Details
6pcs/carton;Neutral carton package for export.
Port
shenzhen,any port of china.

24V 20W CNC LED Machine Lamps IP65 Waterproof/Oil-proof/Dust-proof Tri-proof M9T













Application:



used on machinery equipment, CNC machine , Sculptor,Electrical Discharge Machine,Laser Welder,Grinder,etc .









Product feature

 Selliing points

1.The appearance is elegant,more attractive than the hgh-end imports similar products!

Assist to upgrade your equipment selling point;

2.Can print your logo in the lamp body,brilliant logo,can highlight the noble qualities of you machines;

3.Ultra-small aesthetic design,can space-saing,can be installed in different styles of machine,a veritable

universal fixtures;

4.After the bottom of the lamp installed rotatable mounts,can freely adjust the angle according to holder,

enhance freedom of light;

5.By adjusting the light angle,not only can achieve the highest light eficient,but also can avoid the light to

damage your eyes;

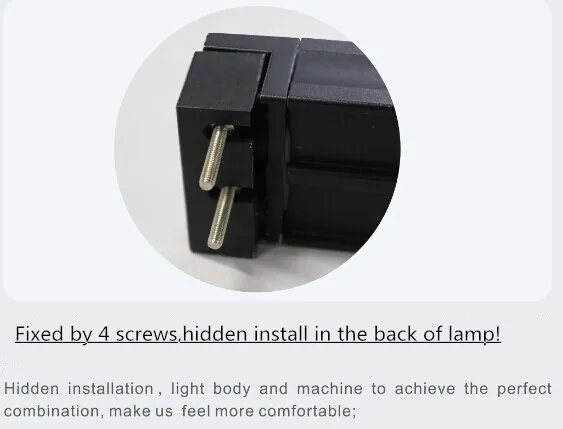

6.Hidden installation,light body and machine to achieve the perfect combination,make us feel more comfortable;

7.Human sesory design,perfect lines,comfortable feel,even the machine,can make your daily life becomes warm and happy;

8.The light source through the optical lens is more concentrated,greatly enhance the lighting brightness,also avoid the light to demage your eyes;

9.Super dust-proof design,absolutely avoid dust and other objects get into lamp;water-proof level can reach 5 grade,absolutely prevent the water jet from any direction intrust the lamp body,to protect lamps.

10.Energy saving at lest 60%,compare with traditional fluorescent lamps;

11.Adopt long lifespan led beads,50000hrs long life;compare with other famous machine work light,the quality is really well;

12.We promise 18 months warranty;acturally can used several years;

13.We provide best quality and best sales-service,so never worried if the lights bad,we will take measure to solve problems prompt,or we can send a new one for you;





Technical Parameter:

BrandONNEnvironment temperature-20 to <50°C
Light sourceled,1-3W/pcsMountingfixed by screws
Lifespan of light source50000hours Place of originShenzhen, China
View angle60°IP grade IP65
Central LUX850Lm at 70cmLength280/380/480/580mm



ModelPower(W)VoltageCCT
ONN-M9T-B18.5w/13w/16w/20w 24V5500-6000K
ONN-M9T-B28.5w/13w/16w/20w 24V4000-4500K

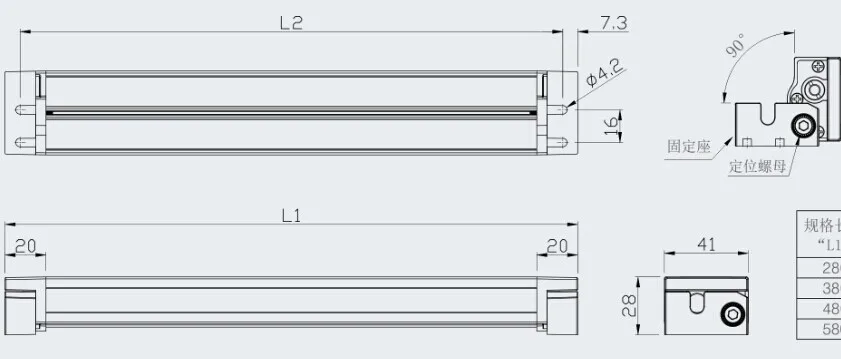

Product Size Drawing:

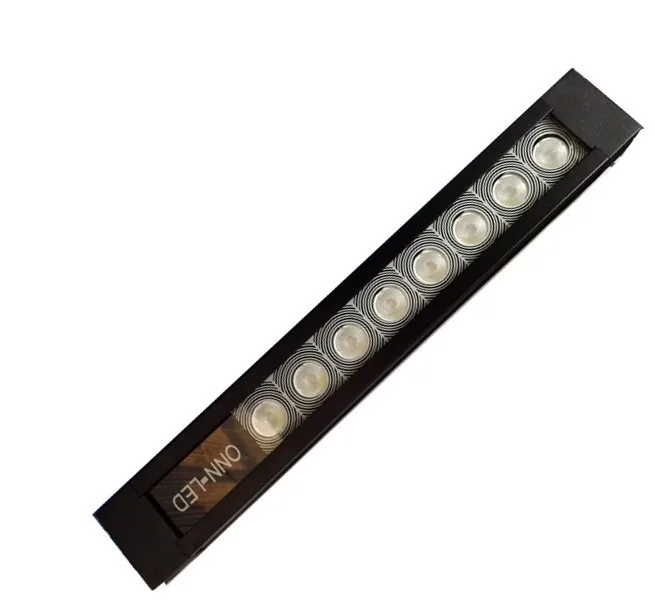

product display:





Application:















Packaging & Shipping



1. Our Standard Export Packing. Customized packing is avaible for MOQ

order.

2. Delivery time: samples 7-10 days, mass order 10-20 days.

3. Shipping: by international express, by air or by ship.















Our Services



1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your

customers,convenient for you to recommend to your customers.

3.18 months warranty,in the period,when light is not work or some

components failed,can free to replace or send a new one;

4.OEM provide;

5. Maintenance freeonce broken,we"ll take steps to solve problem in 48

hours.(work time:From Monday-Saturday 8:30am-18:00pm)







Company Information



ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.



 Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.





 HK lighting fair and visitors to company:

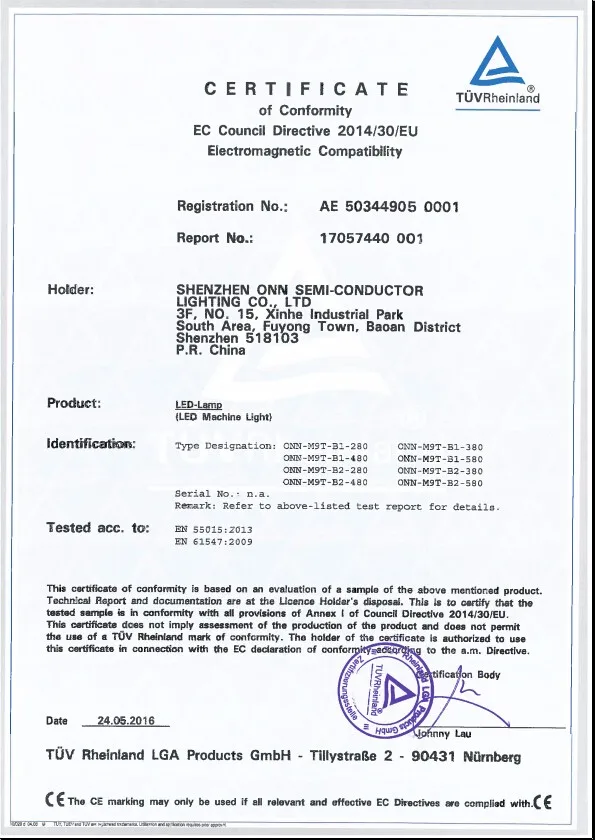

Certificate:









More similar product

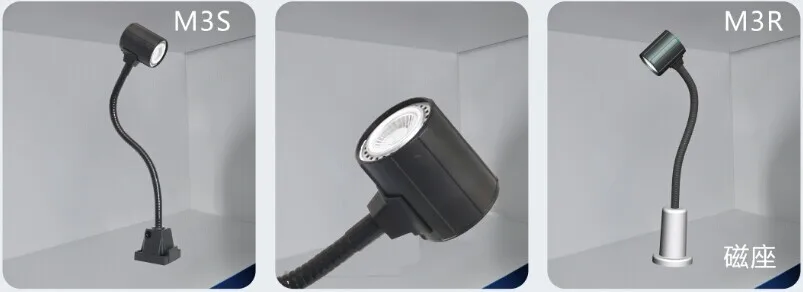

ONN Product Range:
1.LED Machine Light;
2.LED Warning Light;
3.LED Clean room tube Light;
4.LED Freezer Light
5.LED Cabinet Light.





More information pls contact me:



ATTEN: Amy Liu



SKYPE:laura.lu67





Before lights dispatched from our factory,we will arrange strict test of waterproof test,aging test and some relative test.
