Factory Price Led Gooseneck Light for Machines ONN-M3S

Click on the image to view the original image

Product：	views：4Factory Price Led Gooseneck Light for Machines ONN-M3S
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24/220

Lamp Power(W):: 4.5

Lamp Luminous Flux(lm):: 400

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Color Temperature(CCT):: 2700-3200K / 4000-4500K / 5500-6000K

Working Temperature(℃):: -20 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, EMC, FCC, RoHS

Emitting Color:: White

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Item type:: Factory Price Led Gooseneck Light for Machines

Voltage:: 24 / 220V

Power:: 5W

Working temperature:: -20-45℃

luminous flux:: 100Lm/W

Lamp head:: Aluminum

Mounting:: Fixed by Screws

Central Lux:: 70cm:650-750Lux

View angle:: 45 degree

IP Grade:: IP65

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Factory Price Led Gooseneck Light for Machines

Packaging & Delivery

Packaging Details: 1pcs/inner box;6 inner boxes/carton;
According to customr's requests
Factory Price Led Gooseneck Light for Machines

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 200	>200
Est. Time(days)	7	To be negotiated

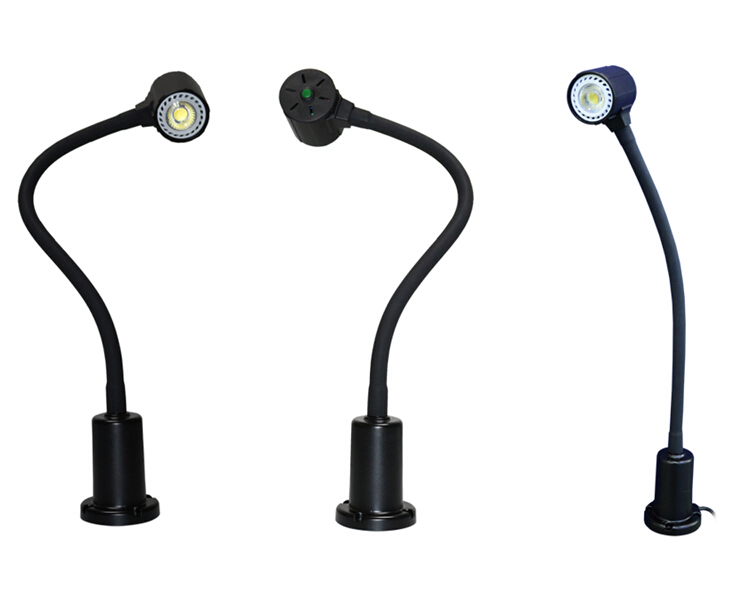

ONN-M3S 5w Factory Price Led Gooseneck Light for Machines 24v / 100-240v

Product Features :

1. Imported hi-power beads, Super bright .

2. Aluminum Lamp head , with good heat dissipation .

3. On / Off Switch .

4. Special transmition block . Strong and exquisite .

5. Good hardness for the flexible pipe,free illumination angle.

6. Fixed base just need mounting with screws . Optional magnetic base available which enables the light to be attached to any machine .

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Power	4.5W	Mounting	Fixed by clamp and screws
Lifespan of light source	50000 hours	Place of Origi	Shenzhen China
Viewangle	45°	CRI	80%
Central LUX	70cm: 650-750Lux	IP grade	IP40

Model	Power	Voltage	CCT	Beam Angle	IP	Base
ONN-M3S-B1	4.5W	AC/DC24V	5500-6000K	45 degree	40	Fixed Base
ONN-M3S-B2	4.5W	AC/DC24V	4000-4000K	45 degree	40	Fixed Base
ONN-M3S-C1	4.5W	AC100-240V	5500-6000K	45 degree	40	Fixed Base
ONN-M3S-C2	4.5W	AC100-240V	4000-4500K	45 degree	40	Fixed Base

Product size drawing:

Package Data :

Qty/carton	20pcs/carton
Carton Size	L620W380H460mm
Net Weight	11.6kg
Gross Weight	16kg

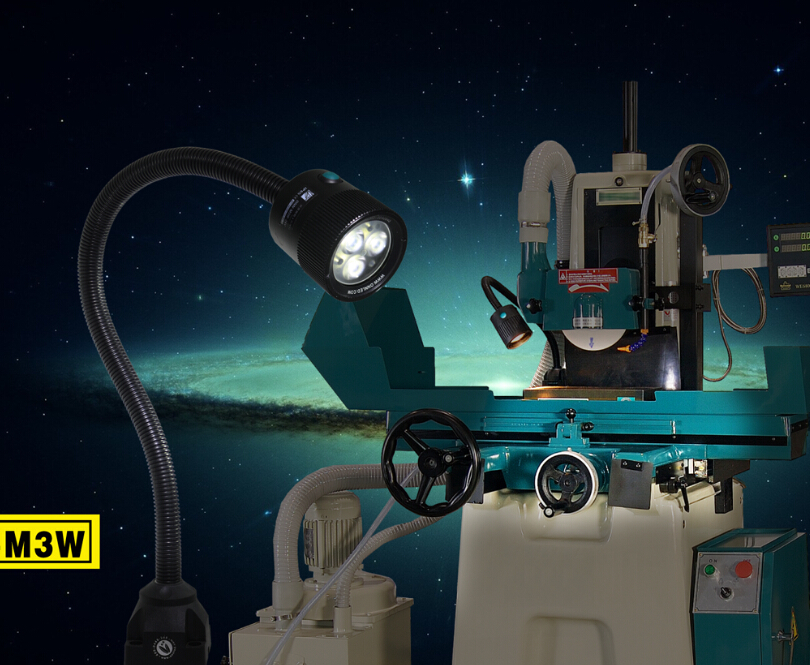

Application :

Mold maintenance lighting , workbench lighting , laser machinery , ceramic machinery. Medical equipment , automated production lines , engraving equipment , stamping equipment lighting ,
