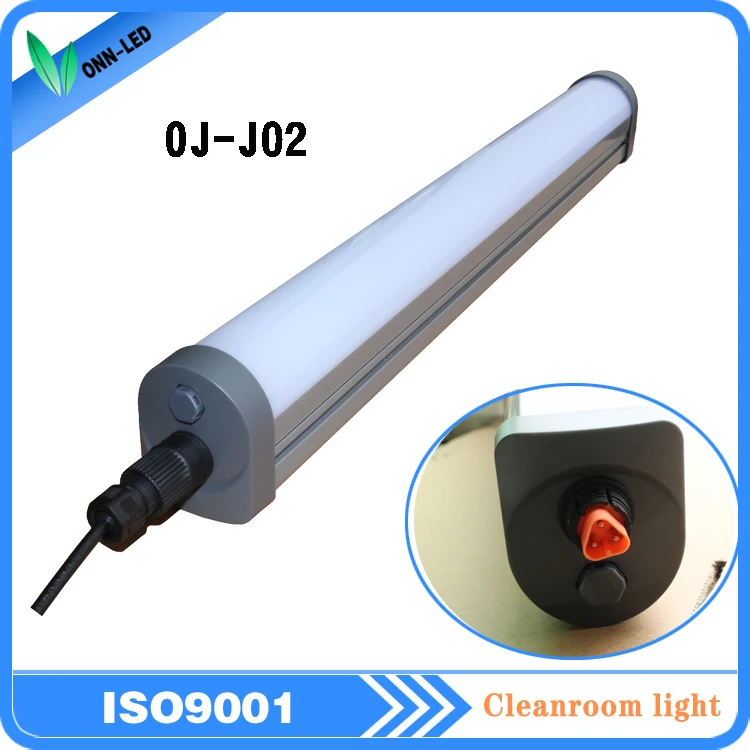

Waterproof 110v PC IP65 Led resident tube light

Click on the image to view the original image

Product：	views：5Waterproof 110v PC IP65 Led resident tube light
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Input Voltage(V):: 100-240

Lamp Power(W):: 55

CRI (Ra>):: 80

Lamp Luminous Flux(lm):: 5000

IP Rating:: IP65

Working Lifetime(Hour):: 50000

Working Temperature(℃):: -40 - 45

Emitting Color:: White

Certification:: CCC, CE

Place of Origin:: Guangdong, China

Base Type:: ip68 fast connector

Brand Name:: ONN

Model Number:: J02

Light Source:: LED

Item type:: p65 tri-proof led light

Beam angle:: 160 degrees

Color temperature:: 4000-4500K/5500-6000K

Light efficiency:: 95-105Lm/w

Lamp power:: 20w/40w/55w

Light flux:: 1900Lm-5775Lm

Voltage:: AC220V

Installation type:: freestanding or threaded style

IP rating:: IP65

Certificate:: CE

Item Type:: Explosion-proof Lights

Color Temperature(CCT):: Pure White

LED Light Source:: SMD2835

Lamp Luminous Efficiency(lm/w):: 95

Supply Ability

Supply Ability:: 20000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Our Standard Export Packing. 25pcs/CTN.

Port: shenzhen

Waterproof 110v PC IP65 Led resident tube light

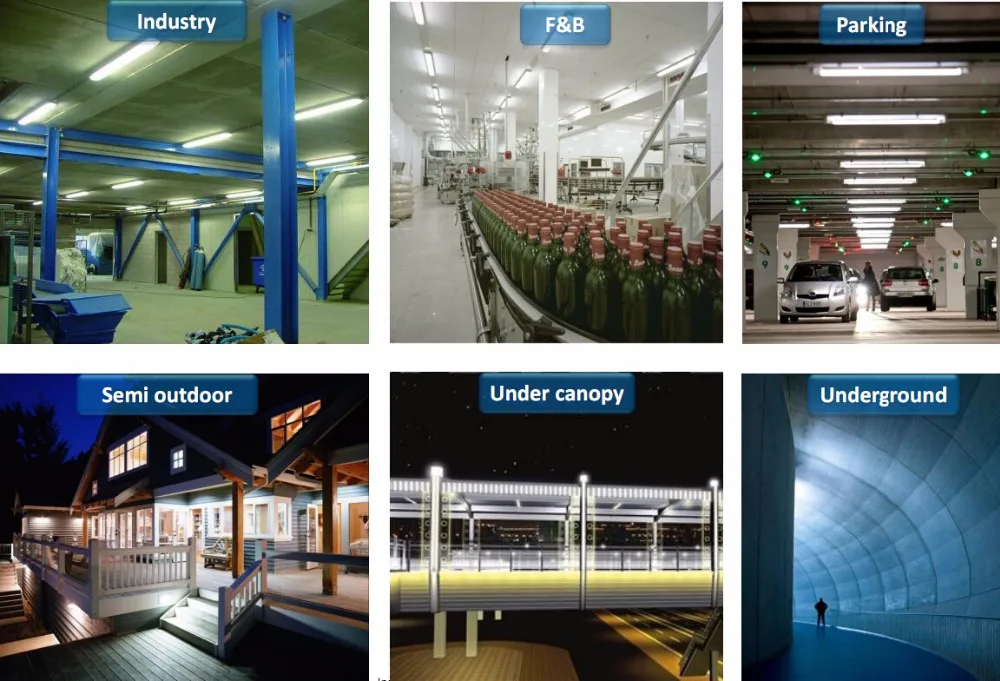

Application

Indoor freezer/humidity/moisture/dust place
Factory, workshop, production line, warehouse, mining area, basement, storage, ect.
semi outdoor using.
parking lost, high way lighting, airport, train station, bus station, subway, metro sation, petro station, etc.

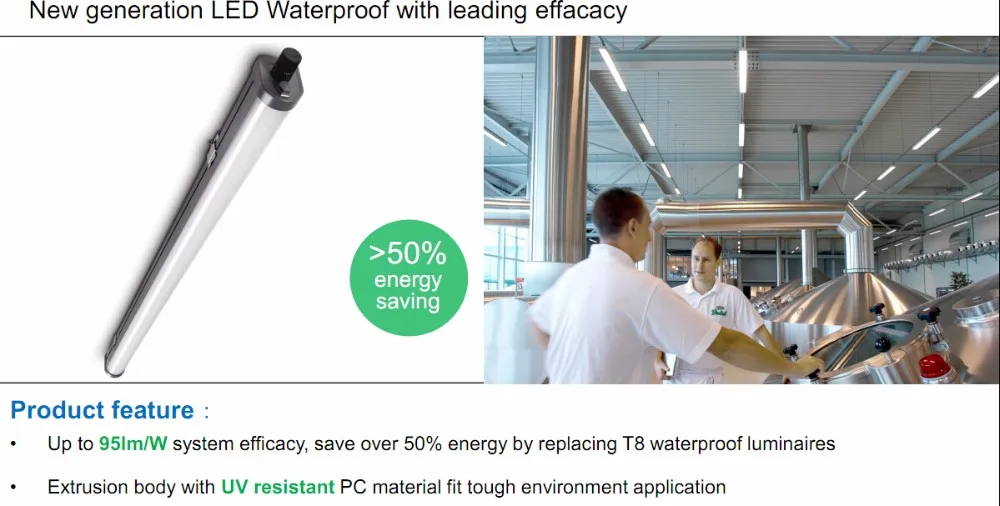

Feature

Easy installation and maintenance, metal clips installation.
100% IP65 waterproof, one piece PC extrusion technology.
3 years anti-yellowing, long life time.
Breather design to balance the air pressure inside the lights.
No inner tubes compared with traditional ones, cost saving.
big size aluminum PCB board, excellent heat disspation.
suitable for semi outdoor places like flyovers, parking lot, warehouse, etc.

Specification:

Model	Voltage	Power	Lumen	Lifetime	IP rating	Sizes
ONN-J026-20W	AC100-240V	20w	1900-2100Lm	50000hrs	IP65	6505874mm
ONN-J02-40W	AC100-240V	40w	3800-4200Lm	50000hrs	IP65	12005874mm
ONN-J02-55W	AC100-240V	55w	5225-5775Lm	50000hrs	IP65	12005874mm

Application:

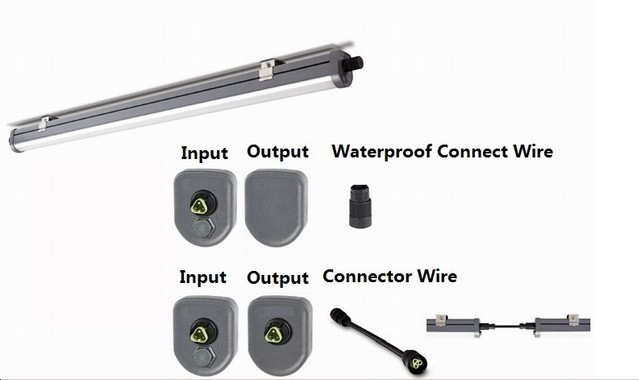

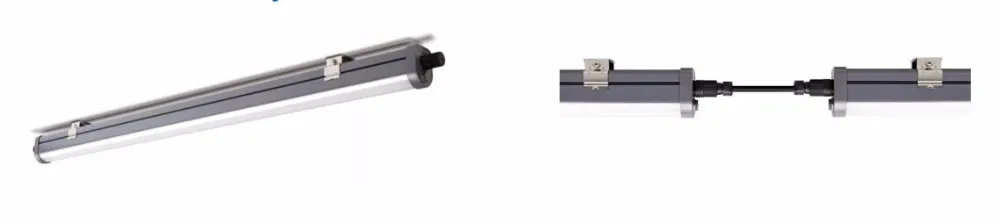

Two ways connection

Stand alone connectable

Product details

Easy Installation

LED tube installation is very complicated, need to open and wiring again, position hole is fixed, low flexibility.

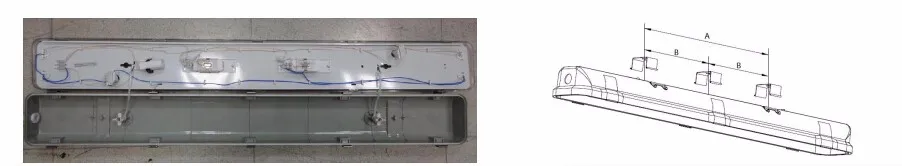

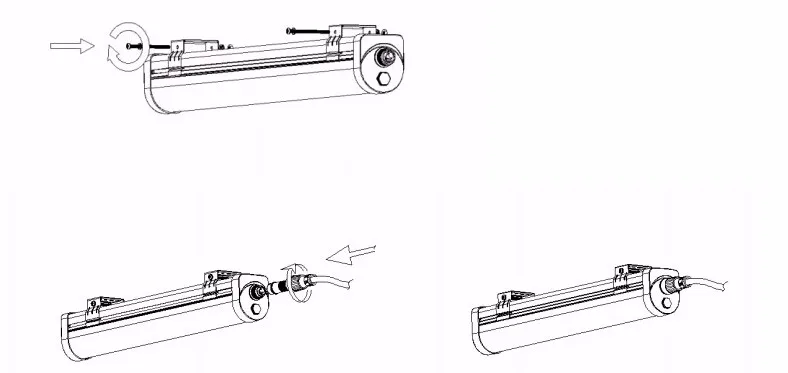

Onn-J02 INSTALLATION

ONN-J02 is waterproof and connected by a IP68 connector, can choose any positaion in the housing for isntallation, the metal clip can sliped in any position.

Company Information

Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao"an district , our company focus in led machine tools light, led freezer light and cleanroom. we believe FOCUS will gather our R&D and workers strength to present our customers elite products. Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.

We look forward to work with you, provide you high quality product and build win win cooperation.
