Home > Products > ONN-X3F Center Design Cheap Led Freezer Light IP65

ONN-X3F Center Design Cheap Led Freezer Light IP65

Click on the image to view the original image

Product：	views：7ONN-X3F Center Design Cheap Led Freezer Light IP65
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:41

Product Details

Overview

Quick Details

Light Source:: LED

Item Type:: Refrigerator Lamps, Led Freezer Light

Surface Treatment:: Other

Input Voltage(V):: 12/24/220

Lamp Power(W):: 20

Lamp Luminous Flux(lm):: 2000

CRI (Ra>):: 80

Color Temperature(CCT):: 2800-3200 / 4000-4500 / 5500-6000K

Working Temperature(℃):: -18 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, FCC, RoHS

Base Type:: 2G11

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-X3F

Voltage:: 12V / 24V / 220V

Light source:: SMD 2835

Power Rating:: 12W / 20W /24W /28W

Length:: 975/1340/1500/1800mm

View angle:: 210 degree

luminous flux:: 100Lm/W

CCT:: 2700-3200K&4000-4500K&5500-6500K

lifespan:: 50000 Hours

Appearance design:: Two led strip on both side expecially for center

LED Light Source:: SMD 2835

Lamp Luminous Efficiency(lm/w):: 110

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Led Freezer Light

Packaging & Delivery

Packaging Details: 1pcs/ inner box + PE bag; 50pcs/ outer box
According to customer's requests

Port: Shenzhen, China

ONN-X3F Center Design Cheap Led Freezer Light IP65 4ft 5ft 6ft 12v/24v/220v

Application :

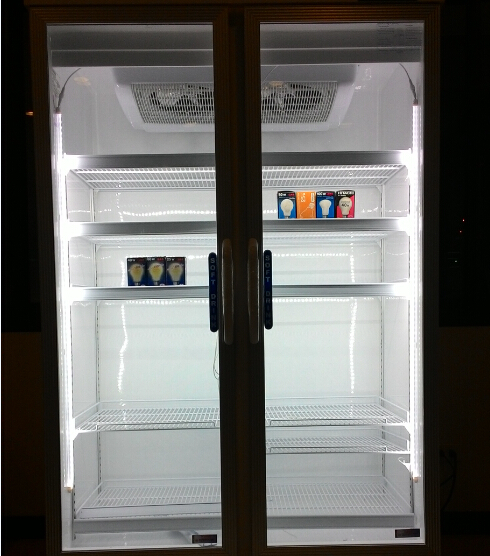

Freezer inner illumination,refrigeratory inner illumination,bakery and confectionery,pharmaceutical factory,fishery industry,edible mushrooms industry(suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof” lights )

Product Features :

1. X3F have all the advantages of led fixture like Energy saving, long lifespan, CCT dimmable, which is the inevitable tend.

2. All vapor sealed, don’t have to concern about the water drop or moisture formed by steam.

3. Adopt high brightness SMD2835 LED chip, it features wider angle,low thermal resistance, Color area

concentrated, low brightness decay with a long life span, best choice for light fixture

4. Ingress protection is up to IP65, safe to use.

5. Slim body, diversified installation method, easy and safe.

Technical Parameters :

Model	Tube length(mm)	Fitting length(mm)	Voltage	Power
X3F-375	315	380	220V AC(50/60Hz)	8W
X3F-550	490	555	220V AC(50/60Hz)	11W
X3F-635	575	640	220V AC(50/60Hz)	12W
X3F-800	740	805	220V AC(50/60Hz)	16W
X3F-935	875	940	220V AC(50/60Hz)	18W
X3F-1085	1025	1090	220V AC(50/60Hz)	20W
X3F-1235	1175	1240	220V AC(50/60Hz)	24W
X3F-1495	1435	1500	220V AC(50/60Hz)	30W

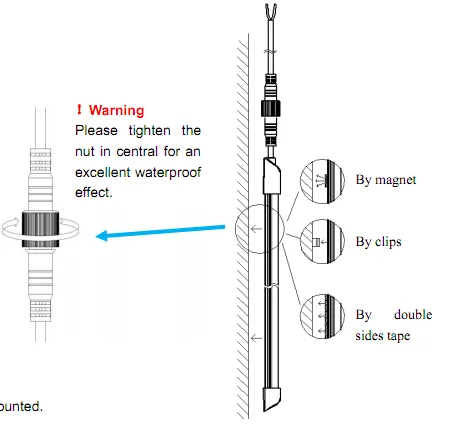

Installation	1. Metal clips(standard) 2. Double faced adhesive tape 3. By magnet
Size	W.14.5 x H.12mm	Cable	0.8M
Beam angle	Left 90°emitting Right 90° emitting Middle 120° emitting
Protection	IP65
efficiency	95-100Lm/W
CCT	6000-6500K
CRI:	>80Ra	PF	>0.9
Driver	Internal driver, Non-isolated
Lifetime	40,000H	Material	PC
Working temp.	-20~45℃	Working humidity	10~90%
