Home > Products > ONN-M4T Equipment Signal Lights / Tower Warning Lamp for CNC Machine

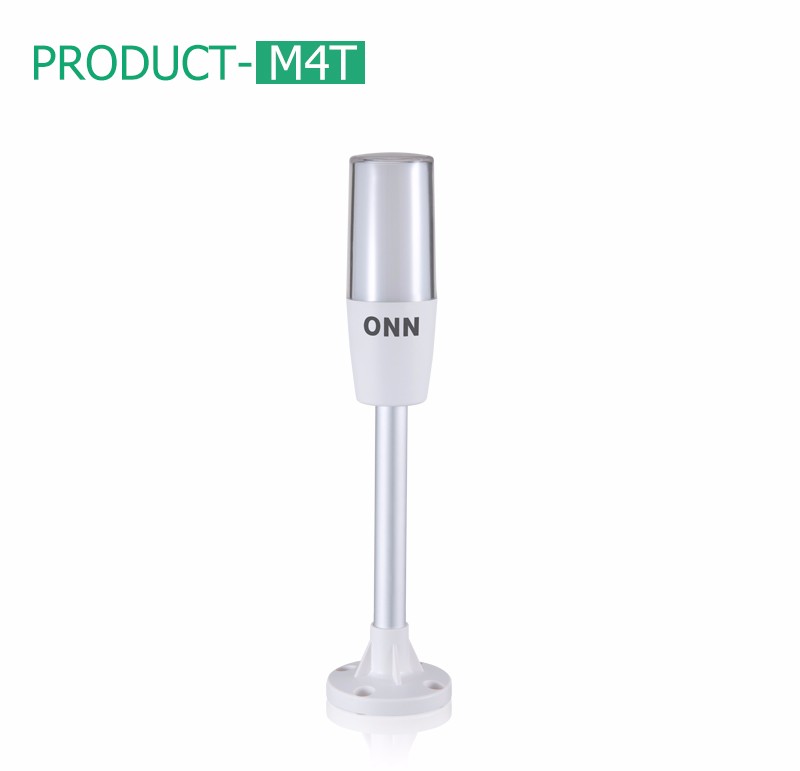

ONN-M4T Equipment Signal Lights / Tower Warning Lamp for CNC Machine
Click on the image to view the original image
Product： views：7ONN-M4T Equipment Signal Lights / Tower Warning Lamp for CNC Machine
Branch： ONN
Type： Equipment Indicator Lights
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:41
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
12/24/220
Lamp Power(W):
4
Lamp Luminous Flux(lm):
400
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra):
80
Color Temperature(CCT):
R Y G
Beam Angle(°):
360
IP Rating:
ip52
Certification:
CCC, CE, EMC, FCC, RoHS
Emitting Color:
Changeable
Lamp Body Material:
PC
Base Type:
2G11
Place of Origin:
Guangdong, China
Brand Name:
ONN
Item type:
Tower Warning Lamp for CNC Machine
Voltage:
12/24/220V
lifespan:
50000 Hours
luminous flux:
100Lm/W
Mounting:
Stem disc/Collapsible/L-plate fixed
View angle:
360 degree
Optional Specification:
Flash/Buzzer
Optional color:
R Y G B W in single layer / tri-color in one
Lampshade:
Double shade design with transparent and milk white
Structure design:
Adopting integrated SCM driver.
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Tower Warning Lamp for CNC Machine
Packaging & Delivery
Packaging Details
Equipment Signal Lights / Tower Warning Lamp for CNC Machine
1pcs/ inner box & PE bag ; 12pcs/ outer box
According to customr's requests
Port
Shenzhen, China
Lead Time:
Quantity(Pieces)1 - 2425 - 100101 - 500 >500
Est. Time(days)5710To be negotiated



ONN-M4T    Equipment Signal Lights / Tower Warning Lamp for CNC Machine   12v / 24v / 220v







 Application :





Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface.





Product Features :




1. Outstanding appearance temperament,surpass other similar kinds of  imported products,unique,initial creation around the world.


2.  Lamp beads using integrated mounting chassis,The frame mosaic transparent shade which makes the light more evenly and higher brightness .



3. Imported LED color light source,low current mult-light-source scheme,ensure the longevity of light source and best lighting effect(ONN trip-color with best lighting effect around the world,compare to EEMA and WEIMAA)



4.  Compared to the same product in the industry,our light is high brightness,long lifespan,low price and high quality. Cost performance of M4T at an absolute advantage !  (ONN trip-color with best lighting effect around the world,compare to EEMA and WEIMAA)


5. Modular design,convenient for producing,installing,purchasing,changing and maintaining.



6. Adopting integrated SCM driver,multi-module sharing,cost reduction,high stability.



7. Flash,buzzer and various specifications can be customized according to customer"s requirement .



8. Big allowance design,imported Rubycom capacitance,sharply increase the lifespan of driver ,modular design,easy to replace once the driver failed.


The Value-added services which ONN can supply to you :


1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers


Technical Parameters :





M4T  -   3 A  A B C-rygwb - 50

  1       2 3  4 5 6      7        8



1

Model No.: M4T

2

Layers: 1 layer

3

Installation:  A. Foldable type   C. Pole plate type    E. L shape mounting bracket

4

Voltage:  A. DC12V    B. DC24V    C. AC220V

5

Function:  B. Continous light    F. With buzzer no flash    S. Red flash no buzzer   C. Red flash with buzzer     D. All flash   E. All flash with buzzer

6

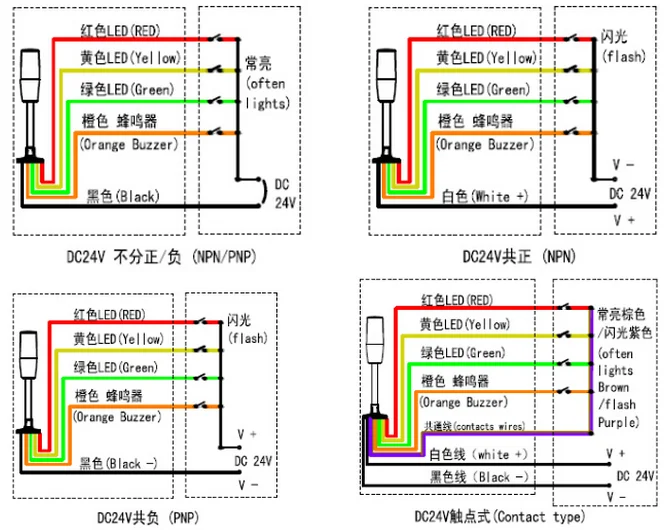

Wiring Mode : C. Contact Type      Z. Input Directly common line is positive ( NPN )        B. Input directly common line is negative ( PNP )

7

Optional Color :   R (red)   Y (yellow)   G (green)    W (white)    B (blue)

 8

 Diameter: 50mm

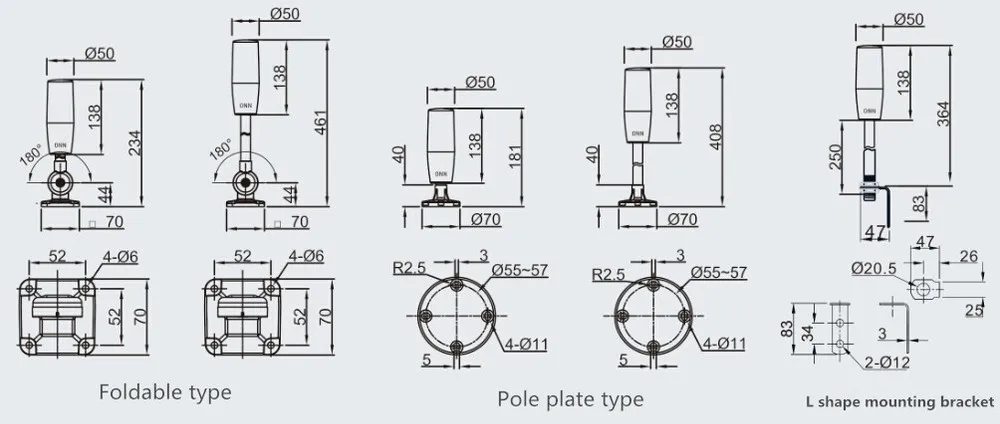

Product Size Drawing :











More Detail :







Similar Models Link for CNC Machine :








Company  Information :





 Brief Introduction :



Shenzhen ONN Semoconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We are now focused on led machine light, led warning light, led cleanroom light and led freezer light.



With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, Amercia, Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.



We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market









 ONN  Service :



Samples Policy:

Samples will be charged according to our quotation and delivered at our factory or warehouse.



Warranty Policy:

1. If the product have a failure occurs under normal usage within warranty period, we will provide free new products based on the proof-documents



2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid maintance within warranty period.





Certificates :







Contact Us :





Fiona . Liu



QQ : 2880560270

Skype : Fiona.Liufei

Tel : +86 755 36631967

Mob/WhatsApp : +86 18268698736

Web : www.onnled.net / www.onnled.en.alibaba.com
