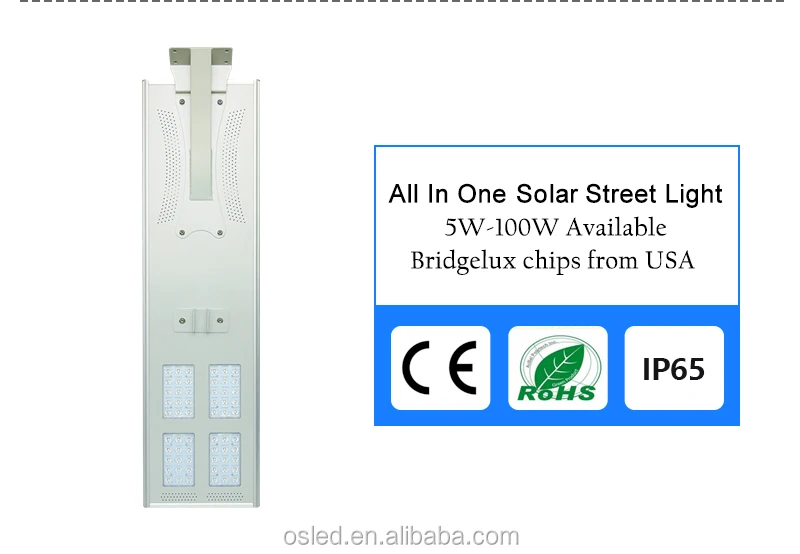

IP65 outdoor 15W solar LED street light

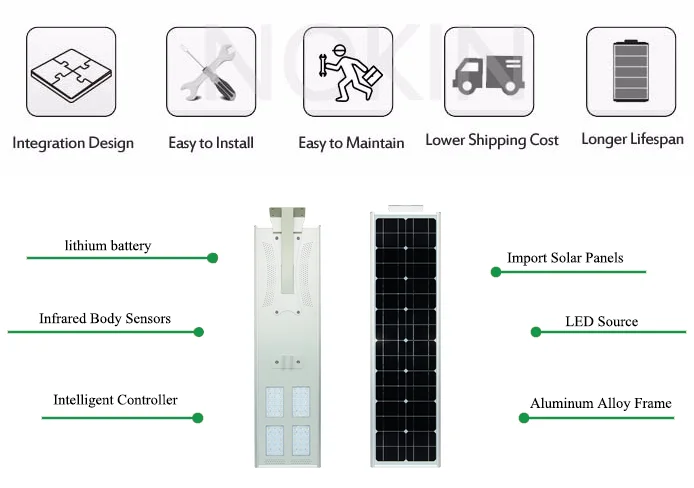

Integrated solar street light Technical Features:
1. All in one Solar garden&street lights, New invention patent products.
2. From 10W to 120W
3. Integration design, put solar panel, Led lamp, battery and cotroller all in a box, without any cable.
4. The lamp attomatically turn on after sunset ,and off when sunrise.
30W Integrated solar led street light specifications:
| Model: | OS-STL15 | W | >80Ra | |
| Solar panel Max power: |
40W (high efficiency Monocrystalline silicon ) |
Sensor distance | 10m | |
| Solar panel Life time: | 25 years | Lamps material of main: | aluminium alloy | |
| Battery Type: | Lithium battery 12.6v 14ah | Certificate: | ISO/CE / RoHS / IP65 | |
| LED Max power: | 12V 20W | Warranty period: | 3 years | |
| Led chip brand: | Customer choice | Mounting height(m): | 5-6m | |
| Lumen (LM): | 140lm/w-160lm/w | Space between light(m): | 15-18m | |
| LED Life time: | 50000hours | Inner box: | / | |
| Lighting Viewing Angle: | 140°(bat wing street light distribution ) | N.W | 6.8KG | |
| Charge time(by sun): | 6-7hours (with enough strong shine) | Unit size | 768*355*45mm | |
| Working TEMP( ℃ ) | -25~+75℃ | Carton size | 800*350*210mm | |
| Charge / Storage | 0 - 45℃ | Q'ty/ctn: | 1set/ctn | |
| CCT (k): | 2700-6500k | GW.for carton: | 8.0G | |
| 20GP container: | 476pcs | 40GP container: | 1250pcs | |

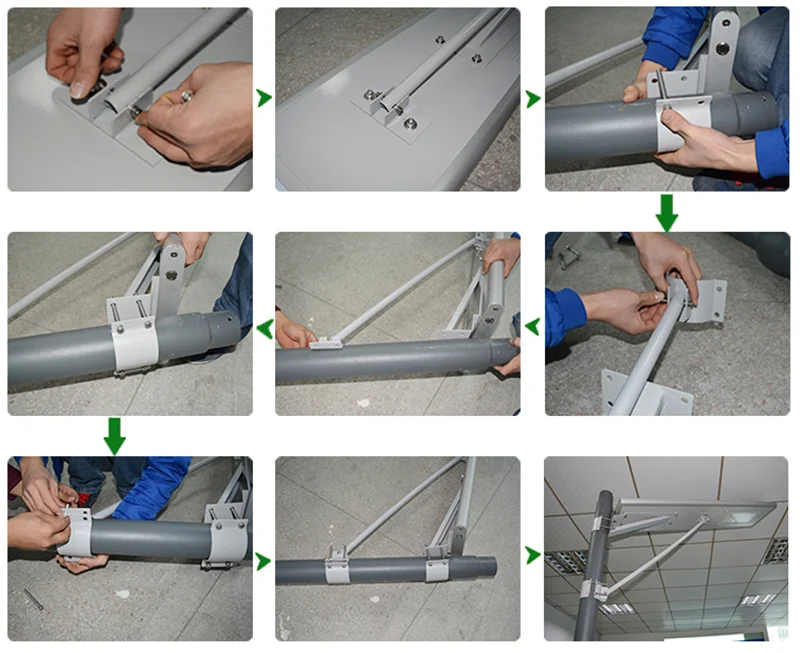

Integrated solar led street light installation
Packaging & Shipping
Contact Information
