About OYATE
OYATE Lighting Electrical Co,Ltd founded in 2008, Over 10 years of experience in heat lamp,It is a professional factory who provides customized solution for industry heating and drying process with varouis infrared heating elements, including shortware, medium ware and carbon infrared lamp.
Our customers includes some companies of World Fortune 500, such as China Hua Wei, China Dong Fend Motor, Canada ONEX, USA II-VI Group.
We believes that the quality control of the material, the product traceablity and deep knowledge of production processes are essential to continue to operate with satisfaction on the market. Our production and packing are sudjected to strict controls, and is able to meet every need, studying solutions for the more specific and complex applications.

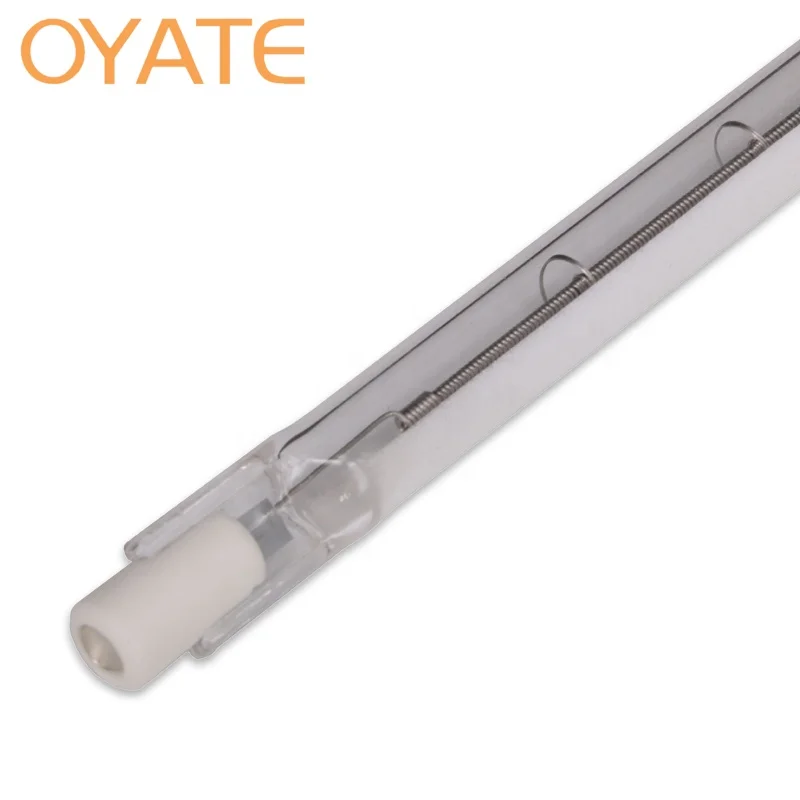

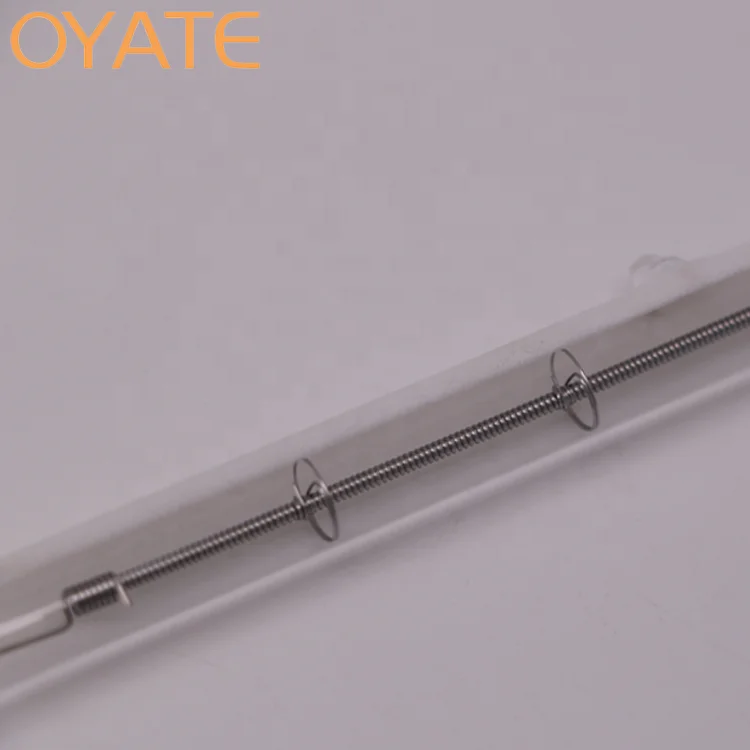

Clear Halogen Infrared Heat Lamp (Short-Middle Wave)
| Filament | Tungstan |
| Tube Color | Clear |
| Wavelength | 1.6μm |
| Voltage | 12V-450V |
| Power | 50-4000W |
| Color Temp | 1800K |
| Common Diameter | 10mm |
| Life Time | 5000Hours |
The Advantages Of OYATE Heat Lamp
Carbon fiber heat lamp (Middle wave infrared heat lamp)
*High-priced imported carbon fiber filament.
*The finished filament is smooth and does not fluff.
*Advanced carbon fiber weaving process, smooth surface.
*The optimum power and maximum longevity.
Quartz glass tube (Single tube and twin tube)
*High quality high-temperature quartz glass.
*Is totally transparent at IR radiation.
*If you need more heat under the same conditions, it is your best choice(twin tube).
Reflector heat lamp
*To transmit and focus heat more efficiently on the material.
*A special reflector is directly applied on the quartz tube.
*According to the specific application and customers’ needs.
*We usually applies gold, white and ruby reflectors on heat lamp.
Ruby heat lamp & all gold heat lamp
*Reduce the brightness of visible light.
*Reduce wavelength, increase heat.
White heat lamp
*Imported ceramic white plating material.
*The white reflector coating is stable, not easy to fall off.
Gold heat lamp
*Imported gold plated material,gold water plated.
*Reflect heat use,Stronger reflection efficiency.
*Reflection effect is better than white plated.
| Life Test Standard |
| Rated voltage 1.3 times times power 72 hours (Ambient temperature 400 degrees) |
| Withstand voltage test |
| ≥1870VAC/3s/5mA (Actually through3000VAC/3s/5mA) |
| Insulation Resistance test |
| Cold resistance ≥200MΩ(500VDC) |
| Leakage Current Test |
| <0.3mA(Test results <0.05mA) |
| Wire tensile test |
| >60N |
OEM Service
Thanks to its long track record and wide set of products always in stock, We can advise the customer choosing the right heat lamp for the specific application. Furthermore, the Technical Department can design the right lamp based on the customer’s specific technical instructions.
We can product many sizes and types heat lamp according to customers requirement, and so on.If have drawing is beat, then we can do samples for you.
Packaging & Shipping
| MOQ | 1Piece |
| Certification | CE ,ROHS,ISO9001 |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal |
| Packaging Details | White box single packing,5Pieces/ rolls,Custom color box |
| Port | Shanghai ,Qingdao ,Lianyungang |
| Delivery Time |
3-8 Days(For Samples) 13-20 Days(For Mass Production) |
