PBOX solar street light is more than just lighting up the place people live, it is about lighting up the future for our Children.
Our Mission:
Provide reliable solar lighting solutions
Vision:
PBOX street lights in every corner

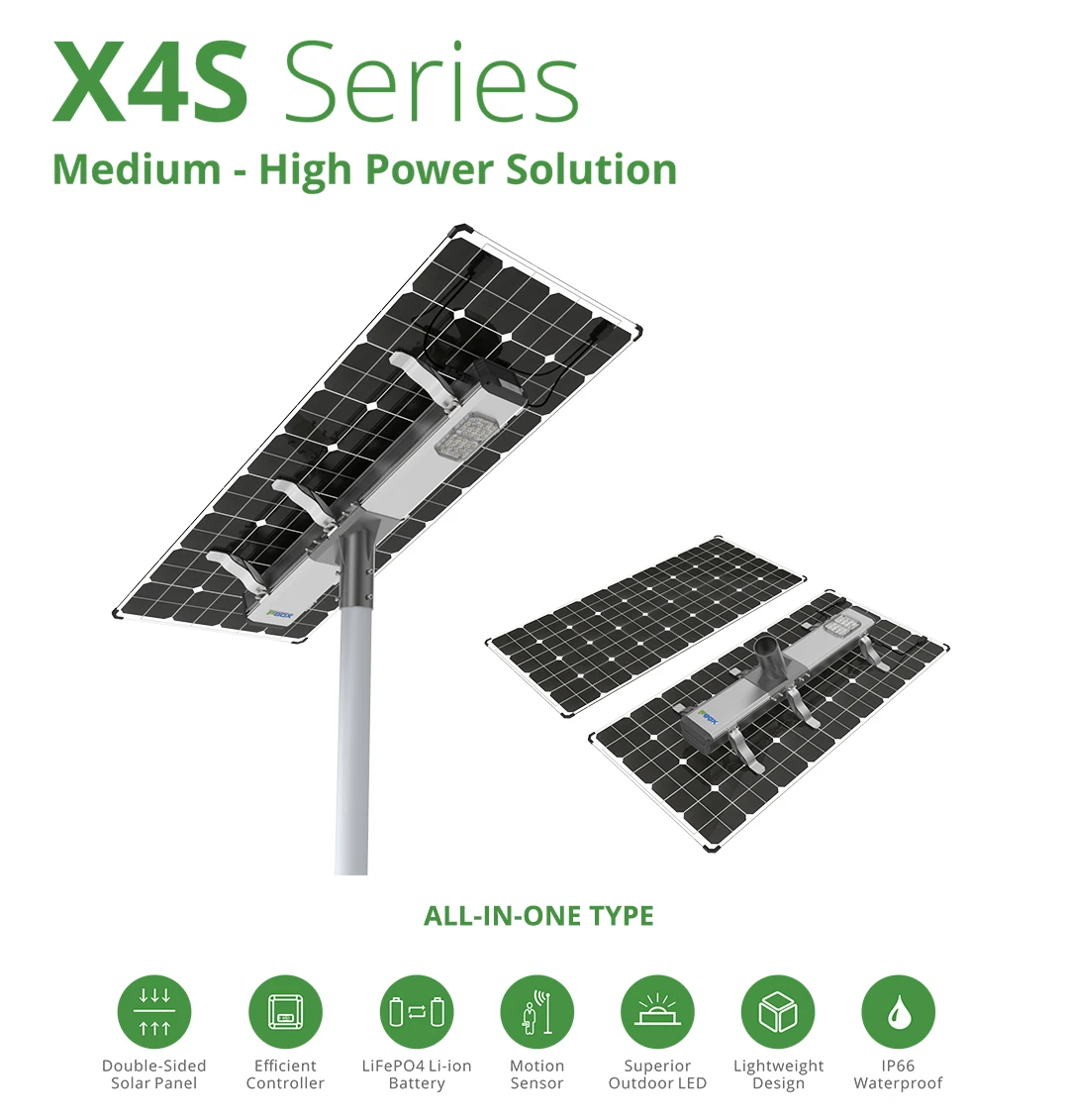

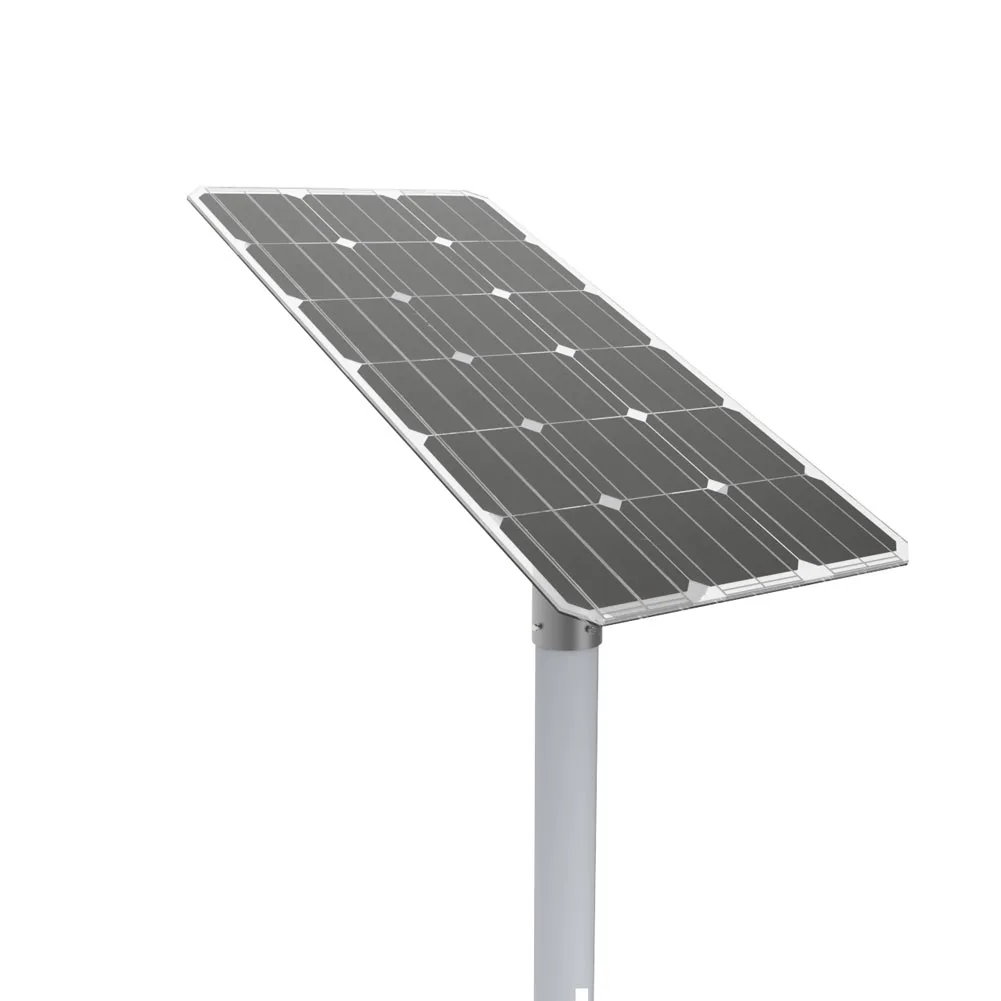

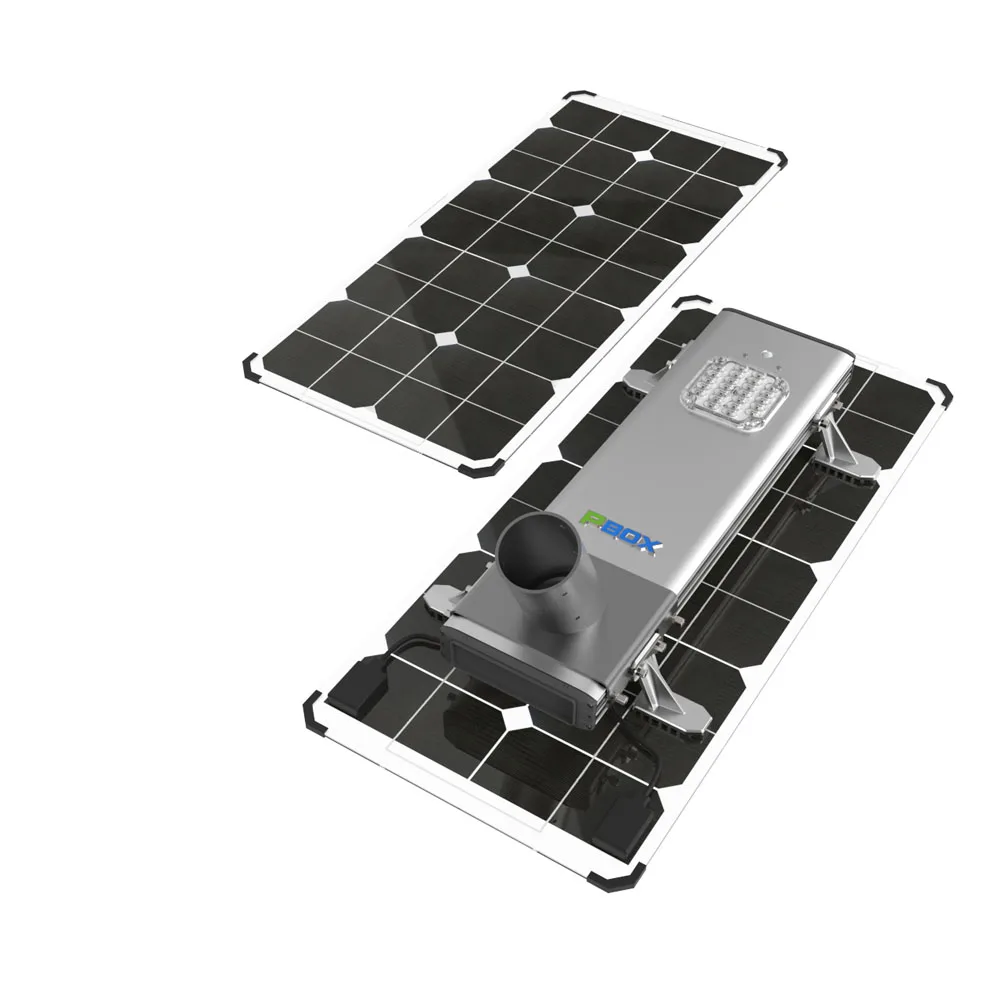

PBOX Energy Saving Ip65 Outdoor Motion Controller 40 60 80 W Integrated All In One Led Solar Streetlight Price List

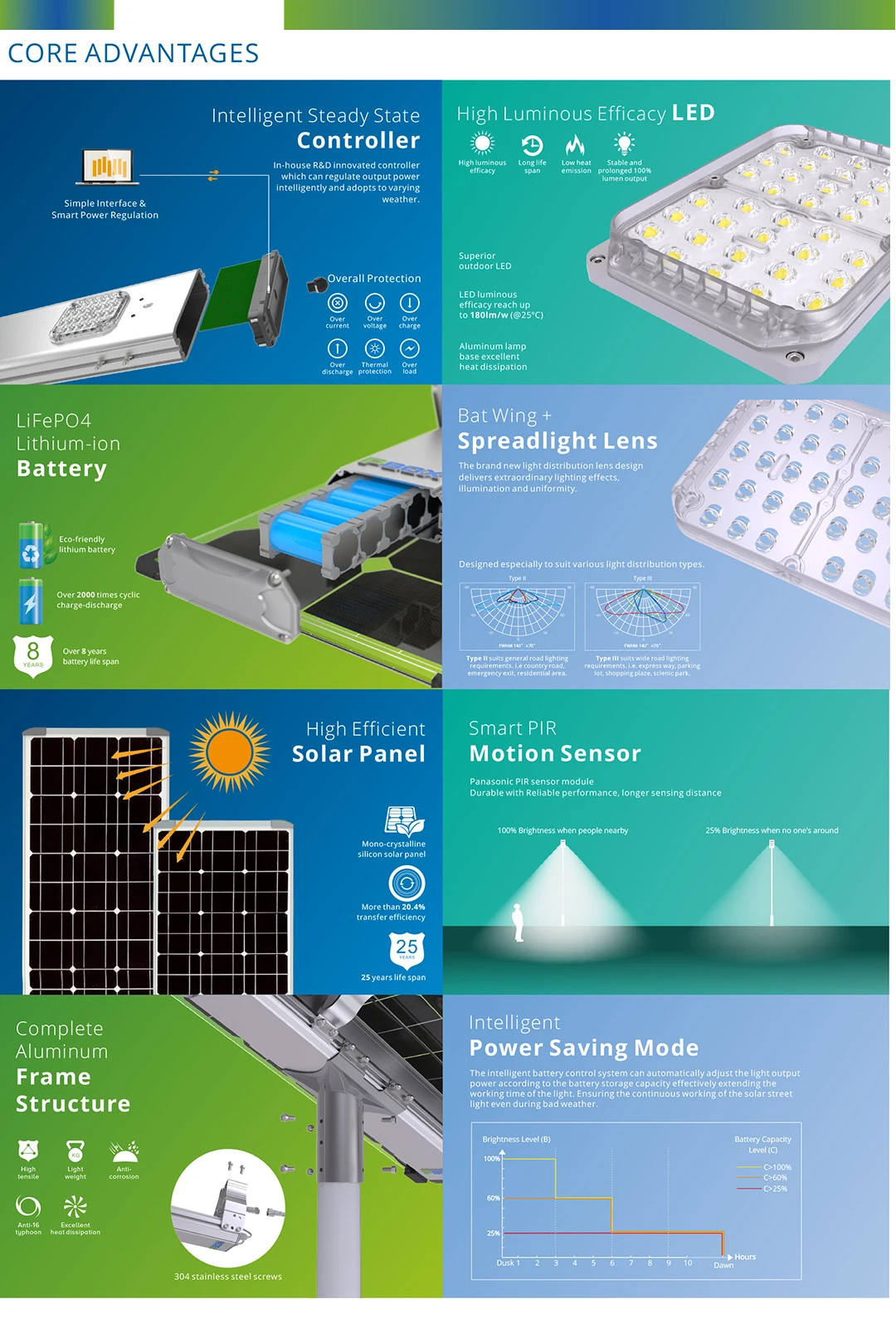

FEATURES:
● Frameless Solar Panel Design - Minimal dirt build up

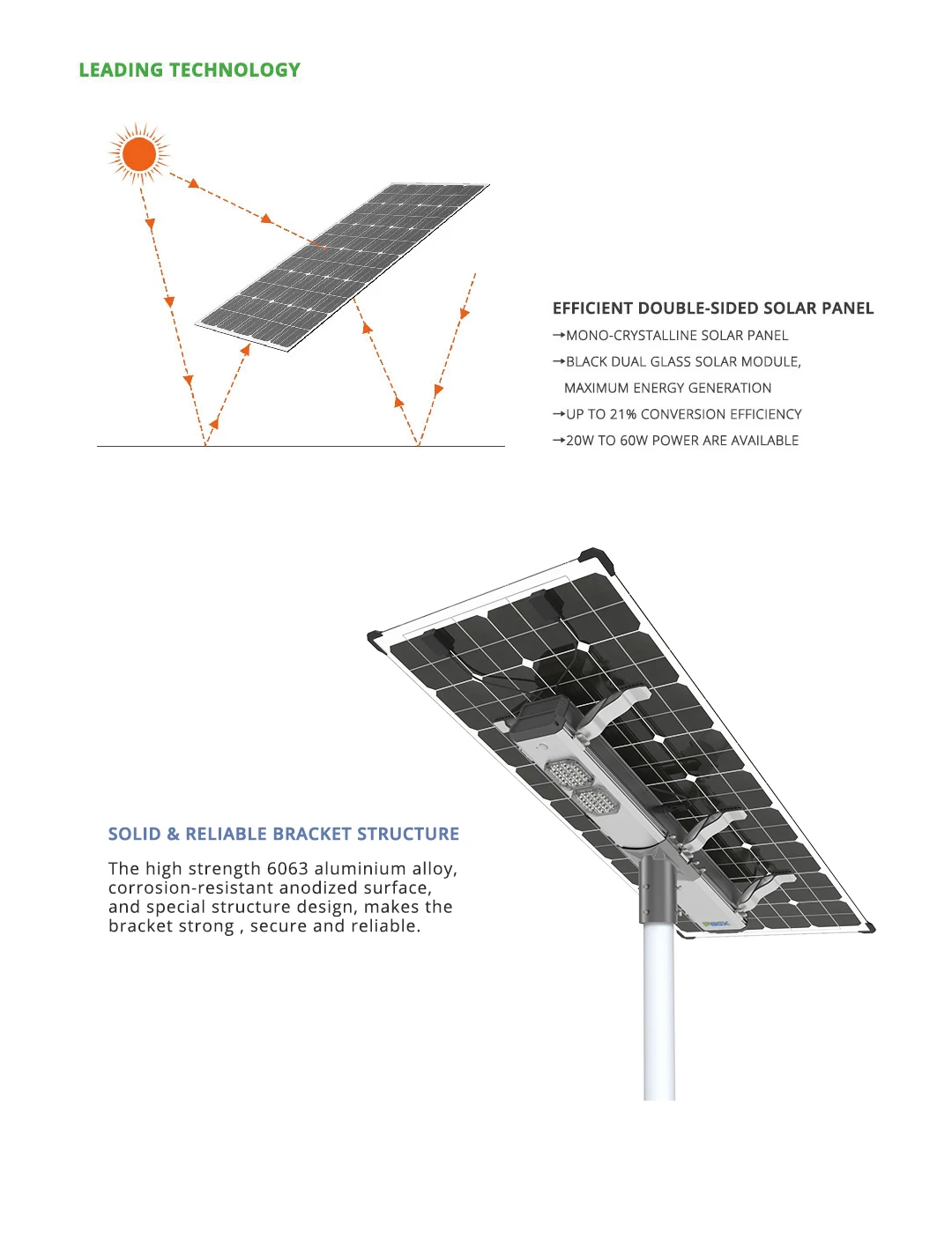

● Double Side Solar Panel - Up to 21% conversion effciency
● High Effciency LED - Luminous effciency is up to 180lm/W
● High Efficiency Controller - Self-developed controller with overall protection
● LiFePO4 Li-ion Battery - Over 2000 cycles with dual battery management system for 8 years life expectancy
● Self-design Bat wind Lens - Customized lighting effect types
Product Description

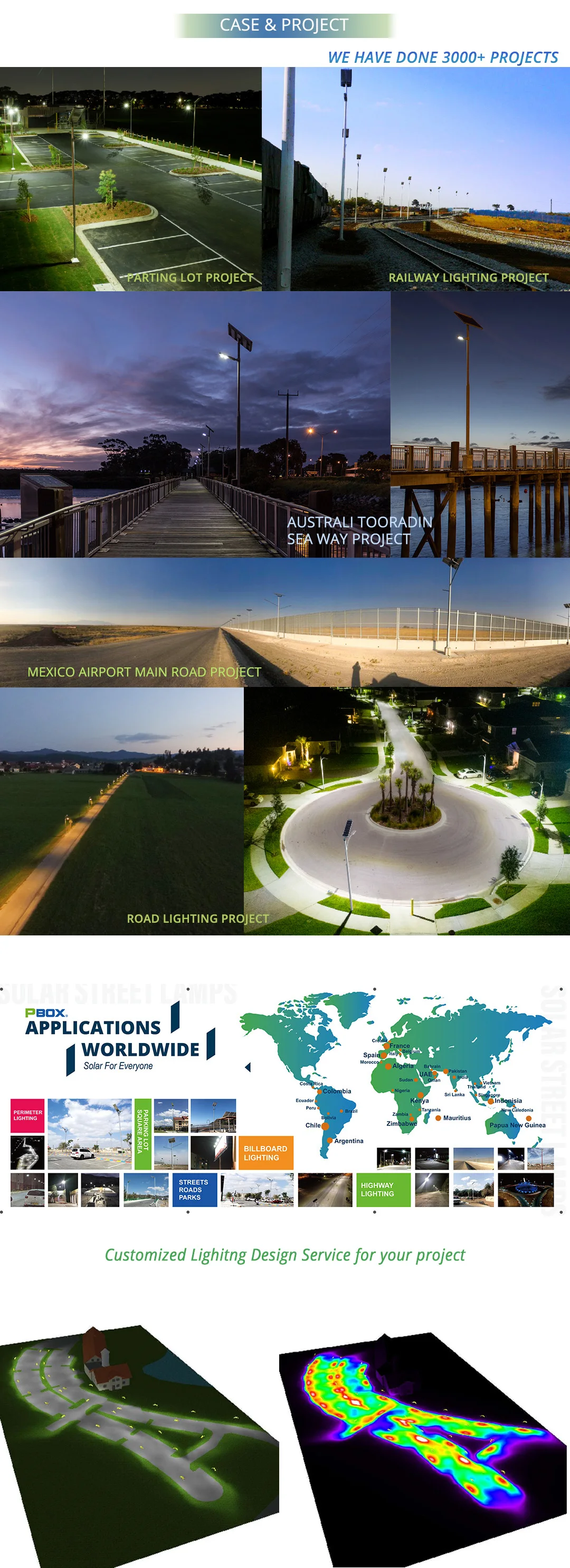

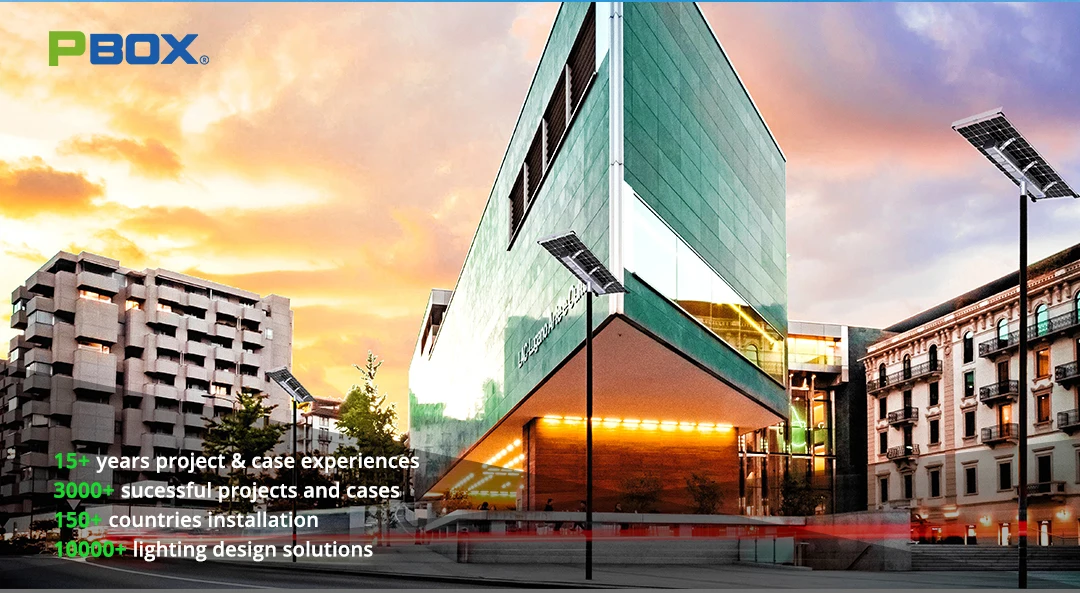

Projects & Cases
Product Paramenters
X4S Series Solar Street Light Technical Data | ||||||||||||||
Model No. | X4S90N20 | X4S90P30 | X4S130P40 | X4S130R50 | X4S180S60 | X4S180U80 | ||||||||
Technical Parameters | ||||||||||||||
Light Output (w) | 20 | 30 | 40 | 50 | 60 | 80 | ||||||||
Qty. of LED Chips | 16 | 36 | 36 | 36 | 2*36 | 2*36 | ||||||||
Optional Light Distribution | T2/T3 | T2/T3 | T2/T3 | T2/T3 | T2/T3 | T2/T3 | ||||||||
Color Temperature (K) | 4000/5000 | 4000/5000 | 4000/5000 | 4000/5000 | 4000/5000 | 4000/5000 | ||||||||
Typical Luminous Flux (lm) | 3400 | 5100 | 6800 | 8500 | 10200 | 13600 | ||||||||
Power of PV Module (W) | 90 | 90 | 130 | 130 | 180 | 180 | ||||||||
Liuthium Battery Capacity (WH) | 308 | 460 | 460 | 615 | 768 | 922 | ||||||||
PIR Sensor | ● | ● | ● | ● | ● | ● | ||||||||
Working Mode | 100% brightness for 30s when motion detected, 25% brightness when no one around | |||||||||||||
Min. Working Time (Hours) | Bright Mode | 13 | 13 | 10 | 10 | 11 | 10 | |||||||
DIM Mode (25%) | 52 | 52 | 39 | 42 | 44 | 39 | ||||||||
Light Photosensitivity (lx) | 30 | 30 | 30 | 30 | 30 | 30 | ||||||||
Net Weight of Product (Kg) | 19 | 20 | 27 | 29 | 33 | 34 | ||||||||
Dimensions of Product (mm) | 1028*524*322 | 1207*683*322 | 1495*683*322 | |||||||||||
Environment Requirement | ||||||||||||||
Wind Load Rate (mph) | 130 | 130 | 130 | 130 | 130 | 130 | ||||||||
EPA(effective projected area) (ft2) | 3~5 | 4~6 | 5~8 | 8~10 | 8~10 | 8~12 | ||||||||
Exhibition
Company Introduction
Our Advantages
WHY US:
(1) 3000+ Projects around the world
(2) Strong R&D developing team, Product design, controller development, lighting effect.
(3) 15+ years specialized in solar lighting manufacturing
(2) Well-trained and highly experienced sales team provide you good pre-sales &after-sales service
(3) Warranty: 3 years to ensure high brightness and lifespan.
(4) Your inquiry will be replied within 24 hours.
(5) High efficiency of Production and Transportation.
Welcome to contact us at anytime!
FAQ
Q1: is this company based of?
* POWERBAND Green Energy Ltd. (PBOX) is an innovative solar lighting enterprise with experts to seek inspirational new ways to light our world. The headquarters of PBOX is located in Zhuhai, China.
Q2: What’s the warranty for the products?
* At least 3 Years Product warranty for all the products
Q3: What would be the average price of the product?
* It depends on the customized product specification and the project situation. PBOX solar panel, led light, battery and other functions can be customized by the client, with different specification of the accessory, the price is unstable.
Q4: What kind of battery we use? Does the battery withstand harsh hot weather?
* The battery we use is LiFePO4 lithium ion battery, with a higher security, longer lifespan, larger battery capacity, light
weight, eco-friendly and high temperature performance of the lithium battery, it is much more superior than any other batteries and it can withstand any harsh weather temperature range from -40℃ to 60℃.
Q5: How can we wash the solar panels if there is any dust?
* To wash the solar panel of the solar street light, the only way is manual cleaning. You can use the elevator to reach the solar panel and clean by man.Our new model X4 series is anti dust design.
Q6: Do you also manufacture the solar panels for your street lights?
* Powerband also manufactures the solar panel for the solar street light. The company has the workshop to makesmono-crystalline and Poly-crystalline solar panel, it also make the panel for the street light.
Q7: Does it have protection from Lightning?
* So long as the light pole installation follows the requirements, the product can withstand lightning as our product design
meets safety testing standard.
Q8: How many days it takes to ship the products from China to my place?
* For the lead time: samples: within 1-2 weeks; Orders: within 4 weeks. The time products ship to the destination depends on the distance of the place.
Q9: Is there any MOQ?
* We don't have any MOQ for now.
Q10: What are the payment terms?
* T/T, L/C, Pay Pal, Western Union.
Q11: Do you have all the certifications as per the European standards?
* For the European certification, PBOX has the CE EMC and LVD
Q12: How many days the light can work without sunlight?
* The solar street light working time depends on the working mode which is customized by the customer. Generally, the battery we standard equipped to the customer can let the light work for 2-3 nights without sunlight.
