Guangzhou Benjie Stage Equipment Co., Ltd.

Stage board using architectural plywood,18 mm thick,Double layer film,Surface waterproof.The border frame of the stage material is international iron pipe,Stage column is dedicated international standard Q235 pipe for scaffolding,Diameter 42.7mm, 0.8m tube 2.4mm-2.5mm thick, 0.6m tube 2.1mm, 2.2mm thick(Within the trajectory error),Galvanized surface.The diagonal support is a 1.5mm hot galvanized tube,Panel frame is 25x40x1.3mm galvanized steel,Durable, stable and safe.The stage is an assembled stage,Fast installation and removal,transport Convenience,The conventional height of the stage is 0.41 meters and 0.61 meters.

2、Stage bracket:
Countertop frame made of 40x40x5mm angle steel, structurally stable;
All metal frames are rust proofed, then sprayed, and then electrostatically sprayed for durability.

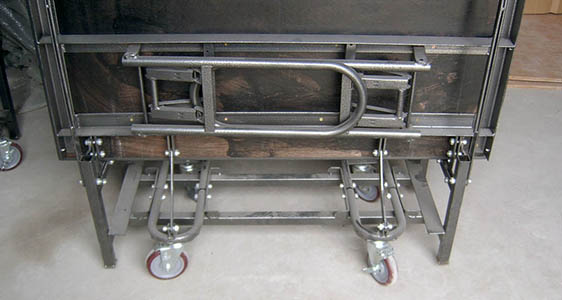

The main bracket adopts 30*30*1.5 square steel, and the bench has accessories to lock the gantry for user's change.
5mm flat steel for movable connection.

3.Surface treatment：
Degreasing;
Steel Phosphating deal with;
Surface spray, baked at high temperature.

Stage specifications:1.22m*2.44m, 1.83m*2.44m

Adjustable height: 0.41m-0.61m, 0.61m-0.81m

Stage load-bearing capacity of 2.5T/tablet (tabletop), its load-bearing mainly depends on the iron frame support at the bottom of the stage (every 30cm has a tube on the bottom support) is fully able to withstand more people jumping on the stage and frequent jumping .

The small stage weighs about 120 kg / piece, and the big stage weighs about 160 kg / piece.

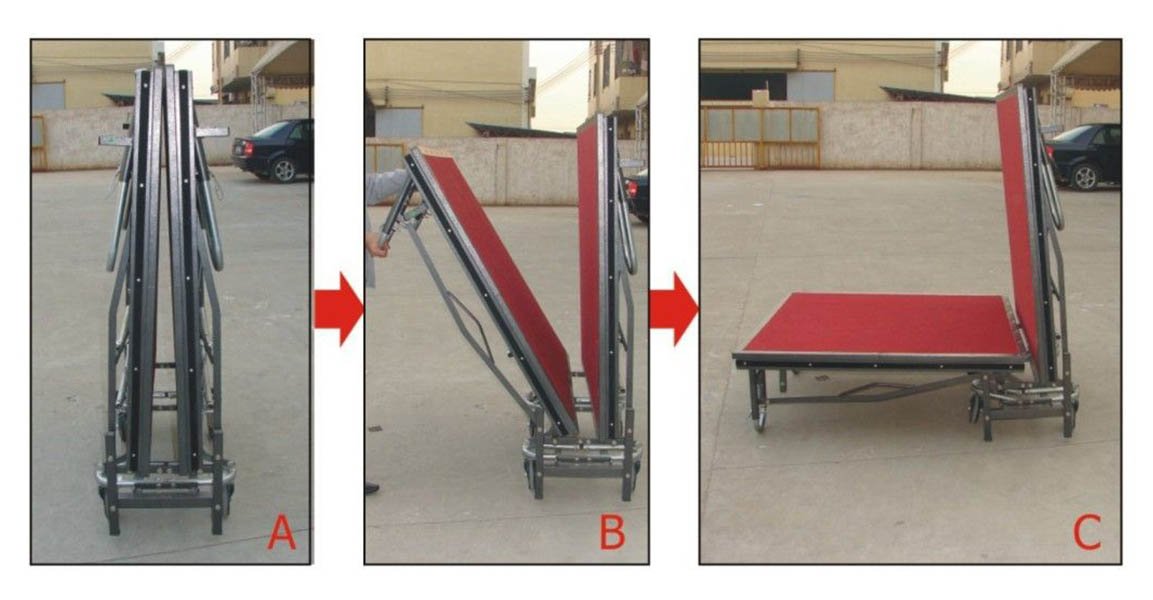

Uses: Suitable for hotels, trade fairs, fashion shows, church schools, weddings, conference venues and other indoor places, easy to install, easy to store, folded after the wheel to facilitate labor-saving.
