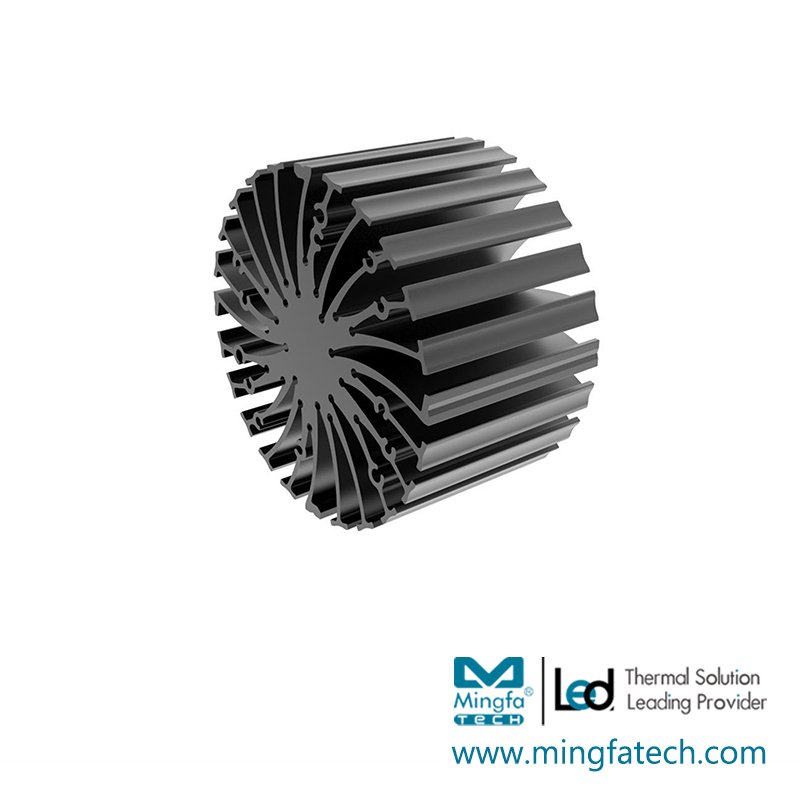

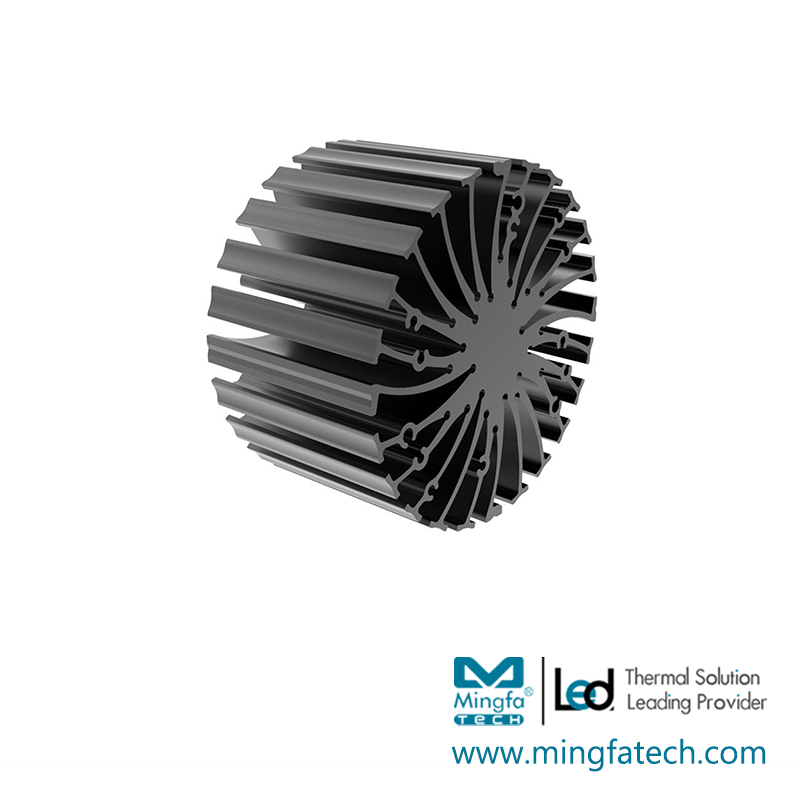

EtraLED-8520/8550/8580 star led heatsink aluminum led cooler
Click on the image to view the original image
Product： views：24EtraLED-8520/8550/8580 star led heatsink aluminum led cooler
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-09-03 08:45
  Negotiated
Product Details

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS


PRODUCT VIDEO



SPECIFICATIONS

BrandMingfa Tech
Series NameEtraLED passive heat sinks
Seriest NumberEtraLED-85
Manufacturing TechnologyAluminum extrusion
MaterialAL6063-T5
Color & FinishingBlack Anodized & Clear Anodized
CertificationCE, ROHS, WEEE
Diameter(mm)Φ85
Height(mm)20.0 50.0 80.0
Item NumberEtraLED-8520EtraLED-8550EtraLED-8580
Max. Lumen3500 lm4700 lm5300 lm
Dissipated Power  (Ths-amb,50°C)25.0 W34.0 W38.0 W
Thermal Resistance Rth（°C/W)3.5°C/W2.2°C/W1.8°C/W
Cooling Surface Area (mm²)40076 mm²36868 mm²58826 mm²
Net Weight (g)115.0 g286.0 g458.0 g
Quantity(pcs/CTN)72 pcs36 pcs27 pcs
Modular TypesCOBCOBCOB
For EnvironmentsIndoor area
For LightingsSpot lights, Down lights, Track lights,Architectural lights
For ApplicationRetail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brandsAdura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS

PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminous surface of 9.0-23.0mm.
  • 03

    Hole location suitable for Xicato XTM and Philips SLM modules.
Mingfa Tech-Cob Led Light | Etraled-852085508580 Star Led Heatsink-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05

    Suitable for SUNON Maglev round fan.
  • 06

    Compatible with more than 20 COB brands . Covering 85%-95% of modules.
