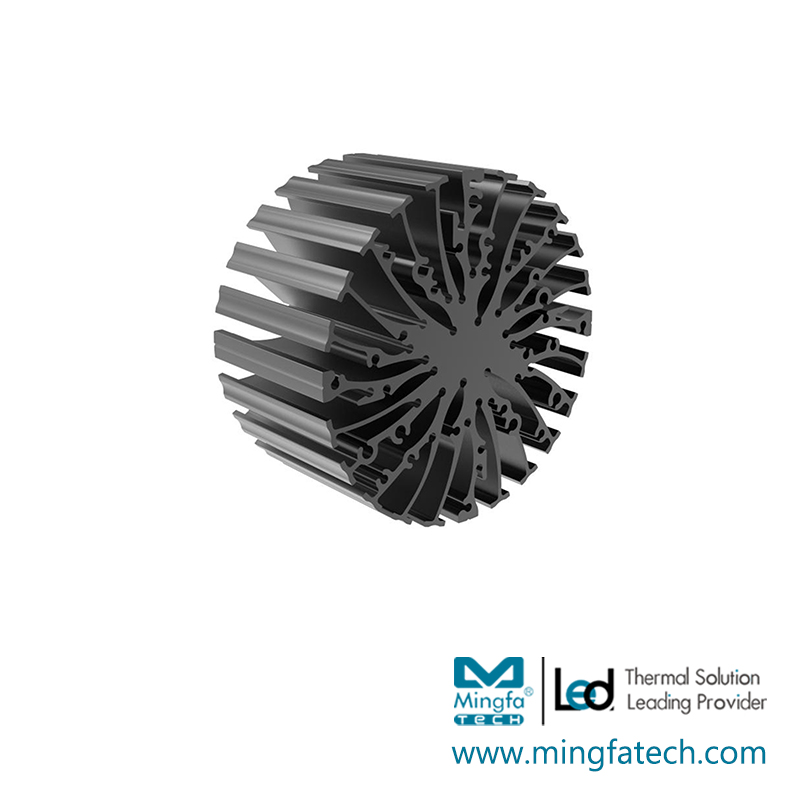

EtraLED-9620/9650/9680 round led heat sink cob led cooling
Click on the image to view the original image
Product： views：24EtraLED-9620/9650/9680 round led heat sink cob led cooling
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-09-03 08:45
  Negotiated
Product Details

PRODUCT VIDEO

SPECIFICATIONS

DATASHEETS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

RELATED PRODUCTS

PRODUCT VIDEO


SPECIFICATIONS

BrandMingfa Tech
Series NameEtraLED passive heat sinks
Seriest NumberEtraLED-96
Manufacturing TechnologyAluminum extrusion
MaterialAL6063-T5
Color & FinishingBlack Anodized & Clear Anodized
CertificationCE, ROHS, WEEE
Diameter(mm)Φ96
Height(mm)20.0 50.0 80.0
Item NumberEtraLED-9620EtraLED-9650EtraLED-9680
Max. Lumen3900 lm5200 lm6800 lm
Dissipated Power  (Ths-amb,50°C)28.0 W37.5 W49.2 W
Thermal Resistance Rth（°C/W)1.8°C/W1.2°C/W0.9°C/W
Cooling Surface Area (mm²)50467 mm²114836 mm²180427 mm²
Net Weight (g)144.0 g360.0 g575.0 g
Quantity(pcs/CTN)76 pcs32 pcs24 pcs
Modular TypesCOBCOBCOB
For EnvironmentsIndoor area
For LightingsSpot lights, Down lights, Track lights,Horticulture lights,Architectural lights
For ApplicationRetail & Hospitality,Mall & Food,Architectural & Museums,Office & Education,Station & Airport,Healthcare
For LED brandsAdura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia,
Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

DATASHEETS

PRODUCT ADVANTAGE

  • 01

    The product is suitable for Zhaga book 3 and Zhaga book 11 holes.
  • 02

    Suitable for COB modules with luminous surface of 9.0-40.0mm.
  • 03

    Suitable for hole positions of Xicato XTM, Philips SLM and DLM modules.
Mingfa Tech-Etraled-962096509680 Round Led Heat Sink Cob Led cooling-3
  • 04

    The customer can use self-tapping screws to install without tapping.
  • 05

    It is suitable to increase the market circular fan with an outer diameter of 95mm.
  • 06

    Compatible with more than 20 COB brands . Covering 85%-95% of modules.


PRODUCT COMPARISON

Mingfa Tech-Etraled-962096509680 Round Led Heat Sink Cob Led cooling-4
Mingfa Tech-Etraled-962096509680 Round Led Heat Sink Cob Led cooling-5

CERTIFICATE

Mingfa Tech-Etraled-962096509680 Round Led Heat Sink Cob Led cooling-6
