SPECIFICATIONS
| Brand | Mingfa Tech | ||

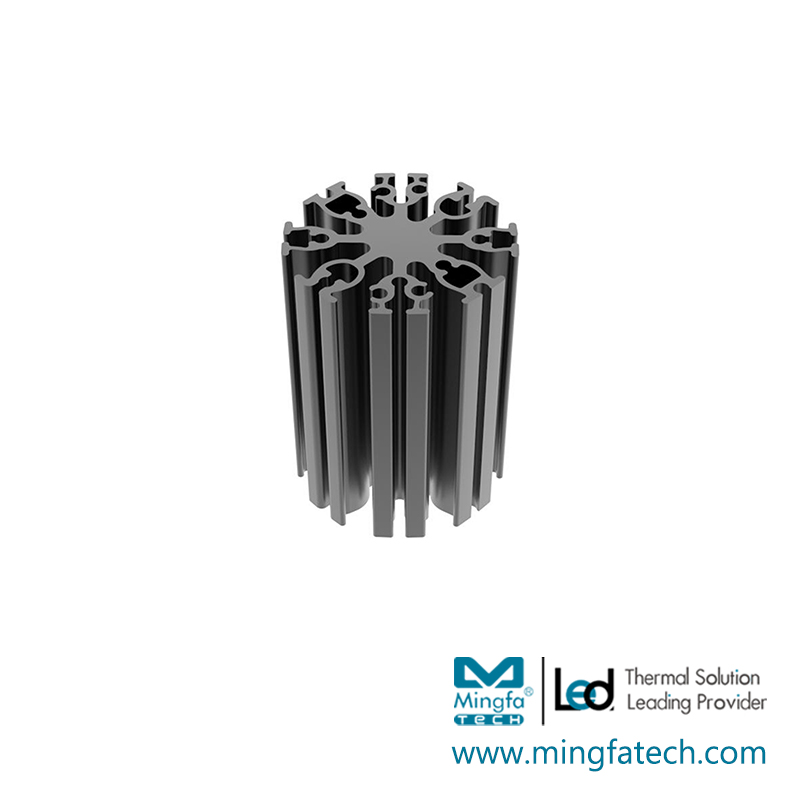

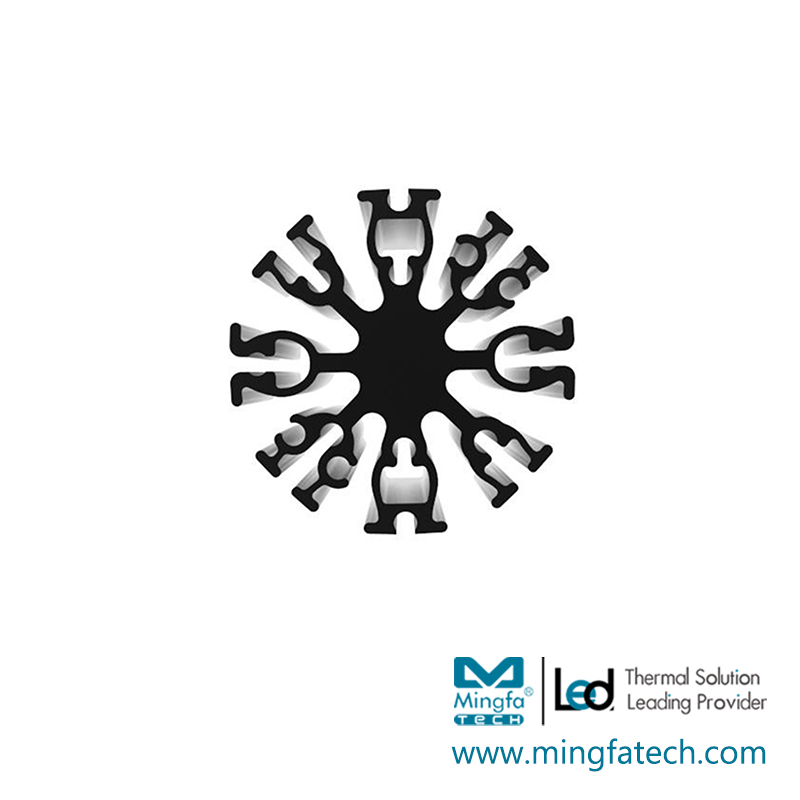

| Series Name | FanLED passive heat sinks | ||
| Seriest Number | FanLED-38 | ||
| Manufacturing Technology | Aluminum extrusion | ||
| Material | AL6063-T5 | ||
| Color & Finishing | Black Anodized or Clear Anodized | ||
| Certification | CE, ROHS, WEEE | ||
| Diameter(mm) | Φ38 | ||
| Height(mm) | 20.0 | 50.0 | 80.0 |
| Item Number | FanLED-3820 | FanLED-3850 | FanLED-3880 |
| Max. Lumen | 630 lm | 980 lm | 1200 lm |
| Dissipated Power (Ths-amb,50°C) | 4.5 W | 7.0 W | 9.0 W |
| Thermal Resistance Rth（°C/W) | 11.4°C/W | 7.0°C/W | 5.4°C/W |
| Cooling Surface Area (mm²) | 11379 mm² | 28449 mm² | 45518 mm² |
| Net Weight (g) | 24.0 g | 60.9 g | 97.4 g |
| Quantity(pcs/CTN) | 288 pcs | 144 pcs | 108 pcs |
| Modular Types | COB | COB | COB |
| For Environments | Indoor area | ||
| For Lightings | Down lights,Architectural lights | ||
| For Application | Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare | ||
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | ||
DATASHEETS
FanLED-38 Series Star Heat Sinks Φ38mm for COB Modular Product Brief.pdf - FanLED-38 Series Φ38mm Material AL6063-T5 COB Star Heat Sinks Thermal Data.pdf
