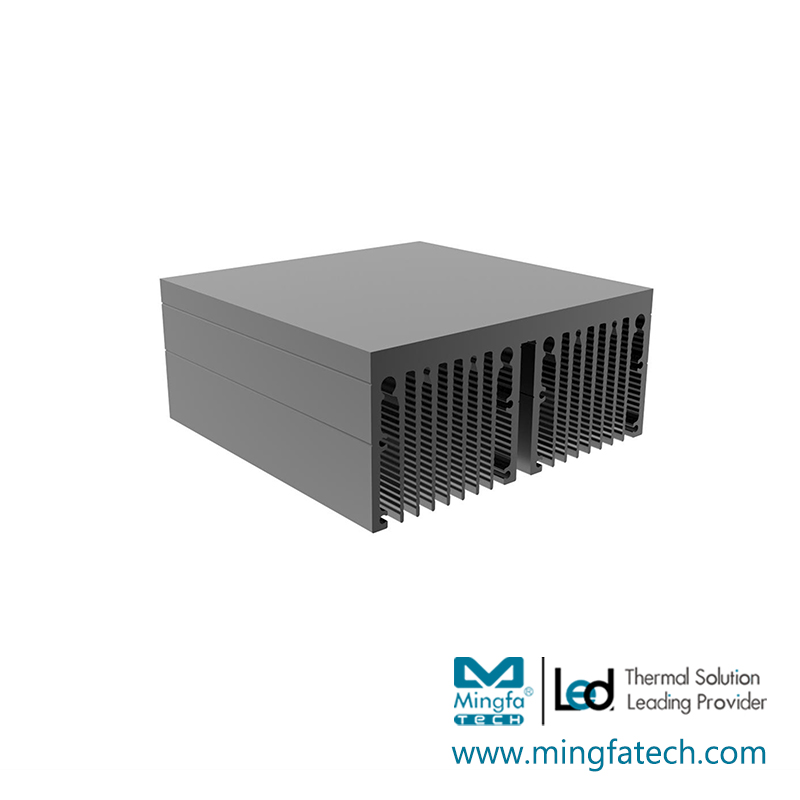

tLED-115×50×115 Led lamp heat sink with aluminum extrusion

Click on the image to view the original image

Product：	views：38tLED-115×50×115 Led lamp heat sink with aluminum extrusion
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-09-03 08:45

Product Details

PRODUCT VIDEO

SPECIFICATIONS

PRODUCT ADVANTAGE

PRODUCT COMPARISON

CERTIFICATE

PRODUCT VIDEO

Brand	Mingfa Tech
Series Name	tLED passive heat sinks
Seriest Number	tLED-115
Manufacturing Technology	Aluminum extrusion
Material	AL6063-T5
Color & Finishing	Black Anodized & Clear Anodized
Certification	CE, ROHS, WEEE
Length*Width(mm)	L115xW50
Height(mm)	115.0
Item Number	tLED-115×50×115
Max. Lumen	7000 Im
Dissipated Power (Ths-amb,50°C)	50.0 W
Thermal Resistance Rth（°C/W)	1.0°C/W
Cooling Surface Area (mm²)	145374 mm²
Net Weight (g)	660.0 g
Quantity(pcs/CTN)	18 pcs
Modular Types	SMD
For Environments	Indoor area，Outdoor area
For Lightings	Flood lights,Street lights,Horticultures,Architectural lights,Area Lights
For Application	Industrial & Warehouse,Station & Airport,Horticulture,Outdoor
For LED brands	Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga

01

The product is suitable for indoor and outdoor lighting design.
02

Compatible with more than 20 SMD & COB brands.
03

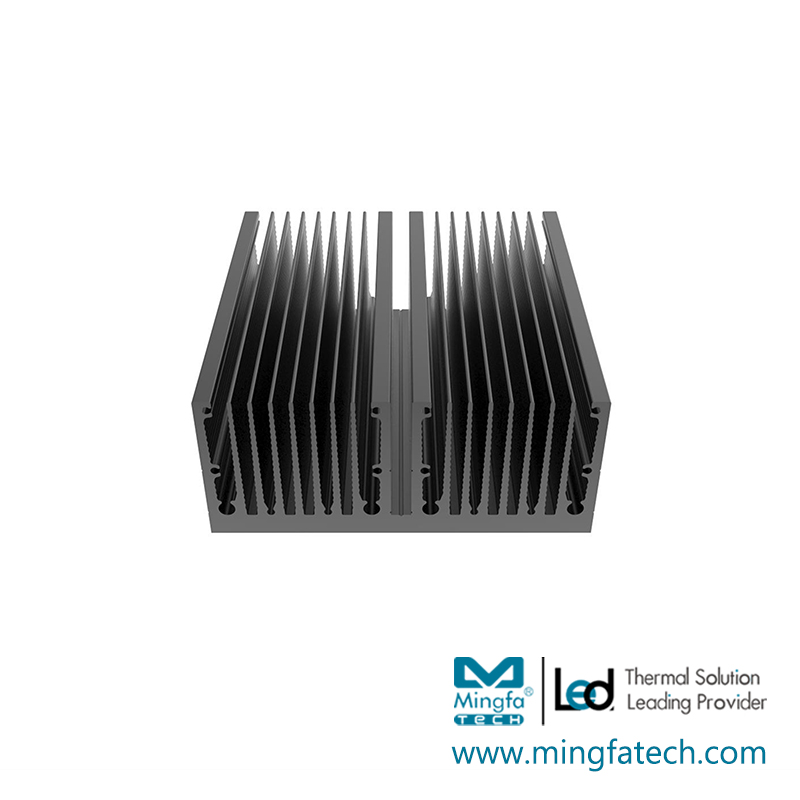

The fins are designed with wavy lines, which are suitable for flood light, street light and so on.

04

There is a flat fin on both sides of the product side to increase the mounting bracket at the hole position.
05

AL6063-T5 thermal conductivity is 1.5 times higher than ADC12.
06

Solid plate design to meet the IP65-IP67.

Mingfa Tech-Tled-115×50×115 Led Lamp Heat Sink With aluminum extrusion-3
