SPECIFICATIONS
| Brand | Mingfa Tech | ||

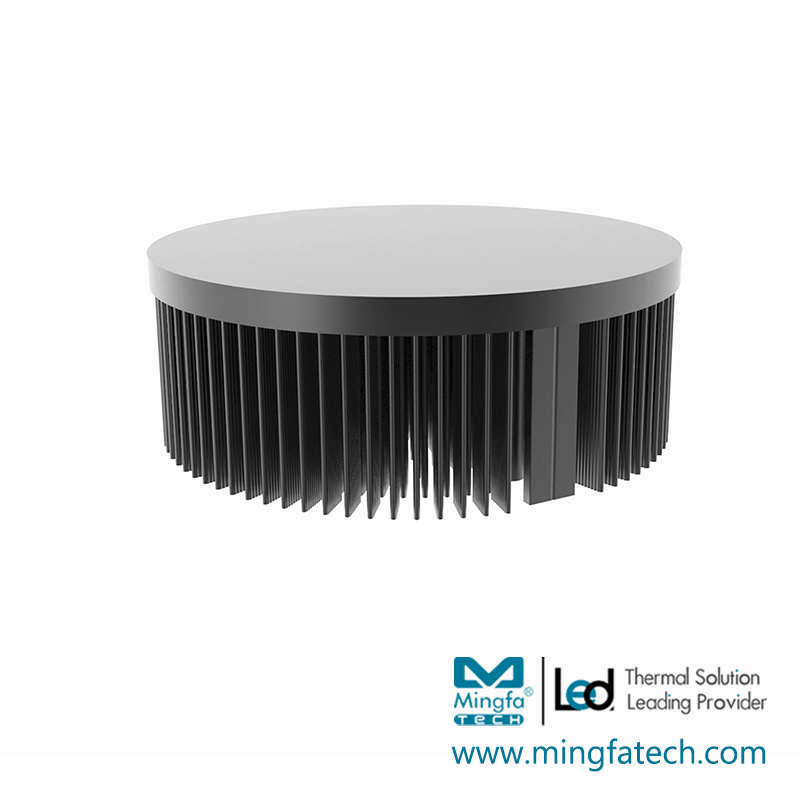

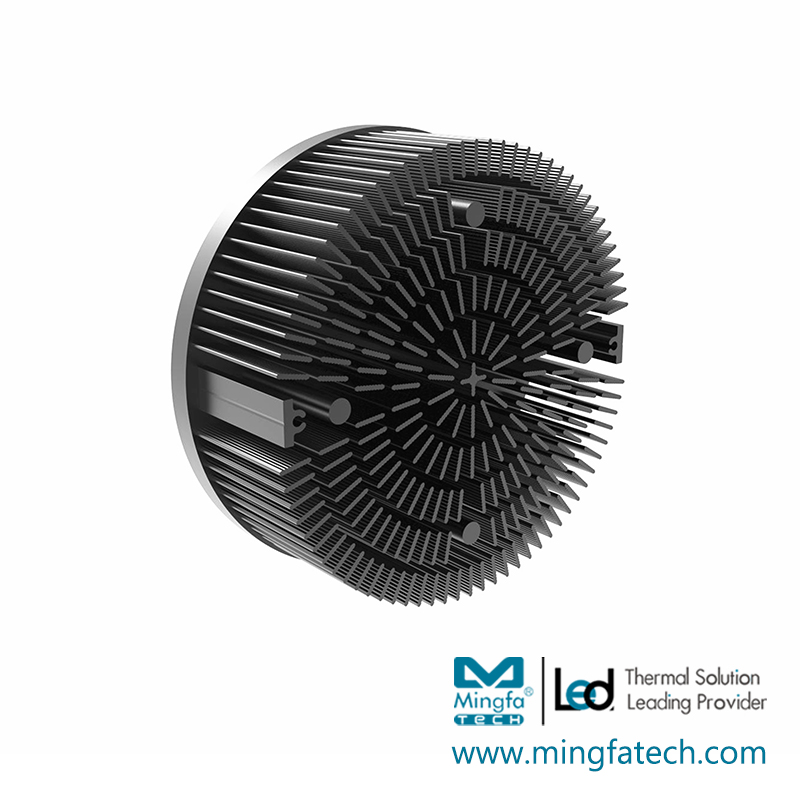

| Series Name | xLED passive heat sinks | ||
| Seriest Number | xLED-165 | ||
| Manufacturing Technology | Cold forging | ||
| Material | AL1070 | ||
| Color & Finishing | Black Anodized & Clear Anodized | ||
| Certification | CE, ROHS, WEEE | ||
| Diameter(mm) | Φ165 | ||
| Height(mm) | 30.0 | 60.0 | 100.0 |
| Item Number | xLED-16530 | xLED-16560 | xLED-165100 |
| Max. Lumen | 7700 Im | 12600 Im | 16800 Im |
| Dissipated Power (Ths-amb,50°C) | 55.0 W | 90.0 W | 120.0 W |
| Thermal Resistance Rth（°C/W) | 0.9°C/W | 0.5°C/W | 0.4°C/W |
| Cooling Surface Area (mm²) | 173714 mm² | 362363 mm² | 613892 mm² |
| Net Weight (g) | 830.0 g | 1200.0 g | 1700.0 g |
| Quantity(pcs/CTN) | 12 pcs | 9 pcs | 7 pcs |
| Modular Types | SMD | SMD | SMD |
| For Environments | Indoor area，Outdoor area | ||
| For Lightings | Down lights,Flood lights,Street lights,Architectural lights,Horticulture lights,Area Lights | ||
| For Application | Retail & Hospitality,Mall & Food ,Architectural & Museums,Office & Education,Station & Airport,Healthcare | ||
| For LED brands | Adura,Bridgelux,BJB,Citizen,Cree,Edison,GE,LG,Lumileds,Lumens,Luminus,Ledil,Nichia, Osram,Philips,Prolight Opto,Samsung,Seoul,Sharp,Tridonic,Vossloh Schwabe,Xicato,Zhaga | ||
