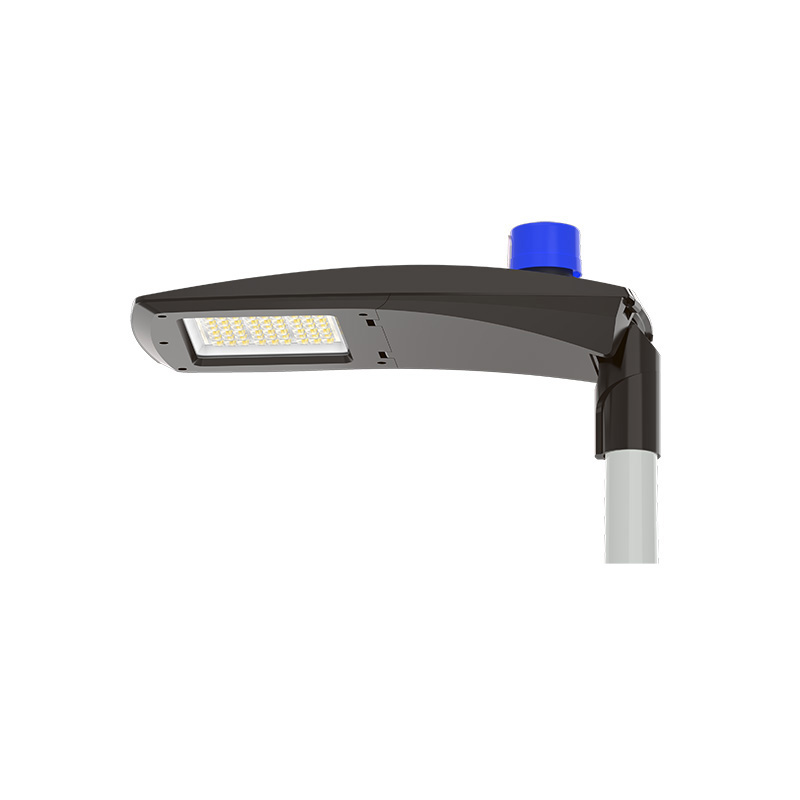

New design LED Street Light/Roadway light. ultra slim,high efficient and multi-beam angle availble.
◆ PRODUCT PARAMETER
| Data Specifications | STL series | |||||
| Power | 70W | 100W | 130W | 150W | 180W | 200W |
| Input Voltage | AC100-180V : 56W; AC200-305V : 70W; 50/60Hz | AC100-180V : 80W; AC200-305V : 100W; 50/60Hz | AC100-180V : 104W; AC200-305V : 130W; 50/60Hz | AC100-180V : 120W; AC200-305V : 150W; 50/60Hz | AC100-180V : 144W; AC200-305V : 180W; 50/60Hz | AC100-180V : 160W; AC200-305V : 200W; 50/60Hz |
| Output Voltage | DC45-48V | |||||
| color temperature | 4000-4500 /5500-6000K | |||||
| CRI | Ra>70 & Ra>80 | |||||
| Average Beam angle(50%) | 80X150°/85X150° | |||||
| Light Efficiency | whole lamp output 135-145lm/w | |||||
| Lumens | 70W：9800lm | 100W：14000lm | 130W：18200lm | 150W：21000lm | 180W：25200lm | 200W：28000lm |
| LED | 144pcs SMD3030 (LUMILED) | 216pcs SMD3030 (LUMILED) | 288pcs SMD3030 (LUMILED) | |||
| Driver | MEANWELL ELG-75-48 | MEANWELL ELG-100-48 | MEANWELL ELG-150-48 | MEANWELL ELG-240-48 | ||
| UGR | 20 | |||||
| Power Factor(Typ) | ≥0.95 | |||||
| Surge protection | 10KV/20KV | |||||
| IK rating | IK10 | |||||
| Wind resistance rating | >14 | |||||
| Operating Temperature | （-40～70 ℃）(Lowest operation temp -40°C, and highest 70°C) | |||||
| Ip rate | the waterproof grade IP65 ,can work outdoor under rain | |||||
| Life Span | 50000Hrs (L70B50>50,000hrs) | |||||
| Main Materials | High purity aluminum+LED+PC lens+Glass | |||||
| Operating Humidity | 20%～90% | |||||
| Storage Temperature | (-40～80 ℃) | |||||
| Lumen Maintenance | >85%（5000Hrs） | |||||
| Others | ||||||
| Replace Traditional lamp | 175W (HPS,MH,HID) | 250W (HPS,MH,HID) | 325W (HPS,MH,HID) | 375W (HPS,MH,HID) | 450W (HPS,MH,HID) | 500W (HPS,MH,HID) |
| Energy Saving | 40% | |||||
| Temperature on housing Max | 62.8°C (Test environment temperature 25 °C) | 73.8 °C (Test environment temperature 25 °C) | 67.0 °C (Test environment temperature 25 °C) | 72.9 °C (Test environment temperature 25 °C) | 75.1 °C (Test environment temperature 25 °C) | 75.5 °C (Test environment temperature 25 °C) |
| Temperature on LED Max | 73.3°C (Test environment temperature 25 °C) | 84.2 °C (Test environment temperature 25 °C) | 85.4 °C (Test environment temperature 25 °C) | 85.6 °C (Test environment temperature 25 °C) | 89.6 °C (Test environment temperature 25 °C) | 86.1°C (Test environment temperature 25 °C) |
| Temperature on Driver Max | 49.8°C (Test environment temperature 25 °C) | 52.8 °C (Test environment temperature 25 °C) | 65.5 °C (Test environment temperature 25 °C) | 58.5 °C (Test environment temperature 25 °C) | 59.8 °C (Test environment temperature 25 °C) | 68.0 °C (Test environment temperature 25 °C) |
| Net weight | 4.8 Kgs (without package) | 4.8 Kgs (without package) | 6 Kgs (without package) | 6 Kgs (without package) | 7.2 Kgs (without package) | 33 Kgs (without package) |
| Gross Weight(Kgs) | 6.2 Kgs (with package) | 6.2 Kgs (with package) | 7.6 Kgs (with package) | 7.6 Kgs (with package) | 8.8 Kgs (with package) | 36 Kgs (with package) |
| Package Size | 640x320x145mm | 640x320x145mm | 720x360x145mm | 720x360x145mm | 770x390x145mm | 705x910x175mm |
| Installations | Horizontal or vertical mounting available | |||||
◆ PRODUCT SIZE
◆ PRODUCT DETAILS

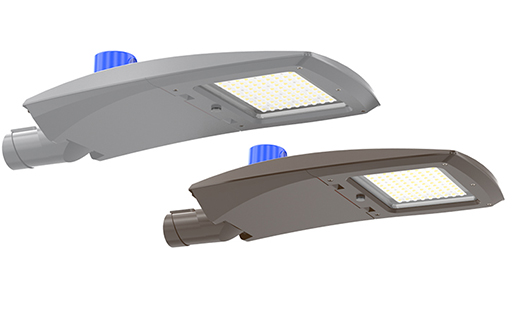

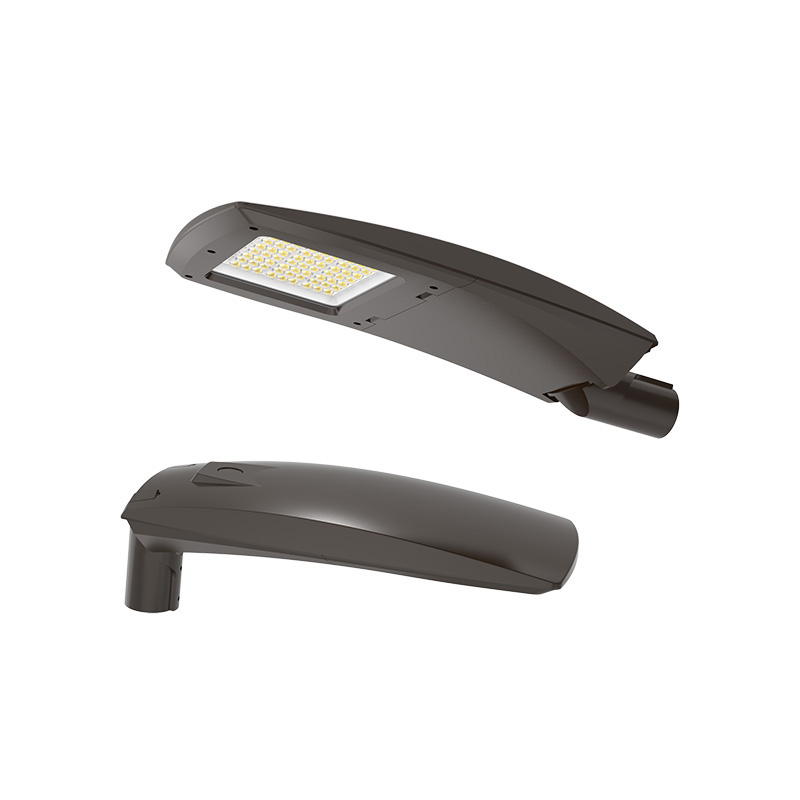

Surface electrostatic spraying high thermal conductivity,corrosion resistance. Aluminum alloy,integrated molding,better heat efficiency.

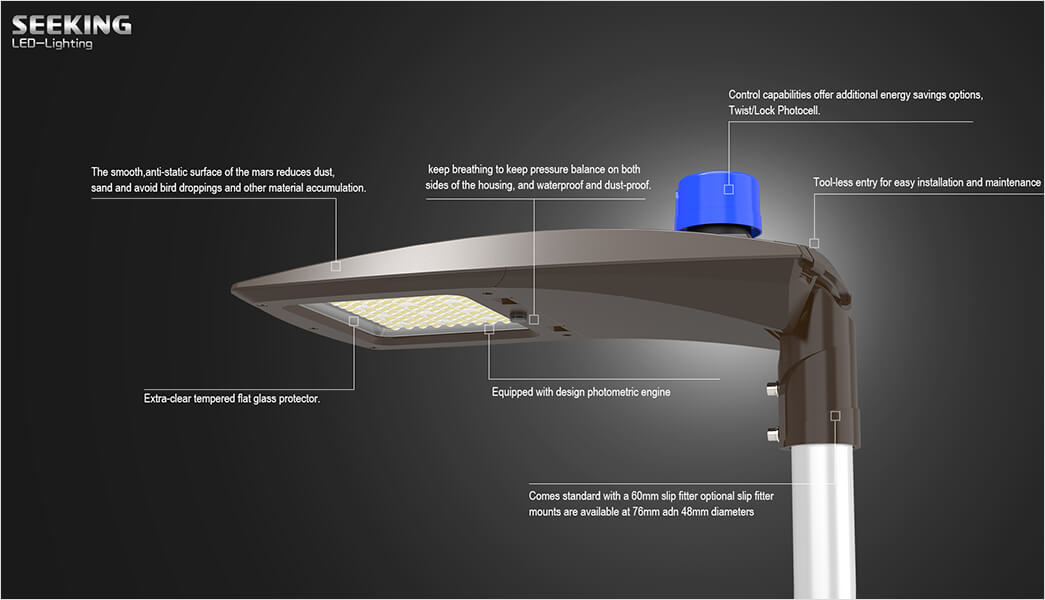

The smooth,anti-static surface of the mars reduces dust, sand and avoid bird droppings and other material accumulation.
Tool-less entry for easy installation and maintenance, It is faster and more professional in disassembly and maintenance.

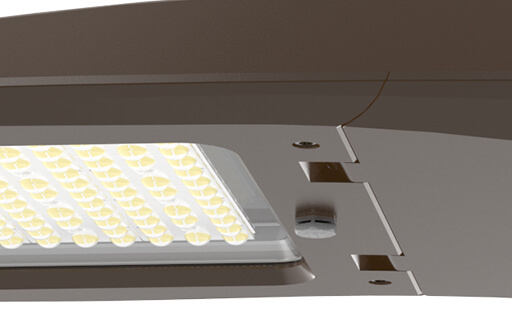

Keep breathing to keep pressure balance on both sides of the housing,and waterproof and dust-proof.

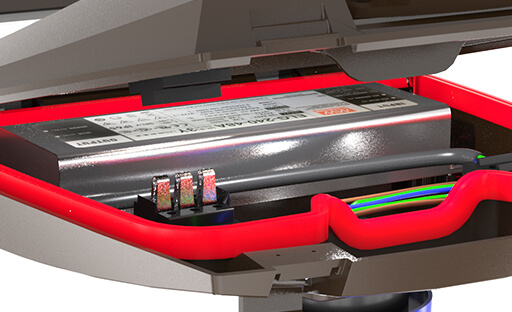

The electric isolating switch is professional, safe and convenient to install. The cover of the street lamp can be closed, and the electric isolating switch can close the electrifying work without manual wiring.

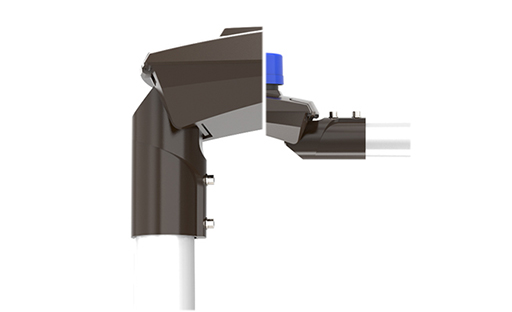

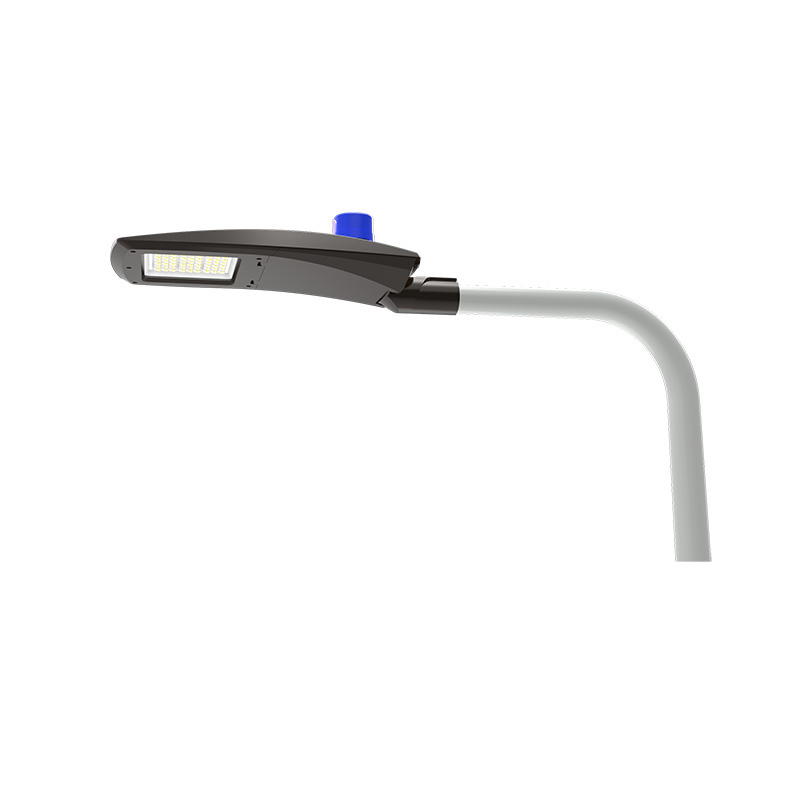

Horizontal and vertical installation for optional; Adjustable tilt angle: 0-15°.

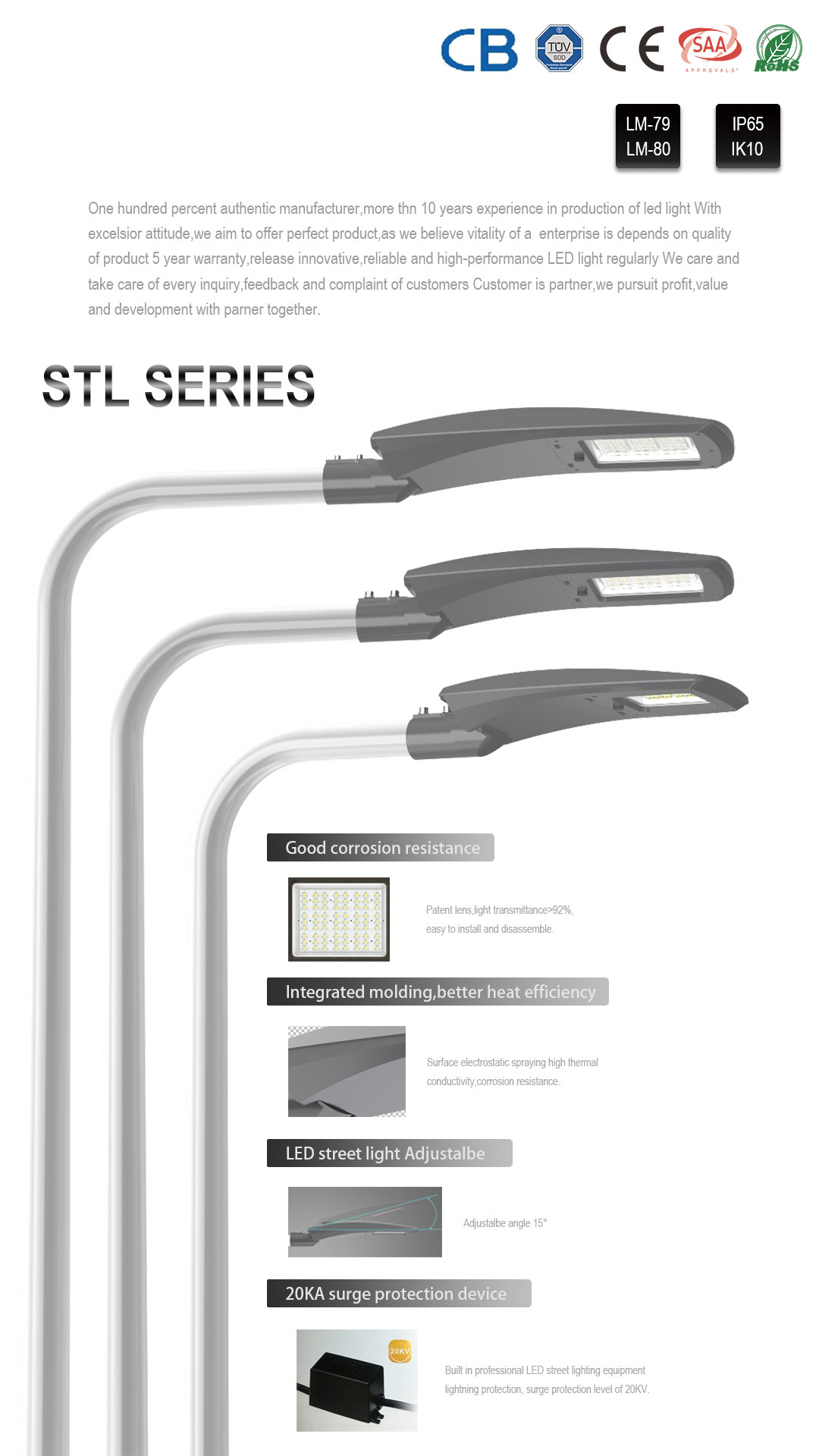

◆ PRODUCT ADVANTAGE

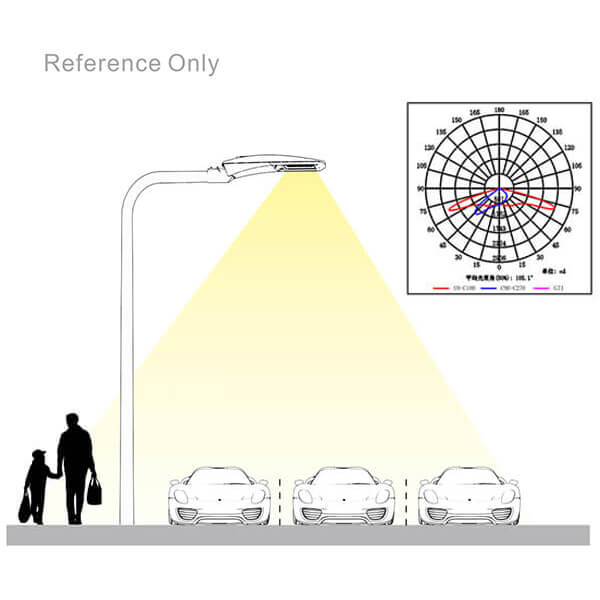

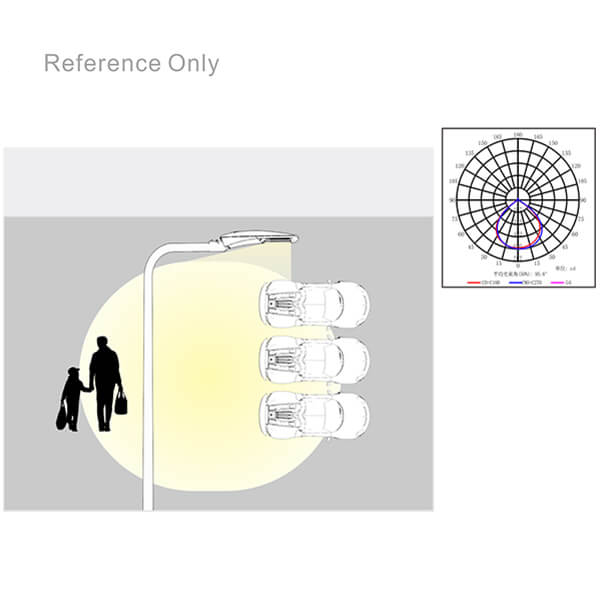

◆ DISTRIBUTION MAP
Applications:
Three Driveway | Highway | Parking Lot / Area
Applications:
Three Driveway | Driveway Entrance | Urban Road
Applications:
Parking Lot / Area | Square | Area
◆ PRODUCT EXPLOSIVE VIEW
