| Model | EGB-12LT50, EGB-12LT30 |
| Material | Aluminum |
| Cooling power | Max.1500W |
| Cooling Surface Area (mm²) | 57600mm² |
| Matching optics | 20°、40°、60°、90°、120°、TypeII |
| Protection level | IP65 |
| Crafts | Stamping & Fining |
| Color & Finishing | Silver + black Power coating |
| Weight | 29.9kg |
| Quantity | 1PCS/Box |
| Package dimensions | 772*1024*421mm |
| Typical applications | High pole light, Industrial lighting, Coliseum lighting, Golf Course lighting, Harbor lighting |
Prdouct Description

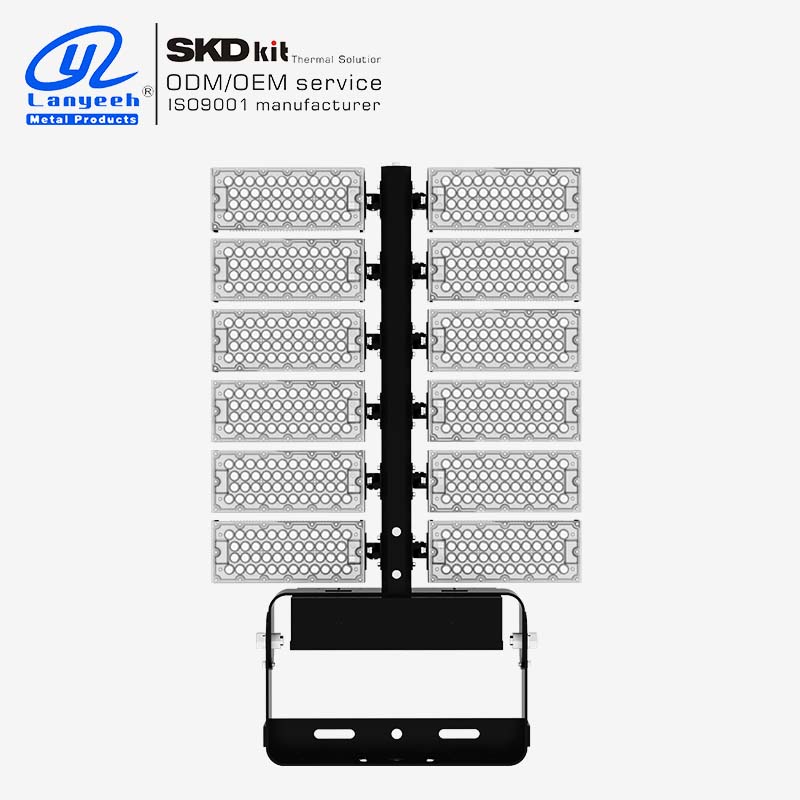

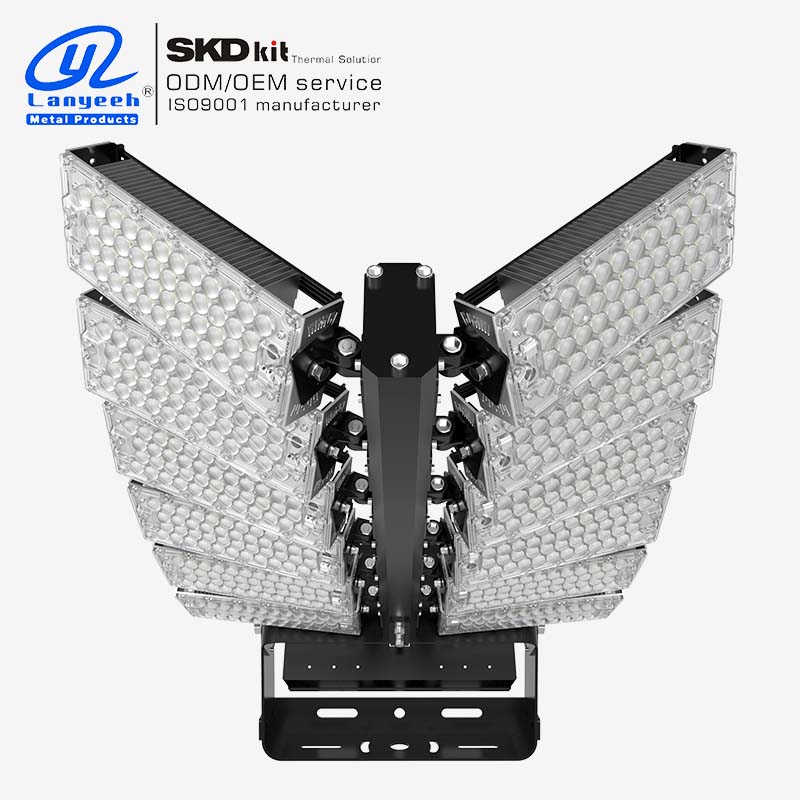

EGB-12LT Heatsinks

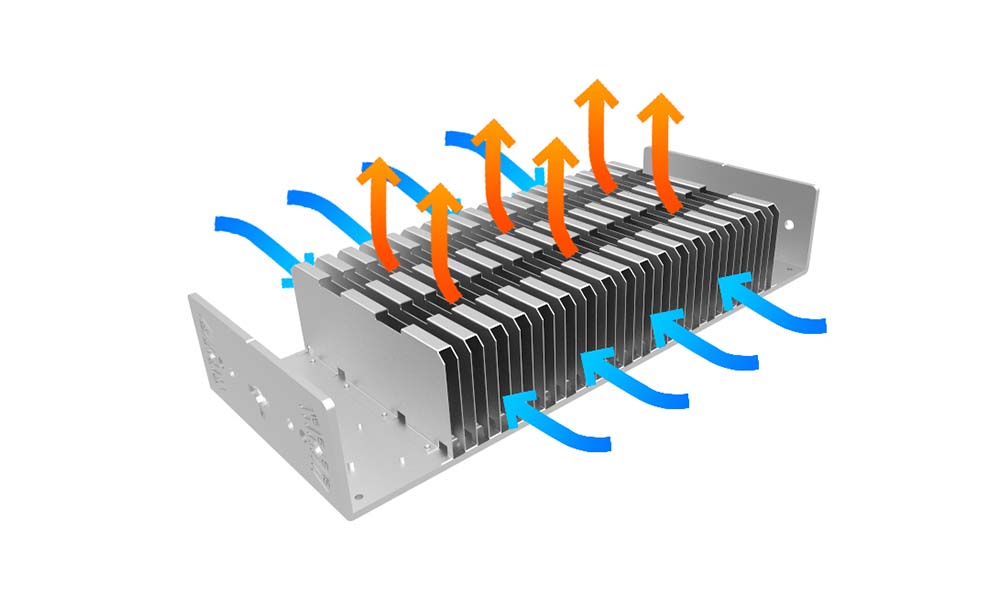

The EGB heatsinks offer lower thermal resistance than traditional extruded, cold forged, and die-cast heatsinks. The high aspect ratio fin has good heat transfer capability. The lightweight heatsinks have a flexible design and high thermal conductivity, suitable for LED lighting applications.
UPGRADABLE LED MODULE
The modular construction of LED engines, drivers and other accessories ensures the upgradability of our luminaires.
Features
LANYEEH is committed to creating high-quality, reasonably priced, well-designed LED lighting enclosures that allow you to easily install and save end users money and labor.
◈ Excellent thermal performance
◈ Large heatsink surface and lightweight
◈ High thermal conductivity aluminum alloy

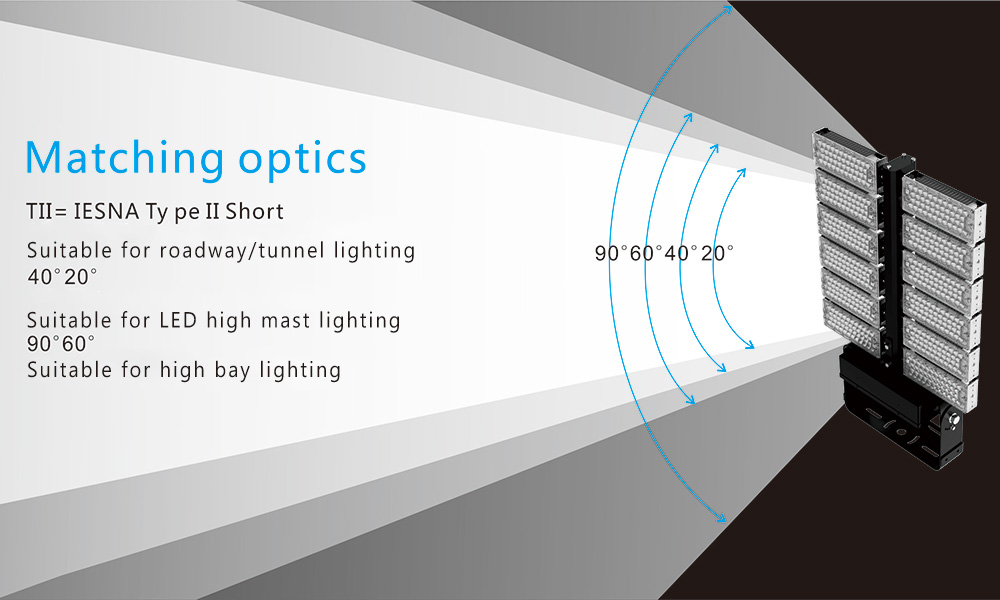

Matching optics
Put light where it’s needed.
Darkoo's spec-grade optics are designed to offer Type II, 20°，40°，60°，90°and 120° to ensure you get the light where it's needed most.

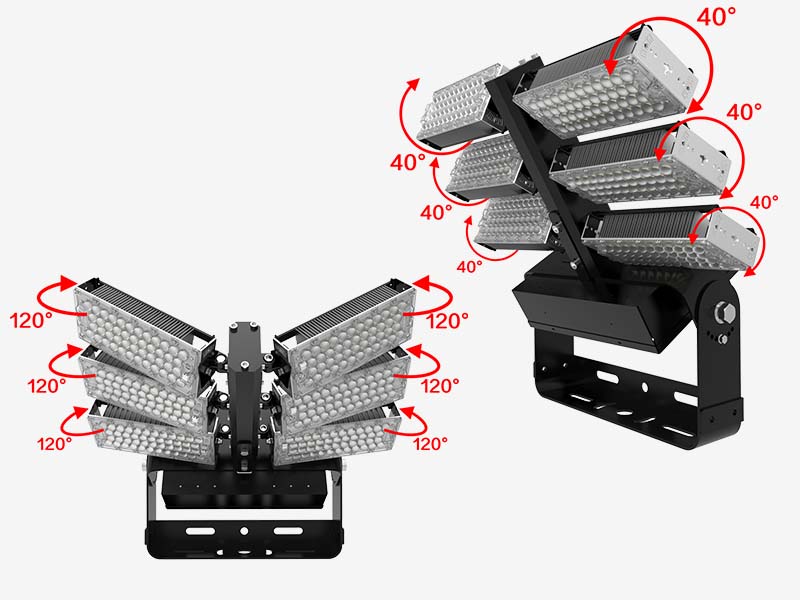

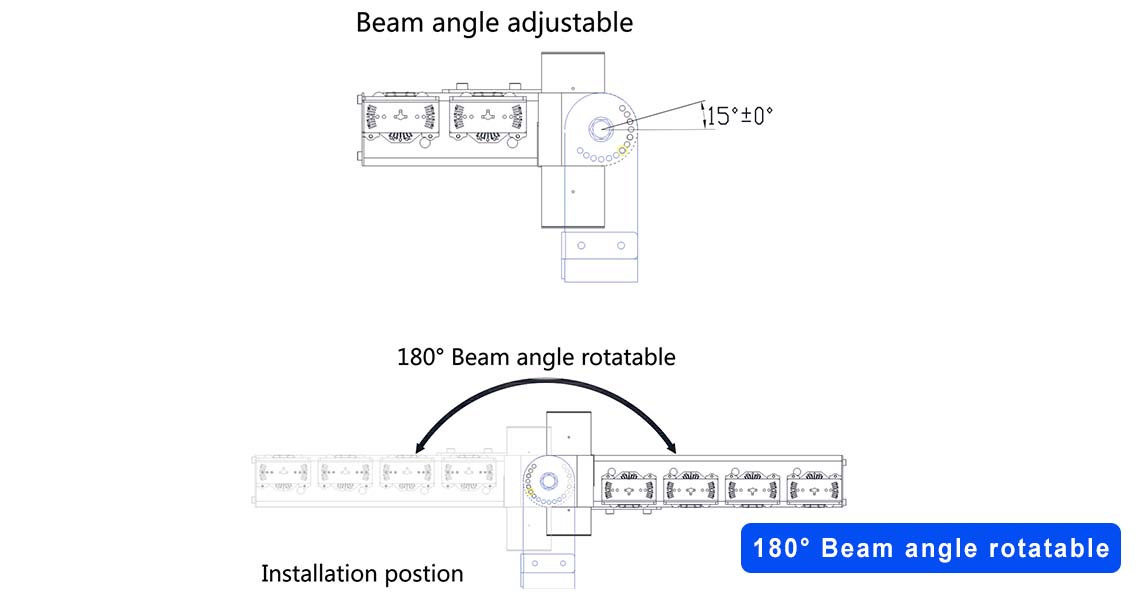

The modular heat sink is assembled on the main aluminium alloy pole in the middle as a whole fixture kit. Each modular heat sink could be rotated up and down and moved from side to side. This design can enlarge the lighting area.

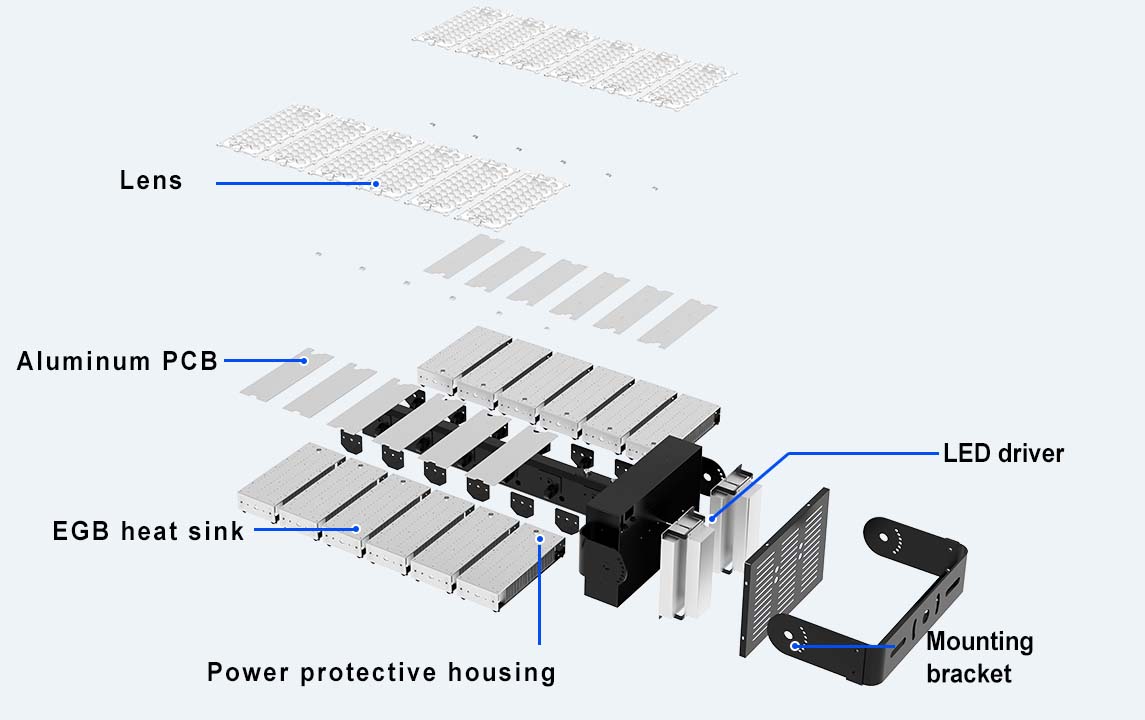

Product Structure
