| Model | SFM-28LT50、SFM-40LT30、SFM-64LT30、SFM-84LT30 |
| Material | Aluminum |
| Cooling power | Max.60W |
| Thermal conductivity | 209W/K.m |
| Cooling Surface Area (mm²) | 1800 CM² |
| Matching optics | 20°、40°、60°、90°、120°、TypeII |
| Protection level | IP67 |
| Crafts | Stamping & Riveting |
| Color & Finishing | Power coating |
| Weight | 0.57 Kg |
| Quantity | 1PCS/Box 20Box/CTN 48CTN/Pallet |
| Box size | 772*1024*421mm |
| CTN size | 530*325*185 mm |
| Typical applications | Roadway，Street Light，Parking Lot，Tunnel Light |
Prdouct Description
Designed to be used with the LFM modules engine , SFM 30-W heat sink is part of the ecosystem of parts for the LFM LED module engine family to help lighting manufacturers speed their time to market.
Lanyeeh Led modules heat sinks provide a The luminaire designs, regardless of the emissions lumens, require the additional heat dissipation that can be provided by a heat sink.
Features
LANYEEH is committed to creating high-quality, reasonably priced, well-designed LED lighting enclosures that allow you to easily install and save end users money and labor.

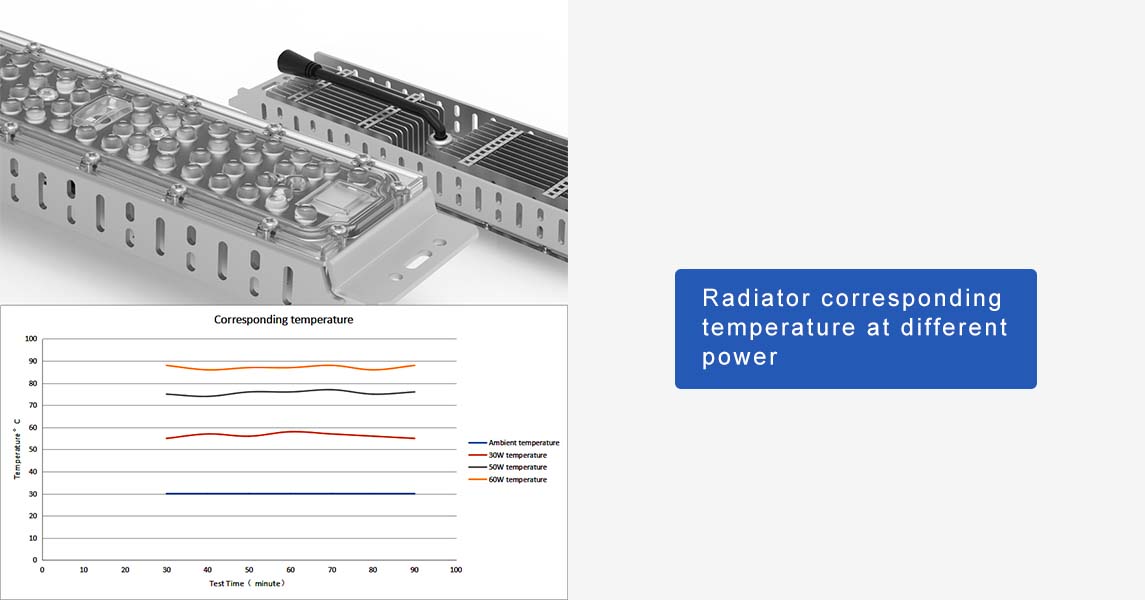

◈ Radiator corresponding temperature at different power
In order to adapt to a variety of application environments, there are a variety of optical options, 20 °, 40 °, 60 °, 90 °, 120 °, Type II
The lens is an optical PC material with a light extraction efficiency of up to 94%.
Anti-aging, anti-UV, quality assurance 5 years

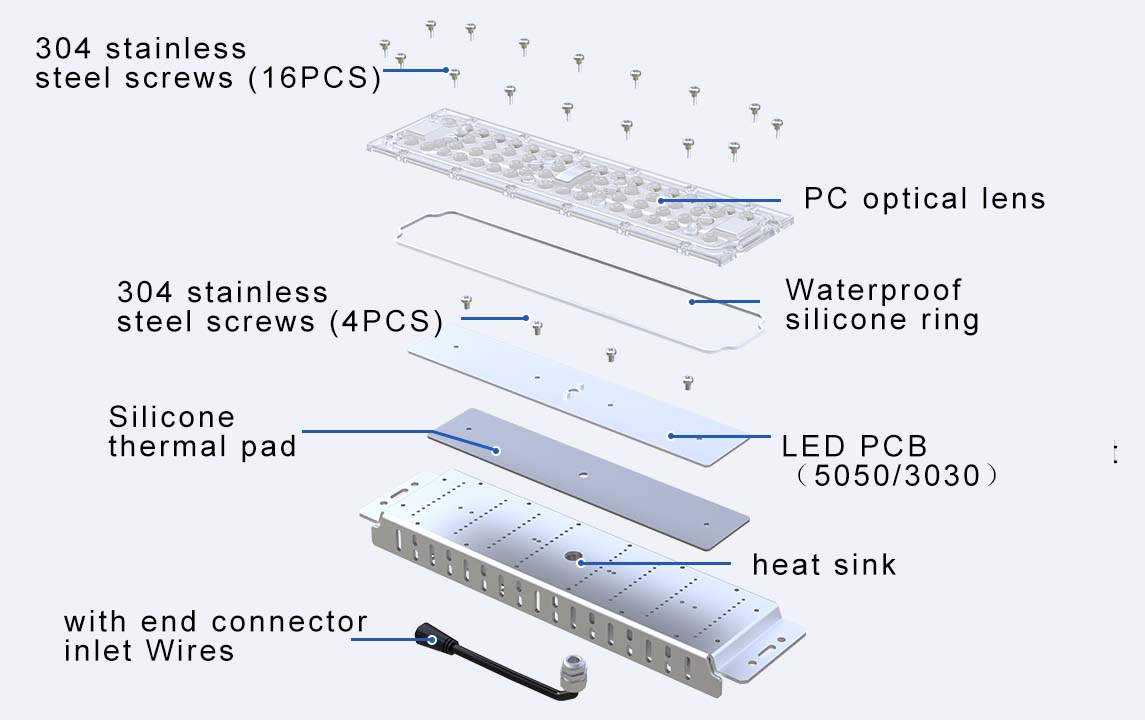

Product Structure
