Product parameters
| FLIP CHIP | 4046 SERIES | ||
| POWER | 40W-60W | 80W-120W | 150W-200W |
| CCT | 2700-6500K | 2700-6500K | 2700-6500K |
| LM/W | 120-140 | 120-140 | 110-130 |
| IF | 1350-2700mA | 2500-4500mA | 2500-4500mA |
| VF | 30-33V | 30-33V | 42-48V |
| WHOLE SIZE | 40X46MM | 40X46MM | 40X46MM |
| EMIT SIZE | 25MM | 25MM | 25MM |
| VIEW ANGLE | 120° | ||
| CRI | 70/80 | ||
| SUBSTRATE | Super-Aluminum | ||
Note:
A.PRICE IS WITHOUT VAT.
B.EX-WORK QUOTE BASE,SHIPPING COST IS NOT INCLUDED.
C.WARRANTY IS 3 YRS.
D.PREPAID IS REQUIRED ONCE ORDER CONFIRMED,TT BALANCE ONCE READY TO SHIPPING.
E.PRODUCTION CYCLE IS 7-10 WORK DAYS.
F.OEM & ODM IS ACCEPTABLE.

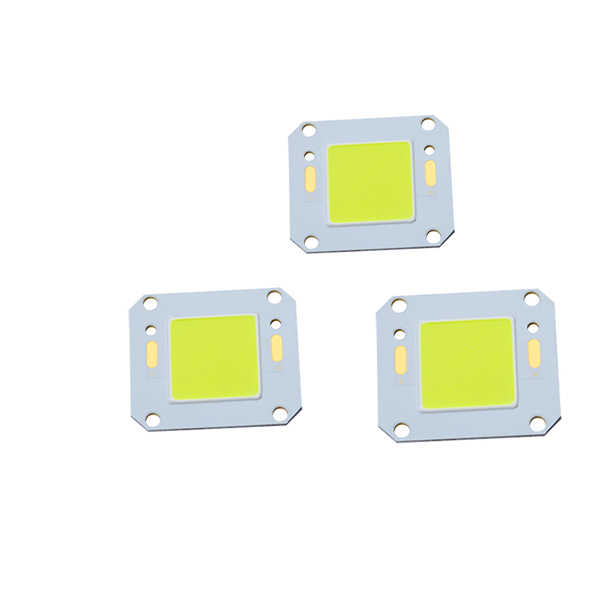

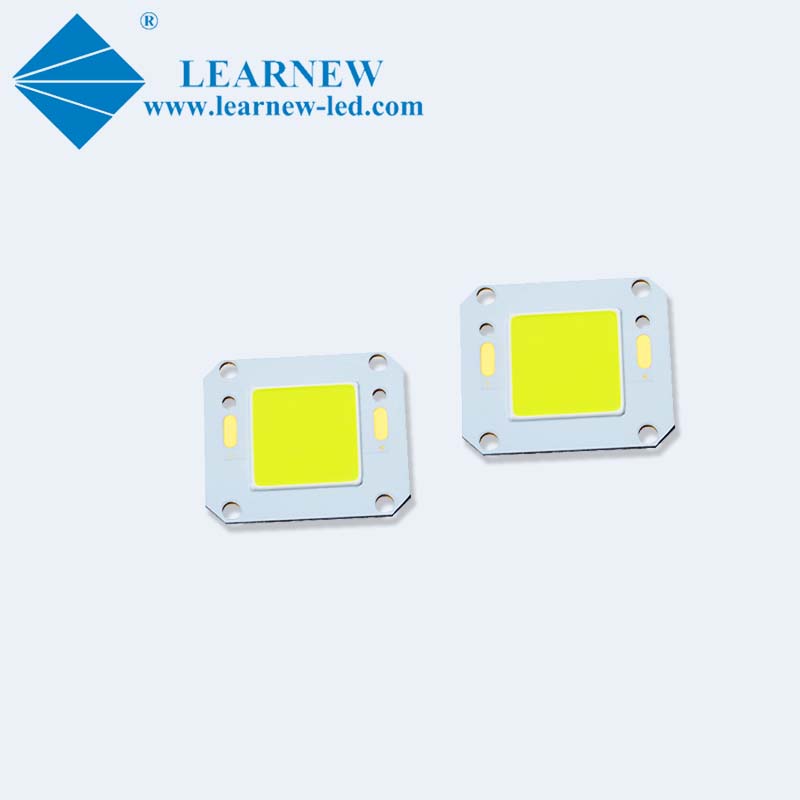

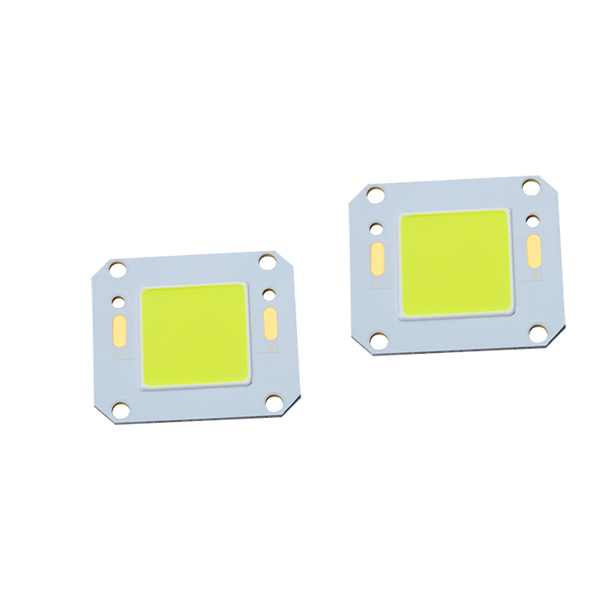

Product Details
Product application
