Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- WGP
- Model Number:
- UPS901B-06
- Phase:
- 9V
- Protection:
- Short Circuit
- Weight:
- 345g
- Output Voltage:
- 9V DC
- Type:
- OFFline, 9V dc ups
- Application:
- Networking
- Capacity:
- 7800mAh
- Input:
- DC 9V
- Certificate:
- RoHS/PSE/FCC
- Size:
- 111x60x43mm
- UPS IN jack:
- 5.5*2.1mm
- DC cable:
- 5.5*2.5mm~5.5*2.1mm
- Working temperature:
- -20°C~65°C
- Accessory:
- 9V EU power adapter
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 14X7X5 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- carton box

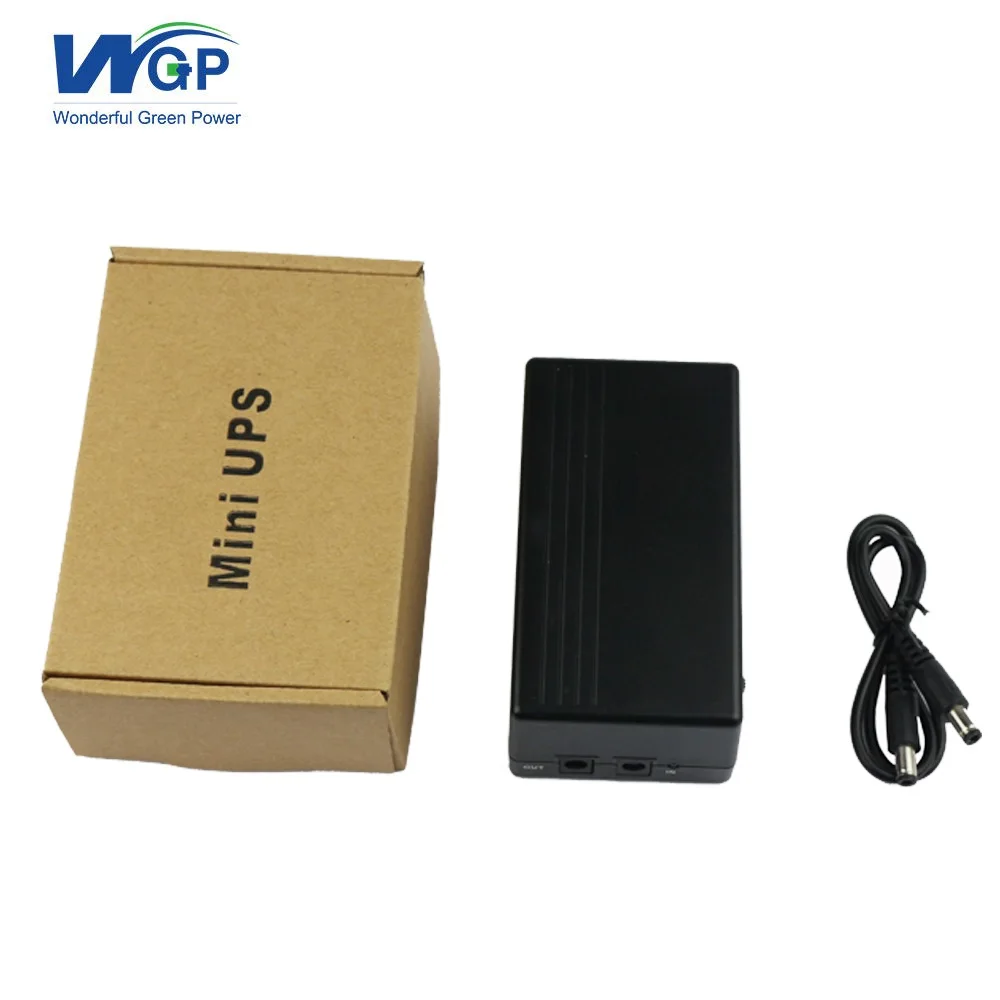

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 15 To be negotiated
small 9V lithium ion battery powered 9V power bank battery with power supply
Mini DC UPS uninterruptible power supply is a standby energy storage power supply.
Used safe and environmental lithium cells, credible and stable PCB;
trickle/constant-current/ constant-voltage lithium battery charging BMS.
Created by high performance and efficiency DC-DC, boosting and switching circuit.This mini UPS with perfect over-charged, over-discharged, over-current and short-circuit protection.
| Model | UPS901B-06 |
| Type | 9V mini ups |
| Input | 9V DC |
| Output | 9V 1000mA |
| Working temperature | -20°C~65°C |
| Weight | ≤345g |
| Size | 111x60x43mm |

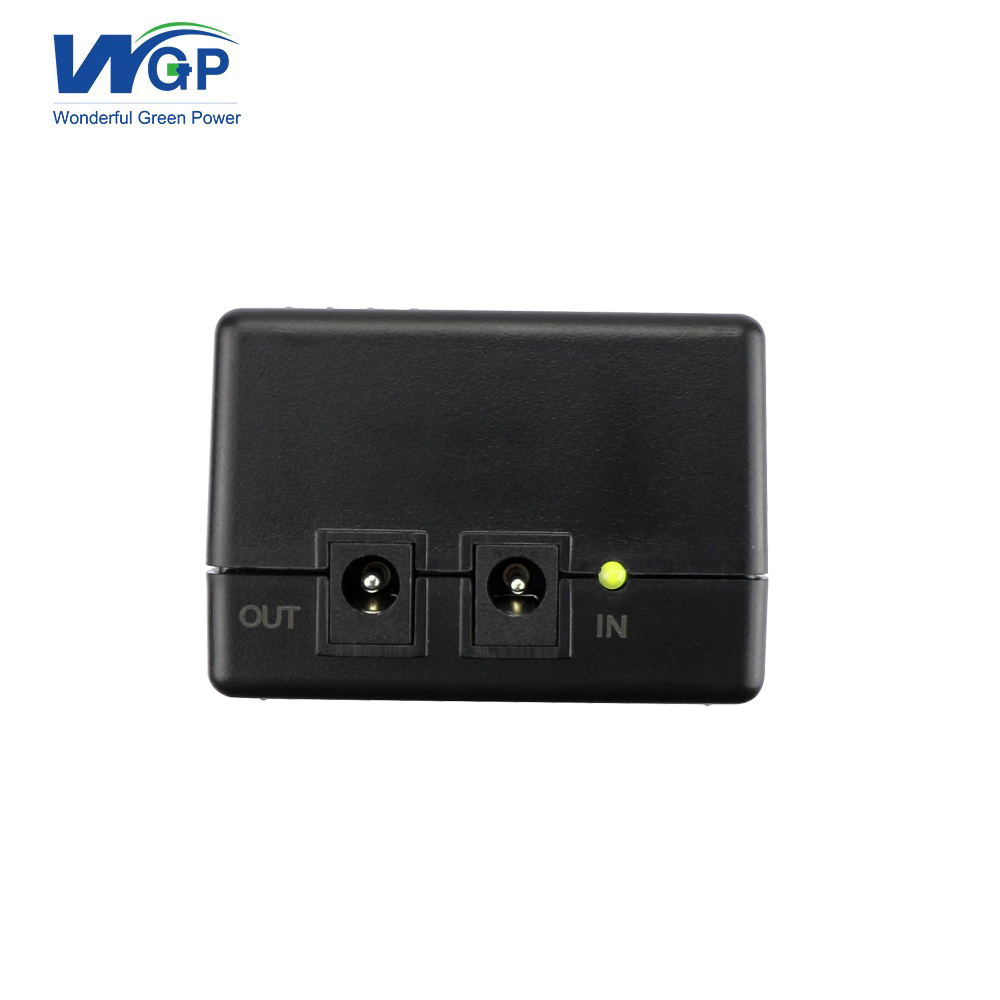

| UPS IN jack | 5.5*2.1mm,OUT:5.5*2.5mm |
| DC cable | 5.5*2.5mm~5.5*2.1mm |
| Battery capacity | 7800mAh/57.72wh |
| Warranty | 1 year |
| Certification | RoHS,FCC,PSE |
Smart 9V 1A big capacity mini dc ups widely use for fingerprint attendance machine, Fire safety system, security monitoring system, wireless camera, CCTV camera ,personal treatment system,Door security system, personal data assistant, emergency lighting, Alarm system, personal communication systems, radio, digital cameras, camcorders, video camera, Bluetooth devices, CD players, MD players, portable DVD, MP3 players, smart cards.
Packing list: 9V 1A 57.72wh ups battery*1pcs + 9V EU power adapter*1pcs + DC cable*1pcs
If want this 9V mini ups for business sample, please contact Philip in the last.
Q:What"s the type of ups?
A:It"s a mini on-line ups.
Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.
Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.
Q:What"s the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What"s the device you plan to use?
2.What"s the working voltage and current?
3.What"s your expected backup time?
Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months
Notice:More questions,please contact with me right now,we will choose the right model to you!
